Material ID: 6ES7135-6HB00-0DA1
- SIMATIC ET 200SP Analog output module AQ 2x U/I High Speed
- Suitable for BU type A0, A1
- Color code CC00
- Channel diagnostics
- 16 bit, +/-0.2%
- Space-saving design for easy commissioning
- Approved for degree of protection IP20 and installation in compact control boxes
- Multi hot swapping feature for quick and simple module replacement
- Wide range of communication methods with MultiFieldbus interface module IM155-6MF
- Standardized identification system with equipment labeling plates and color-coded connector assignments
- Integration of innovative, long-life automation products for future-proof investment
- Consistent data availability, flexible use cases, and versatile integration options for optimum performance
- Scalable, cost-optimized configuration with a wide range of signal modules
- Fail-safe variants available for applications up to SIL 3/PLe, including motor starters for motors up to 5.5 kW
Additional Information
Support
Technical Data
Manuals / Links
Thông số kỹ thuật
| FEATURE | VALUE |
| Radio standard GPRS | false |
| Supporting protocol for Data-Highway | false |
| Suitable for safety functions | false |
| Rack-assembly possible | true |
| IO link master | false |
| Radio standard Bluetooth | false |
| Supporting protocol for ASI | false |
| Supply voltage DC | 28.8 V |
| Voltage type (supply voltage) | DC |
| Appendant operation agent (Ex ia) | false |
| Supporting protocol for TCP/IP | false |
| Output, current | true |
| Wall mounting/direct mounting | false |
| Supporting protocol for Foundation Fieldbus | false |
| Rail mounting possible | true |
| System accessory | true |
| Supporting protocol for Modbus | false |

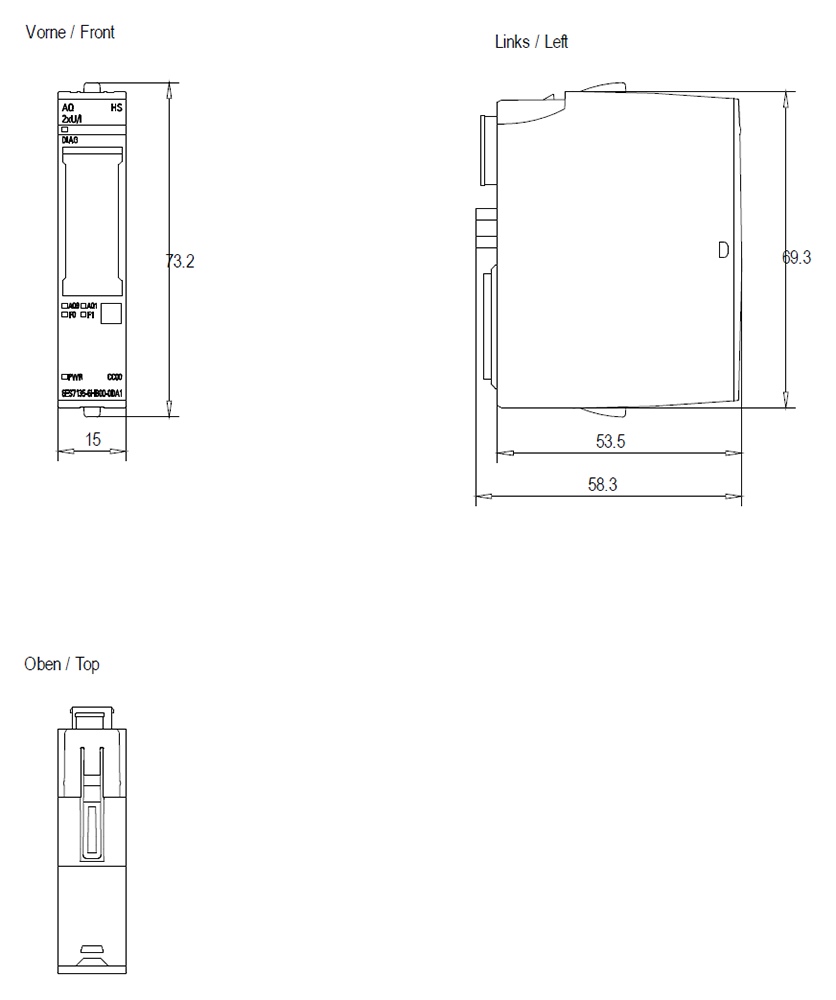

| Height | 73 mm |
| Depth | 58 mm |
| Supporting protocol for AS-Interface Safety at Work | false |
| Supporting protocol for EtherNet/IP | false |
| Front built-in possible | true |
| Supporting protocol for PROFINET CBA | false |
| Supporting protocol for PROFINET IO | false |
| Supporting protocol for other bus systems | false |
| Supporting protocol for SERCOS | false |
| Number of analogue outputs | 2 |
| Supporting protocol for KNX | false |
| Supporting protocol for DeviceNet Safety | false |
| Supporting protocol for CAN | false |
| Supporting protocol for SafetyBUS p | false |
| Supporting protocol for INTERBUS | false |
| Resolution of the analogue outputs | 16 Bit |
| Supporting protocol for LON | false |
| Supply voltage DC | 19.2 V |
| Radio standard UMTS | false |
| Appendant operation agent (Ex ib) | false |
| Output, voltage | true |
| Degree of protection (IP) | IP20 |
| Radio standard GSM | false |
| Supporting protocol for SUCONET | false |
| Radio standard WLAN 802.11 | false |
| Fieldbus connection over separate bus coupler possible | true |
| Supporting protocol for PROFIsafe | false |
| Supporting protocol for PROFIBUS | false |
| Supporting protocol for DeviceNet | false |
| Output signal configurable | true |
| Width | 15 mm |
| Analogue outputs configurable | true |
| Supporting protocol for INTERBUS-Safety | false |
