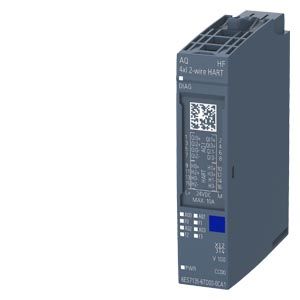

Material ID: 6ES7135-6TD00-0CA1
- SIMATIC ET 200SP, analog HART output module, AQ 4xI HART High Feature
- Suitable for BU type A0, A1, color code CC00
- Channel diagnostics, 16 bit, +/-0.3%
- Approved for degree of protection IP20 and for installation in a compact control box
- Multi hot swapping feature allows for quick and simple module replacement
- Wide range of different and fast communication methods available
- Integrated MultiFieldbus interface module IM155-6MF supports multiple Ethernet protocols
- Standardized identification system based on equipment labeling plates and color-coded connector assignments
- Future-proof investment due to integration of innovative and long-life automation products
- Consistent data availability, flexible use cases, and versatile integration options ensure optimum performance of ET 200 products
- Scalable, cost-optimized configuration of an ET 200SP station with a wide range of signal module
- Fail-safe variants available for applications up to SIL 3
Additional Information
Support
- FAQ
- Siemens Support Portal
- Siemens EcoTechProfil (SEP)
- Application Example
- Sales Brochure
- 3D PDF
Technical Data
Manuals / Links
Thông số kỹ thuật
| FEATURE | VALUE |
| Rail mounting possible | true |
| Wall mounting/direct mounting | false |
| Supporting protocol for SafetyBUS p | false |
| Output signal configurable | true |
| Supporting protocol for CAN | false |
| Height | 73 mm |
| Supporting protocol for EtherNet/IP | false |
| Radio standard GPRS | false |
| Supporting protocol for SERCOS | false |
| Supporting protocol for DeviceNet Safety | false |
| Depth | 58 mm |
| Supporting protocol for AS-Interface Safety at Work | false |
| Radio standard GSM | false |
| Analogue outputs configurable | true |
| System accessory | true |
| Suitable for safety functions | false |
| Supporting protocol for PROFIsafe | false |
| Supply voltage DC | 28.8 V |
| Rack-assembly possible | true |
| Supporting protocol for Modbus | false |
| Radio standard Bluetooth | false |
| Fieldbus connection over separate bus coupler possible | true |
| Supporting protocol for INTERBUS | false |
| Width | 15 mm |
| Supporting protocol for KNX | false |
| Supporting protocol for LON | false |
| Radio standard WLAN 802.11 | false |
| Number of analogue outputs | 4 |
| Supporting protocol for PROFINET CBA | false |
| Supporting protocol for TCP/IP | false |
| Supporting protocol for INTERBUS-Safety | false |
| IO link master | false |
| Radio standard UMTS | false |
| Voltage type (supply voltage) | DC |
| Front built-in possible | true |
| Supply voltage DC | 19.2 V |
| Supporting protocol for SUCONET | false |
| Supporting protocol for Foundation Fieldbus | false |
| Supporting protocol for ASI | false |
| Supporting protocol for DeviceNet | false |
| Supporting protocol for Data-Highway | false |
