Material ID: 6ES7135-7TD00-0AB0

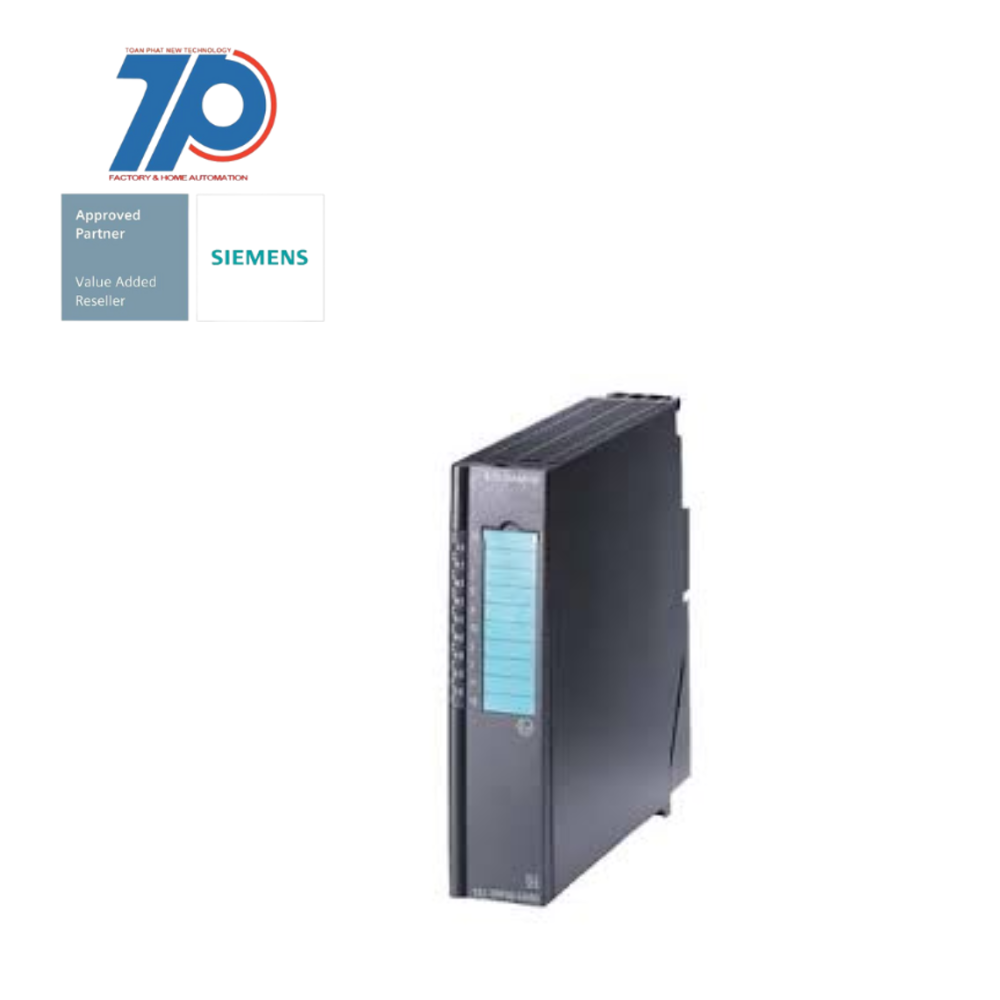

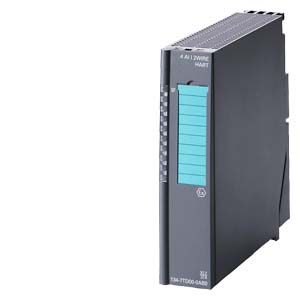

SIMATIC DP Electronic Module for ET200iSP

This electronic module is designed for the ET200iSP system and offers advanced features for connecting HART field devices.

Technical Features:

Commercial Benefits:

    • 4 AO HART: This module supports 4 analog output channels for HART field devices.
    • 4 - 20mA: The analog output channels operate within the 4-20mA range.
    • HART Protocol Version 6.0: The module is compatible with HART protocol version 6.0.
    • Ex ib (ia Ga) IIC T4 Gb: This module is certified for use in hazardous areas with explosive atmospheres (gas) and has a maximum surface temperature of T4.
    • Ex ib [ia IIIC Da] IIC T4 Gb: The module is also certified for use in hazardous areas with explosive dust atmospheres (dust) and has a maximum surface temperature of T4.
    • Ex ib [ia] I Mb: Additionally, this module is certified for use in hazardous areas with intrinsically safe circuits.
    • Enhanced Connectivity: The module enables seamless connection to HART field devices, allowing for efficient data exchange.
    • Flexible Analog Output: With 4 AO channels, this module provides flexibility in controlling and monitoring HART field devices.
    • Compliance with Safety Standards: The module is certified for use in hazardous areas, ensuring compliance with safety regulations.
    • Reliable Performance: Designed for industrial environments, this module delivers reliable and accurate performance.
Additional Information

Support

Technical Data

Manuals / Links







Thông số kỹ thuật
FEATUREVALUE
Supporting protocol for Data-Highwayfalse
Supply voltage DC28.8 V
Number of analogue inputs0
Output, currenttrue
Supporting protocol for DeviceNetfalse
Rack-assembly possiblefalse
Number of HW-interfaces RS-4220
Number of interfaces PROFINET0
Rail mounting possibletrue
Number of HW-interfaces serial TTY0
Supporting protocol for Foundation Fieldbusfalse
Supporting protocol for SUCONETfalse
Supporting protocol for SafetyBUS pfalse
Suitable for safety functionsfalse
Output signal configurabletrue
Radio standard Bluetoothfalse
Radio standard WLAN 802.11false
Supporting protocol for PROFINET CBAfalse
Number of HW-interfaces other0
Output, voltagefalse
Number of HW-interfaces USB0
IO link masterfalse
Supporting protocol for TCP/IPfalse
Resolution of the analogue outputs14 Bit
Supporting protocol for AS-Interface Safety at Workfalse
Supporting protocol for LONfalse
Supply voltage DC20.4 V
Number of HW-interfaces RS-2320
Degree of protection (IP)IP30
Number of analogue outputs4
Supporting protocol for ASIfalse
Supporting protocol for INTERBUSfalse
Supporting protocol for other bus systemsfalse

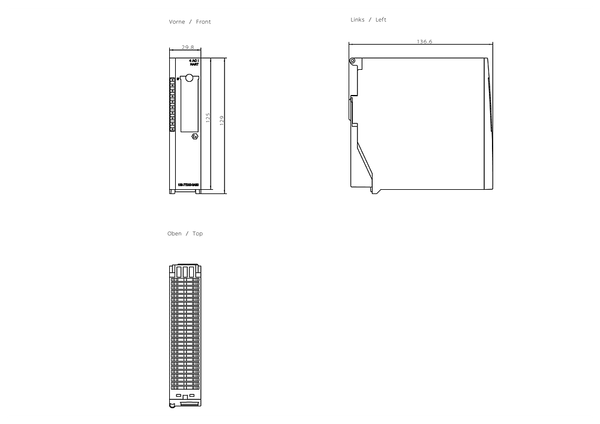

Depth136.5 mm
Radio standard GSMfalse
Width30 mm
Supporting protocol for Modbusfalse
Supporting protocol for PROFIBUSfalse
Supporting protocol for PROFINET IOfalse
System accessorytrue
Fieldbus connection over separate bus coupler possibletrue
Supporting protocol for PROFIsafefalse
Radio standard UMTSfalse
Number of HW-interfaces parallel0
Analogue outputs configurabletrue
Number of HW-interfaces RS-4850
Appendant operation agent (Ex ib)true
Front built-in possibletrue
Wall mounting/direct mountingfalse
Appendant operation agent (Ex ia)true
Supporting protocol for SERCOSfalse
Voltage type (supply voltage)DC
Supporting protocol for INTERBUS-Safetyfalse
Supporting protocol for EtherNet/IPfalse
Supporting protocol for KNXfalse
Supporting protocol for CANfalse
Number of HW-interfaces wireless0
Supporting protocol for DeviceNet Safetyfalse
Height129 mm
Radio standard GPRSfalse
Number of HW-interfaces industrial Ethernet0
