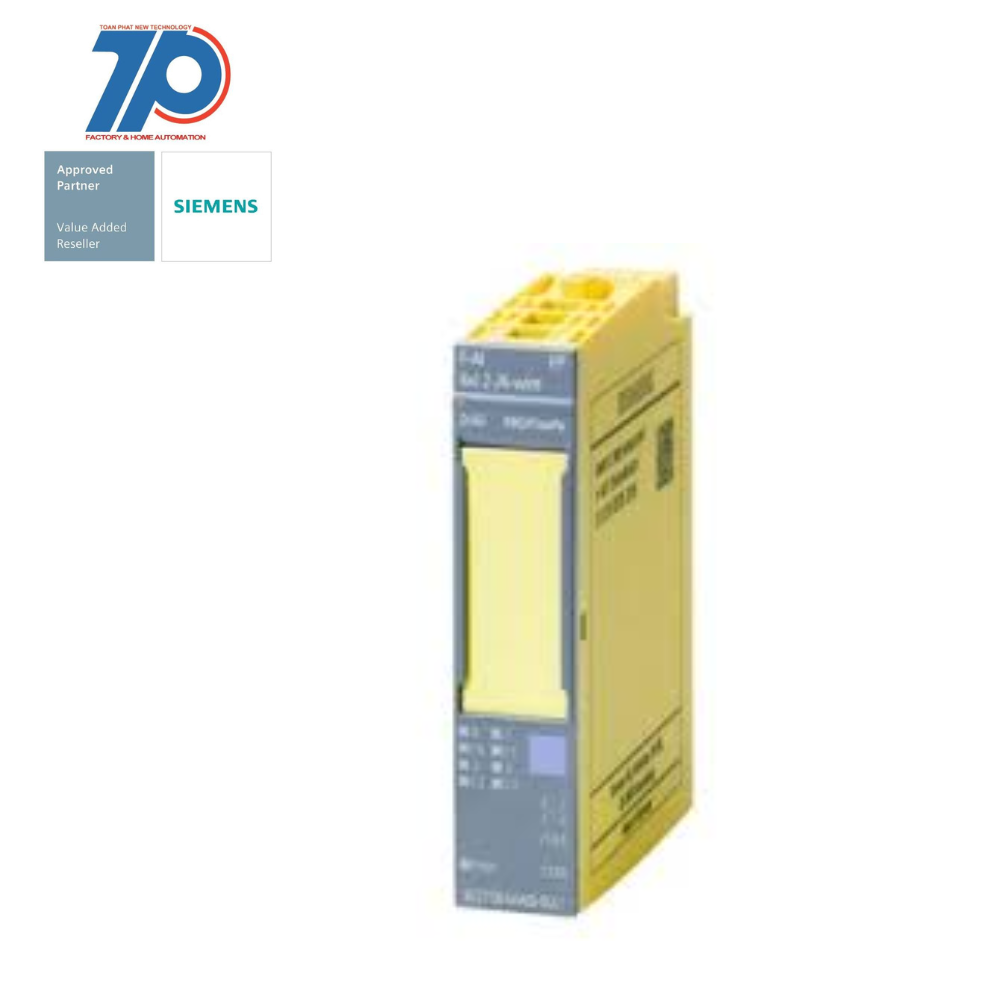

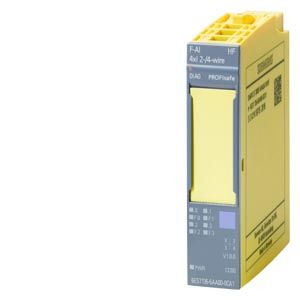

Material ID: 6ES7136-6AA00-0CA1
- SIMATIC DP, electronic module ET 200SP, F-AI 4xI0(4)..20 mA HF fail-safe analog inputs up to PL e (ISO 13849) up to SIL 3 (IEC 61508)
- Space-saving design for easy commissioning
- Approved for degree of protection IP20 and installation in compact control boxes
- Multi hot swapping feature allowing quick and simple module replacement
- Wide range of communication methods available with MultiFieldbus interface module IM155-6MF
- Standardized identification system for simplified installation and service
- Future-proof investment with integration of innovative and long-life automation products
- Consistent data availability, flexible use cases, and versatile integration options for optimum performance
- Scalable configuration with a wide range of signal modules, including fail-safe variants for SIL 3 / PLe applications
- Integrated motor starters for motors up to 5.5 kW
- Energy Meters, IO-Link master
Additional Information
Support
Technical Data
Manuals / Links
Thông số kỹ thuật
| FEATURE | VALUE |
| Front built-in possible | false |
| Depth | 58 mm |
| Suitable for safety functions | true |
| Supporting protocol for EtherNet/IP | false |
| Supporting protocol for CAN | false |
| Input, resistance thermometer | false |
| Supporting protocol for PROFINET CBA | false |
| Height | 73 mm |
| Width | 15 mm |
| Supporting protocol for Data-Highway | false |
| Supply voltage DC | 28.8 V |
| Radio standard Bluetooth | false |
| Radio standard WLAN 802.11 | false |
| Supply voltage DC | 19.2 V |
| Supporting protocol for PROFINET IO | false |
| Supporting protocol for PROFIBUS | false |
| Supporting protocol for ASI | false |
| Input, current | true |
| IO link master | false |
| Supporting protocol for Modbus | false |
| Appendant operation agent (Ex ib) | false |
| Supporting protocol for SERCOS | false |
| Number of analogue inputs | 4 |
| Input, thermocouple | false |
| Supporting protocol for DeviceNet Safety | false |
| Rack-assembly possible | true |
| Input signal, configurable | true |
| Supporting protocol for INTERBUS | false |
| Input, voltage | false |
| Radio standard GPRS | false |
| Supporting protocol for SafetyBUS p | false |
| Supporting protocol for SUCONET | false |
| Fieldbus connection over separate bus coupler possible | true |
| Radio standard GSM | false |
| Supporting protocol for TCP/IP | false |
| System accessory | true |
| Degree of protection (IP) | IP20 |
| Voltage type (supply voltage) | DC |
| Supporting protocol for DeviceNet | false |
| Resolution of the analogue inputs | 16 Bit |
| Supporting protocol for KNX | false |
| Rail mounting possible | true |
| Appendant operation agent (Ex ia) | false |
| Supporting protocol for AS-Interface Safety at Work | false |
| Analogue inputs configurable | true |
| Supporting protocol for LON | false |
| Wall mounting/direct mounting | false |
| Supporting protocol for INTERBUS-Safety | false |
| Supporting protocol for Foundation Fieldbus | false |
| Input, resistor | false |
| Radio standard UMTS | false |
| Supporting protocol for other bus systems | false |
| Supporting protocol for PROFIsafe | false |
