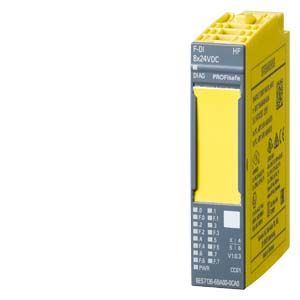

Material ID: 6ES7136-6BA01-0CA0
- SIMATIC DP, electronic module for ET 200SP, F-DI 8x 24 V DC HF, 15 mm width, up to PLe (ISO 13849-1)/ SIL3 (IEC 61508)
- SIMATIC ET 200SP offers a multifunctional and distributed I/O system
- Approved for degree of protection IP20 and for installation in a compact control box
- Multi hot swapping feature allows for quick and simple module replacement
- Wide range of communication methods available
- Integrated MultiFieldbus interface module IM155-6MF supports multiple Ethernet protocols
- Standardized identification system simplifies installation and service
- Future-proof investment with innovative and long-life automation products from Siemens
- Consistent data availability, flexible use cases, and versatile integration options ensure optimum performance
- Cost-optimized configuration of ET 200SP station with a wide range of signal modules
- Digital, analog, and fail-safe variants available for applications
Additional Information
Support
Technical Data
Manuals / Links
Thông số kỹ thuật
| FEATURE | VALUE |
| Depth | 58 mm |
| Radio standard GSM | false |
| Supply voltage DC | 19.2 V |
| Digital inputs configurable | true |
| Type of digital output | None |
| Fieldbus connection over separate bus coupler possible | true |
| Rail mounting possible | true |
| Type of voltage (input voltage) | DC |
| Supporting protocol for INTERBUS-Safety | false |
| Radio standard UMTS | false |
| IO link master | false |
| Time delay at signal change | 20 ms |
| Supporting protocol for INTERBUS | false |
| Supporting protocol for PROFINET IO | false |
| System accessory | true |
| Appendant operation agent (Ex ia) | false |
| Radio standard GPRS | false |
| Number of digital inputs | 8 |
| Front built-in possible | false |
| Supporting protocol for SERCOS | false |
| Supporting protocol for AS-Interface Safety at Work | false |
| Width | 15 mm |
| Permitted voltage at input | 30 V |
| Supporting protocol for KNX | false |
| Supporting protocol for ASI | false |
| Suitable for safety functions | true |
| Time delay at signal change | 0.4 ms |
| Supporting protocol for Foundation Fieldbus | false |
| Supporting protocol for DeviceNet Safety | false |
| Supporting protocol for other bus systems | false |
| Appendant operation agent (Ex ib) | false |
| Supporting protocol for SUCONET | false |
| Supporting protocol for EtherNet/IP | false |
| Supporting protocol for PROFIsafe | true |
| Wall mounting/direct mounting | false |
| Supporting protocol for PROFINET CBA | false |
| Rack-assembly possible | true |
| Supporting protocol for LON | false |
| Supporting protocol for Modbus | false |
| Degree of protection (IP) | IP20 |
| Height | 73 mm |
| Radio standard WLAN 802.11 | false |
| Supporting protocol for SafetyBUS p | false |
| Permitted voltage at input | -30 V |
| With optical interface | false |
| Radio standard Bluetooth | false |
| Supporting protocol for PROFIBUS | false |
| Input current at signal 1 | 3.7 mA |
| Supporting protocol for DeviceNet | false |
| Supporting protocol for CAN | false |
| Supporting protocol for Data-Highway | false |
| Supply voltage DC | 28.8 V |
