Cam kết bán hàng
-
Sản phẩm chính hãng
-
Bảo hành có cam kết
-
Đầy đủ phụ kiện từ nhà sản xuất
-
Giao hàng nhanh chóng (tuỳ khu vực)
LƯU Ý
Tất cả sản phẩm được nhập khẩu chính hãng SIEMENS.
Bảo hành 12 tháng khi mua tại TPNewtech.
Sản phẩm bao gồm:
- Bao bì
- Thiết bị
- Hóa đơn GTGT
- CO/CQ
(Có giá tốt khi mua số lượng nhiều)
Luôn có chương trình hỗ trợ dự án công trình, hãy gọi ngay cho chúng tôi

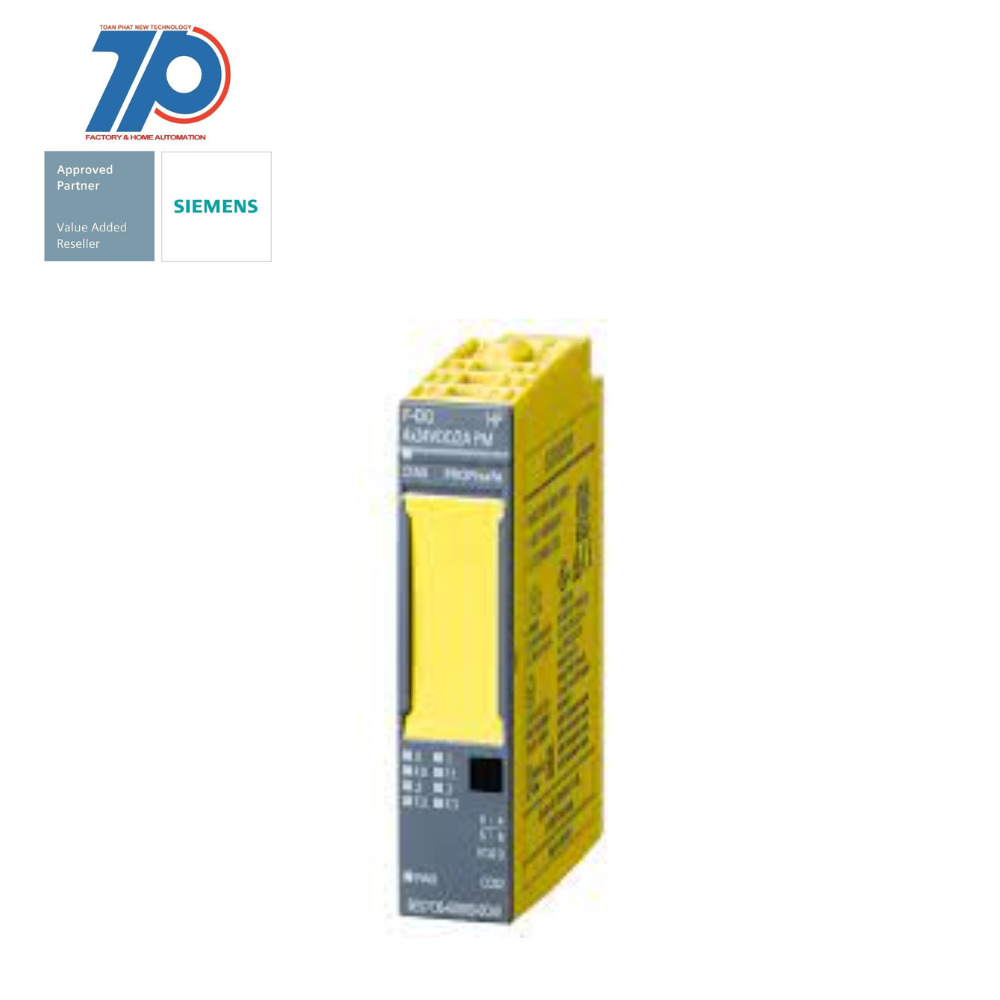

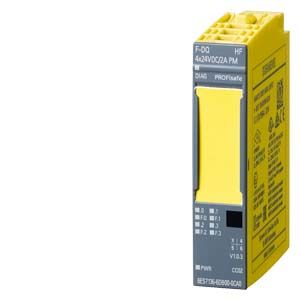

Material ID: 6ES7136-6DB00-0CA0
- SIMATIC DP, Electronics module for ET 200SP, F-DQ 4X24 V DC/2A, 15 mm width
- Approval for up to PL E (ISO 13849) and up to SIL 3 (IEC 61508)
- Multi hot swapping feature for easy module replacement
- Degree of protection IP20 for installation in compact control box
- Wide range of fast communication methods
- Standardized identification system for simplified installation and service
- Integration of innovative and long-life automation products
- Consistent data availability, flexible use cases, and versatile integration options for optimum performance
- Scalable, cost-optimized configuration of ET 200SP station
- Signal modules include digital, analog, and fail-safe variants up to SIL 3/PLe
- Integrated motor starters for motors up to 5.5 kW
- Energy Meters, IO-Link master (V1.1.), and other modules for adaptability
- Accessories
Additional Information
Support
- FAQ
- Siemens Support Portal
- Siemens EcoTechProfil (SEP)
- Application Example
- Sales Brochure
- 3D PDF
Technical Data
Manuals / Links
Thông số kỹ thuật
| FEATURE | VALUE |
| Short-circuit protection, outputs available | true |
| Wall mounting/direct mounting | false |
| Output current | 2 A |
| Appendant operation agent (Ex ia) | false |

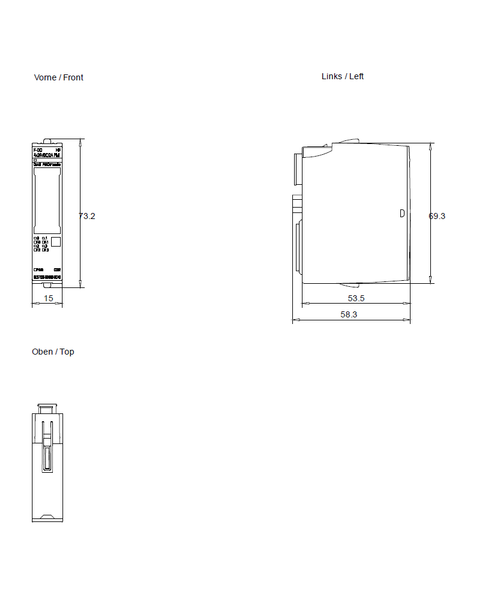

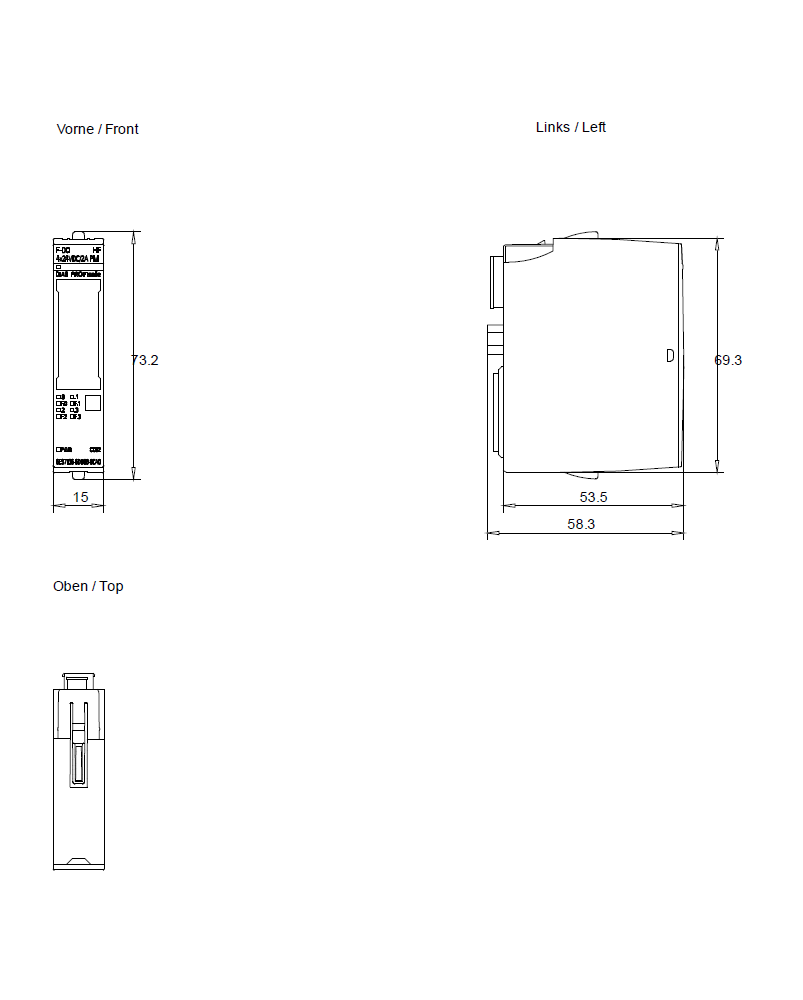

| Width | 15 mm |
| Appendant operation agent (Ex ib) | false |
| IO link master | false |
| Supporting protocol for Data-Highway | false |
| Supporting protocol for INTERBUS | false |
| Voltage type (supply voltage) | DC |
| Permitted voltage at output | 28.8 V |
| Supporting protocol for DeviceNet | false |
| Radio standard GPRS | false |
| Supporting protocol for TCP/IP | false |
| Supporting protocol for PROFINET CBA | false |
| Supporting protocol for Modbus | false |
| Radio standard WLAN 802.11 | false |
| Supporting protocol for DeviceNet Safety | false |
| Supporting protocol for PROFIsafe | true |
| Supporting protocol for ASI | false |
| Supporting protocol for INTERBUS-Safety | false |
| Supporting protocol for LON | false |
| Radio standard Bluetooth | false |
| Digital outputs configurable | true |
| Rack-assembly possible | false |
| Depth | 58 mm |
| Supporting protocol for PROFIBUS | false |
| Degree of protection (IP) | IP20 |
| Radio standard UMTS | false |
| Supporting protocol for Foundation Fieldbus | false |
| Supply voltage DC | 28.8 V |
| Fieldbus connection over separate bus coupler possible | true |
| Number of digital outputs | 4 |
| Supporting protocol for other bus systems | false |
| Supporting protocol for AS-Interface Safety at Work | false |
| Supporting protocol for CAN | false |
| Supporting protocol for PROFINET IO | false |
| Front built-in possible | false |
| Height | 73 mm |
| With optical interface | false |
| Radio standard GSM | false |
| Supporting protocol for KNX | false |
| Supply voltage DC | 19.2 V |
| Supporting protocol for SafetyBUS p | false |
| Type of output voltage | DC |
| System accessory | true |
| Supporting protocol for EtherNet/IP | false |
| Supporting protocol for SUCONET | false |
| Supporting protocol for SERCOS | false |
| Type of digital output | Transistor |
| Rail mounting possible | true |
| Permitted voltage at output | 19.2 V |
| Suitable for safety functions | true |
