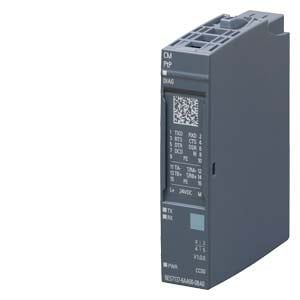

Material ID: 6ES7137-6AA01-0BA0
- SIMATIC ET 200SP features
- CM PTP communication module for serial connection RS-422, RS-485, and RS-232
- Supports freeport, 3964 (R), USS, MODBUS RTU master, and slave with a max. speed of 250 Kbit/s
- Suitable for BU type A0, pack quantity of 1 unit
- Easy commissioning and space-saving design
- Approved for degree of protection IP20
- Suitable for installation in a compact control box
- Multi hot swapping allows simple module replacement
- Communication capabilities
- Integrated MultiFieldbus interface module IM155-6MF for flexible protocol selection
- Standardized identification system for simplified installation and service
- Future-proof investment
- Integration of innovative and long-life automation products
- Expansion options
- Communication modules for additional functions or interfaces such as PtP, IO-Link, or AS-i
Additional Information
Support
Technical Data
Manuals / Links
Thông số kỹ thuật
| FEATURE | VALUE |
| Rail mounting possible | true |
| Supply voltage DC | 19.2 V |
| IO link master | false |
| Supporting protocol for SERCOS | false |
| Height | 73 mm |
| Suitable for safety functions | false |
| Supporting protocol for INTERBUS | false |
| Supporting protocol for DeviceNet Safety | false |
| Supporting protocol for PROFIBUS | false |
| Supporting protocol for LON | false |
| Supporting protocol for PROFINET CBA | false |
| Rack-assembly possible | false |
| Appendant operation agent (Ex ia) | false |
| Fieldbus connection over separate bus coupler possible | true |
| Supporting protocol for ASI | false |
| Radio standard LTE | false |
| Voltage type (supply voltage) | DC |
| Supporting protocol for Data-Highway | false |
| Radio standard WLAN 802.11 | false |
| Radio standard GSM | false |
| Supporting protocol for CAN | false |
| Supporting protocol for INTERBUS-Safety | false |
| Supporting protocol for EtherNet/IP | false |
| Supporting protocol for Modbus | true |
| Wall mounting/direct mounting | false |
| Front built-in possible | false |
| Width | 15 mm |
| Radio standard GPRS | false |
| Appendant operation agent (Ex ib) | false |
| Supporting protocol for PROFINET IO | false |
| Supporting protocol for Foundation Fieldbus | false |
| Supply voltage DC | 28.8 V |
| Radio standard Bluetooth | false |
| Depth | 58 mm |
| Supporting protocol for AS-Interface Safety at Work | false |
| Supporting protocol for KNX | false |
| Supporting protocol for TCP/IP | false |
| System accessory | true |
| Supporting protocol for PROFIsafe | false |
| Supporting protocol for other bus systems | true |
| Supporting protocol for SUCONET | false |
| Radio standard UMTS | false |
| Supporting protocol for DeviceNet | false |
| With potential separation | true |
| Degree of protection (IP) | IP20 |
| Radio standard eGPRS | false |
| Supporting protocol for SafetyBUS p | false |
