Material ID: 6ES7138-4CA01-0AA0

Spare part

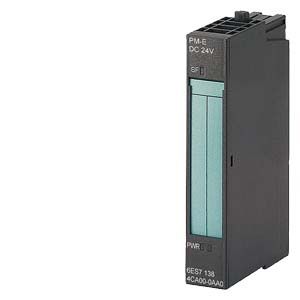

SIMATIC DP, PM-E power modules for ET 200S; 24 V DC with diagnostics

Technical Features

Commercial Benefits

    • SIMATIC ET 200S is a modularly scalable, distributed I/O system
    • Designed for installation in small control boxes near the machine
    • Modules can be plugged directly into an ET 200S IM with CPU functionality
    • Modules can also be connected to a central controller via PROFINET or PROFIBUS
    • Expandable with up to 64 I/O modules
    • Comprehensive range of modules
    • Modules available with a wide variety of characteristics
    • Modules with standard functions (ST) and extended range of functions and diagnostics (HF High Feature/ HS High Speed)
    • Easy application with the capability of swapping modules and terminal boxes during operation
    • Increased availability and productivity of the machine due to "hot swapping"
    • Modular scalability allows for flexible expansion
    • Improved functionality and price scalability
    • Easy and convenient application
    • Increased machine availability and productivity
Additional Information

Support

Technical Data

Manuals / Links







Thông số kỹ thuật
FEATUREVALUE
Input voltage DC28.8 V
Depth52 mm
Type of output voltageDC
Input voltage DC20.4 V
Output voltage DC20.4 V
Type of voltage (input voltage)DC
Output voltage DC28.8 V
Suitable for safety functionsfalse
Max. output current DC10 A
Redundancyfalse
Height81 mm
Width15 mm
