Material ID: 6ES7138-4CA50-0AB0

Spare part

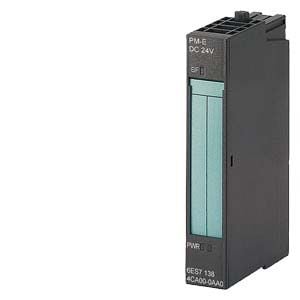

SIMATIC DP, PM-E power modules for ET 200S; 24 V-48 V DC with diagnostics

SIMATIC ET 200S is a modularly scalable, distributed I/O system that is specially designed for installation in small control boxes near the machine. The modules can either be plugged directly into an ET 200S IM with CPU functionality or connected to a central controller via PROFINET or PROFIBUS.

SIMATIC ET 200S can be expanded with up to 64 I/O modules, which can be inserted in any combination. The system provides a comprehensive range of modules. Many modules are also available with a wide variety of characteristics, which considerably improve the scalability in regard to functionality and price. Thus, in addition to modules with standard functions (ST), modules with an extended range of functions and diagnostics (HF High Feature/ HS High Speed) are also available.

The advantage of the ET 200S system is in its ease of application, such as through the capability of swapping modules and terminal boxes during operation. The availability and productivity of the machine are considerably increased due to the so-called "hot swapping".

    Additional Information

    Support

    Technical Data

    Manuals / Links







    Thông số kỹ thuật
    FEATUREVALUE
    Type of voltage (input voltage)DC
    Input voltage DC20.4 V
    Redundancyfalse

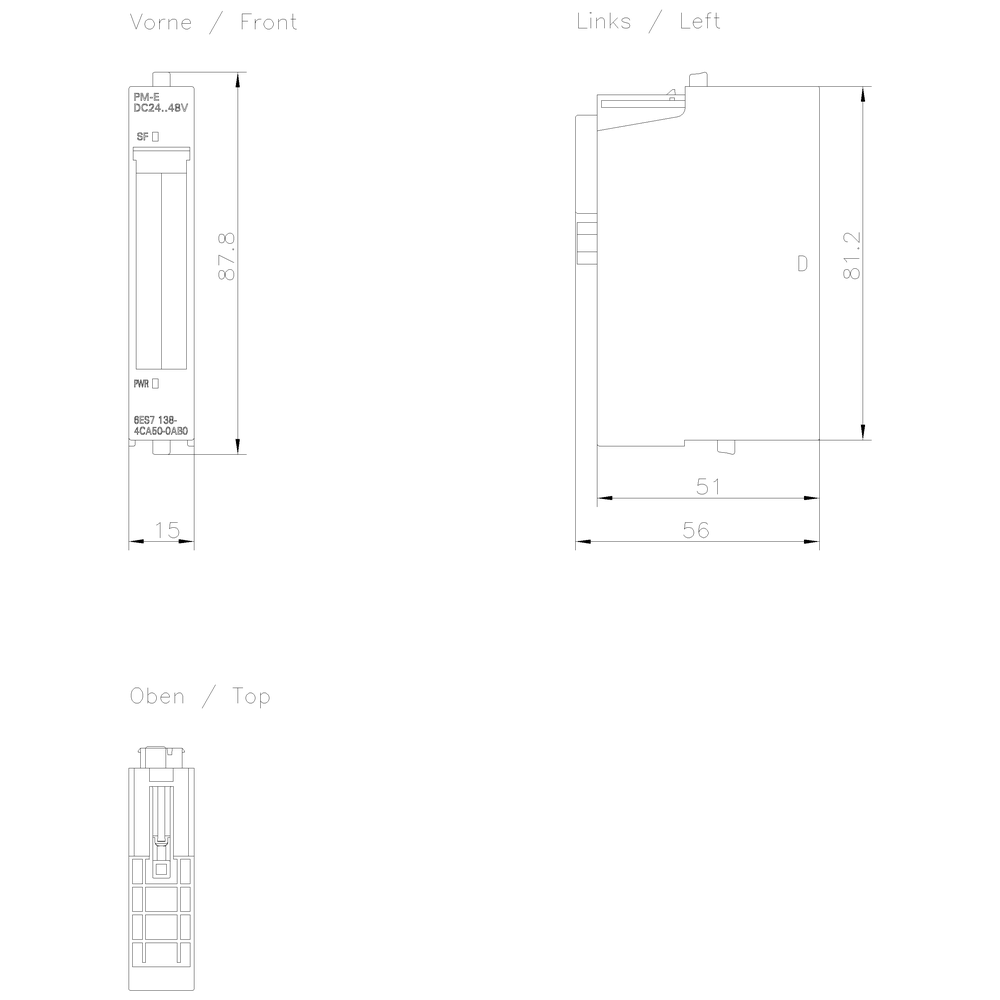

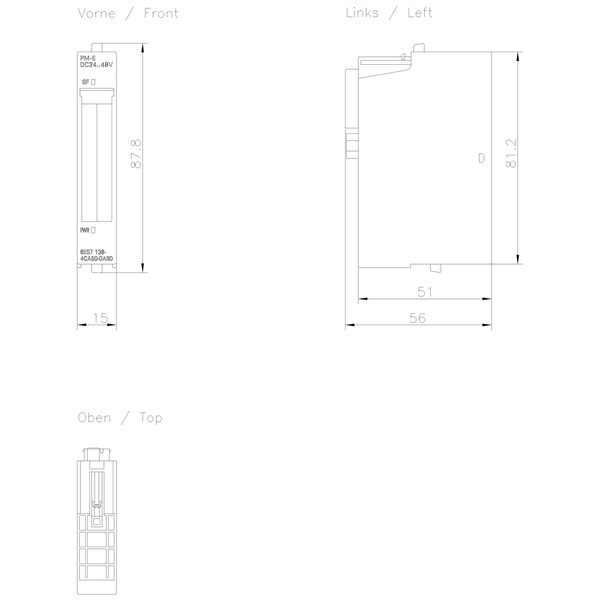

    Height81 mm
    Width15 mm
    Depth52 mm
    Max. output current DC10 A
    Output voltage DC57.6 V
    Input voltage DC57.6 V
    Suitable for safety functionsfalse
    Output voltage DC20.4 V
    Type of output voltageDC
