Material ID: 6ES7138-4CA60-0AB0

Spare part

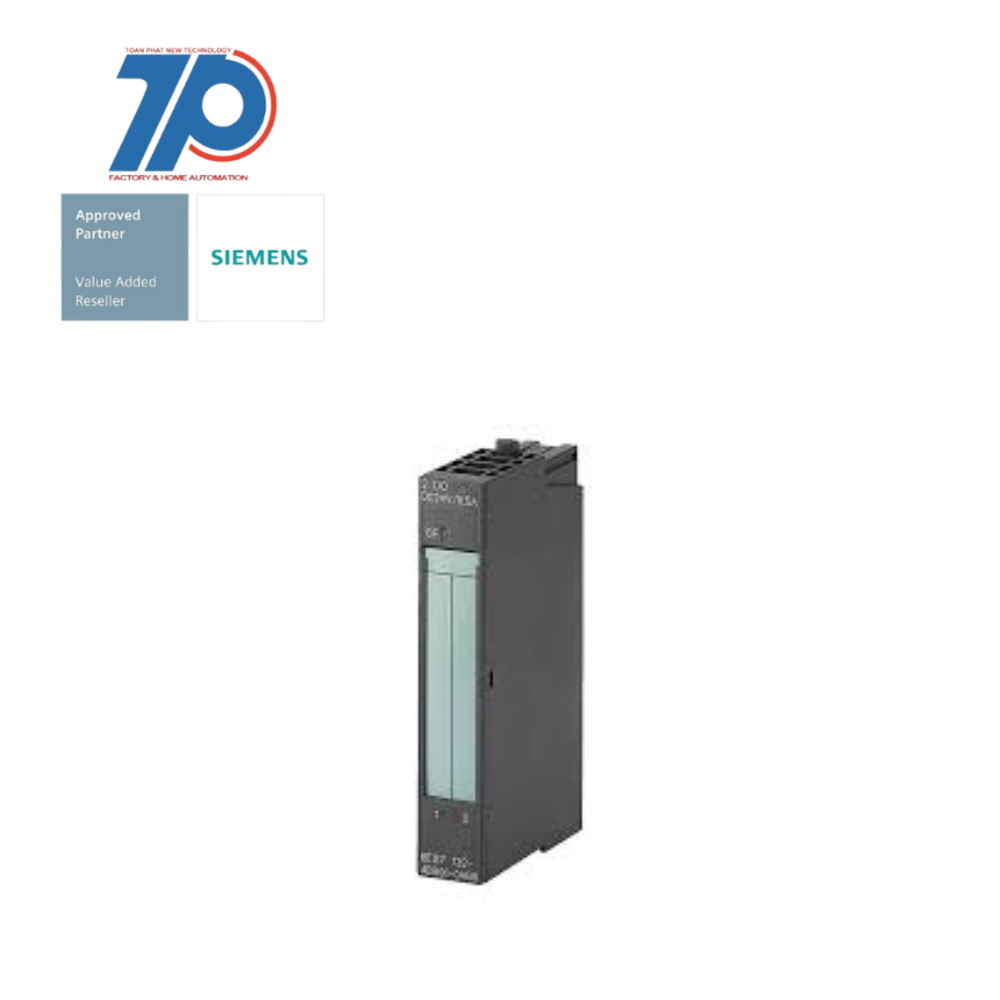

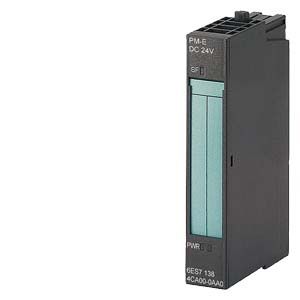

SIMATIC DP, Power Module PM-E High Feature for ET 200S

The SIMATIC ET 200S is a modularly scalable, distributed I/O system designed for installation in small control boxes near the machine. It offers the following features:

The SIMATIC ET 200S offers a scalable and flexible solution for your control system needs, providing improved functionality and price options. It ensures the availability and productivity of your machine, making it an ideal choice for various industrial applications.

    • 24 V DC power module with diagnostics
    • Can be plugged directly into an ET 200S IM with CPU functionality
    • Can be connected to a central controller via PROFINET or PROFIBUS
    • Expandable with up to 64 I/O modules
    • Comprehensive range of modules
    • Modules with standard functions (ST) and extended range of functions and diagnostics (HF High Feature/ HS High Speed)
    • Easy application with module and terminal box swapping during operation
    • Increased availability and productivity with "hot swapping"
Additional Information

Support

Technical Data

Manuals / Links





Thông số kỹ thuật
FEATUREVALUE

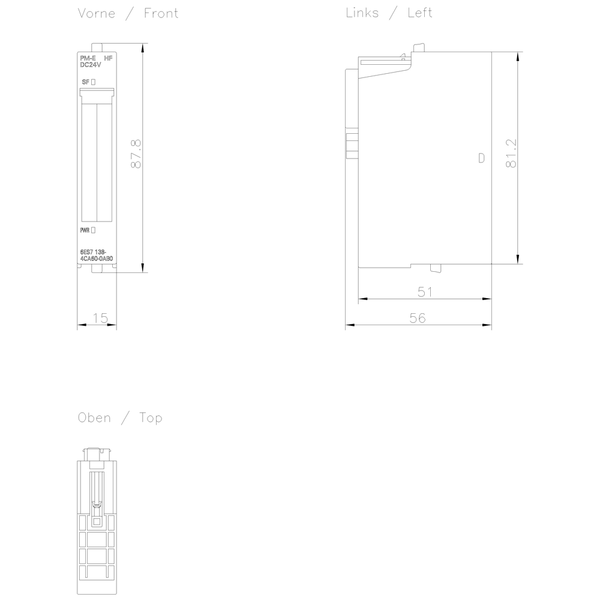

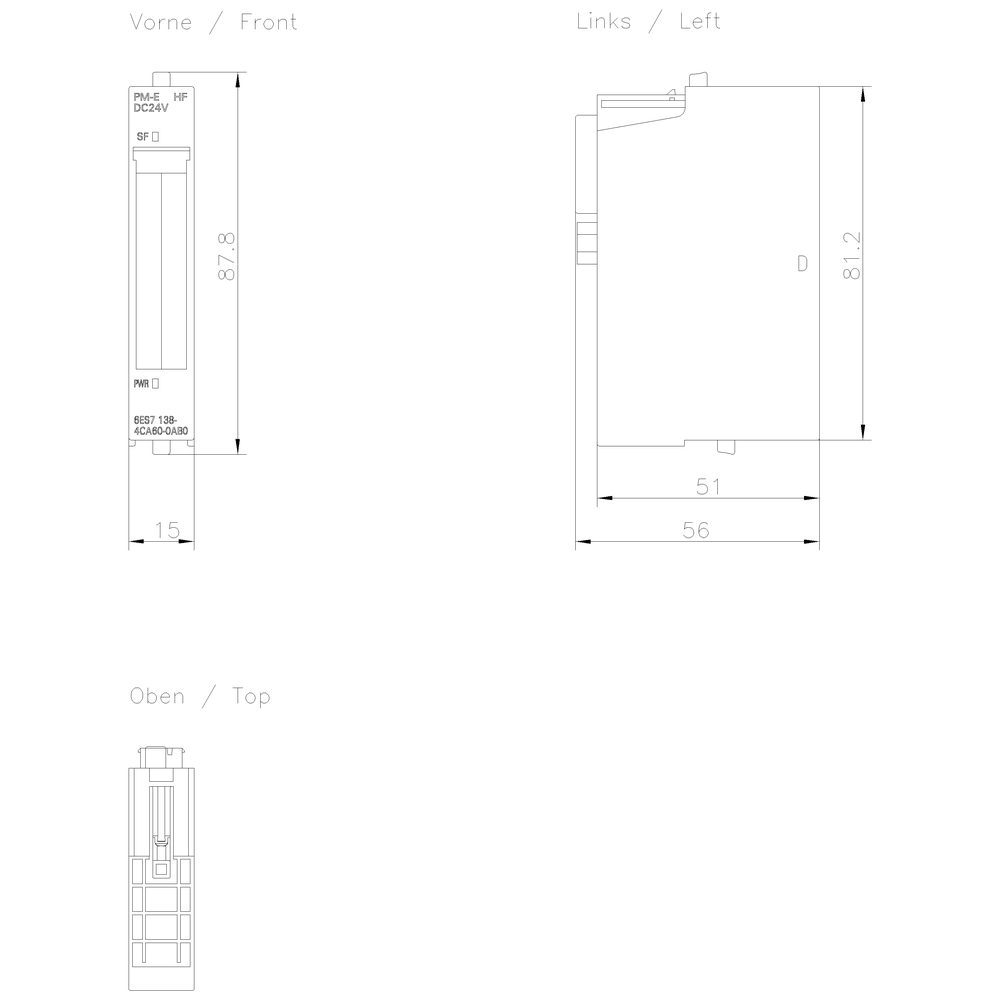

Width15 mm
Suitable for safety functionsfalse
Output voltage DC28.8 V
Depth52 mm
Redundancyfalse
Height81 mm
Max. output current DC10 A
Type of output voltageDC
Type of voltage (input voltage)DC
Input voltage DC20.4 V
Input voltage DC28.8 V
Output voltage DC20.4 V
