Material ID: 6ES7138-4CB11-0AB0

Spare part

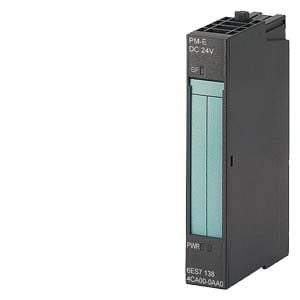

SIMATIC DP, PM-E power modules for ET 200S, 24-48 V DC, 24-230 V AC, with diagnostics and fuse

Technical Features

Commercial Benefits

    • SIMATIC ET 200S is a modularly scalable, distributed I/O system
    • Designed for installation in small control boxes near the machine
    • Modules can be plugged directly into an ET 200S IM with CPU functionality
    • Modules can be connected to a central controller via PROFINET or PROFIBUS
    • Expandable with up to 64 I/O modules
    • Modules can be inserted in any combination
    • Comprehensive range of modules
    • Modules available with a wide variety of characteristics
    • Modules with standard functions (ST) available
    • Modules with extended range of functions and diagnostics (HF High Feature/ HS High Speed) available
    • Capability of swapping modules and terminal boxes during operation
    • Improved scalability in regard to functionality and price
    • Increased availability and productivity of the machine
    • Easy application
    • Hot swapping capability
Additional Information

Support

Technical Data

Manuals / Links







Thông số kỹ thuật
FEATUREVALUE
Type of voltage (input voltage)AC/DC
Input voltage AC 60 Hz20.4 V

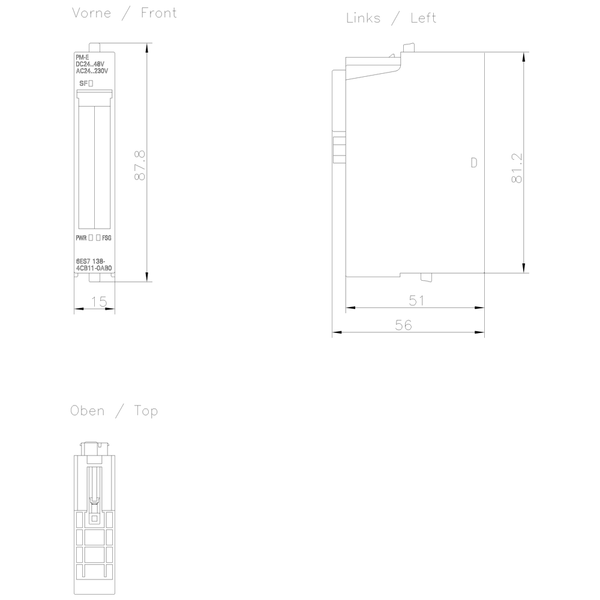

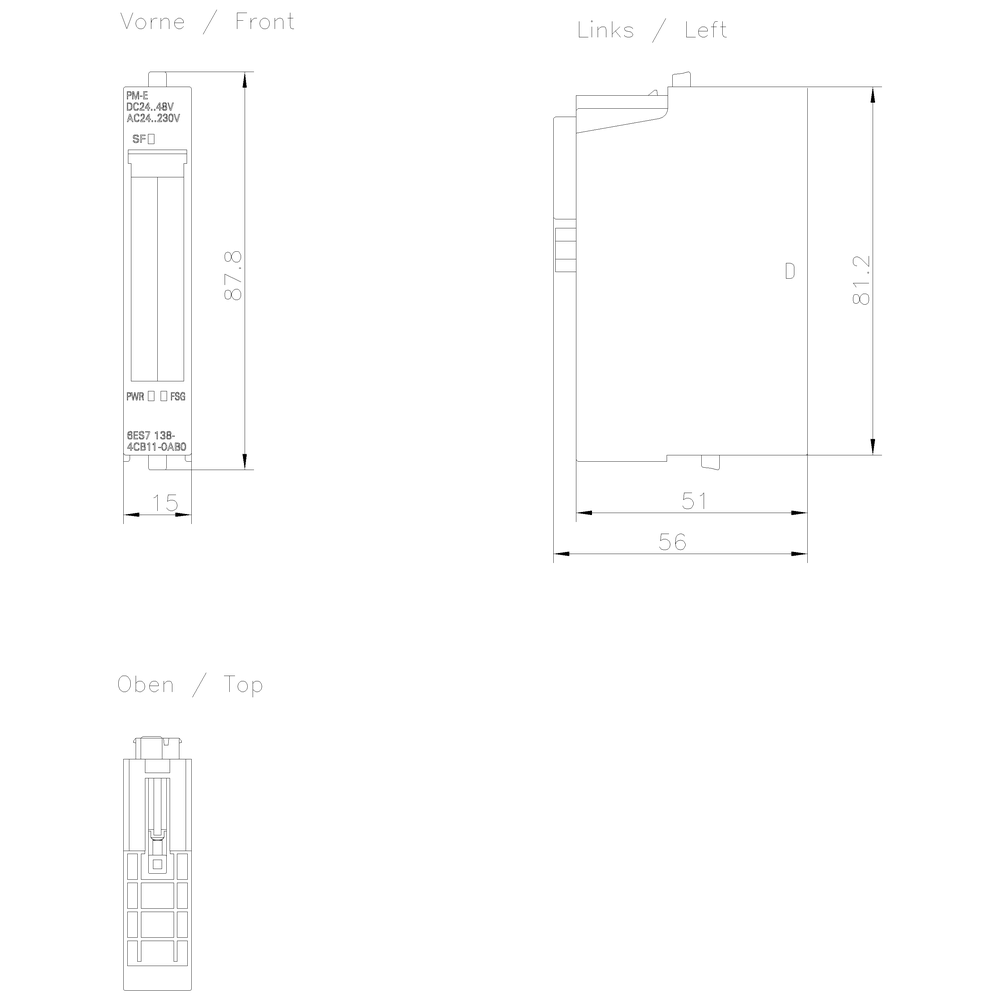

Height81 mm
Suitable for safety functionsfalse
Input voltage AC 60 Hz264 V
Type of output voltageAC/DC
Input voltage DC20.4 V
Output voltage AC 60 Hz20.4 V
Width15 mm
Input voltage AC 50 Hz264 V
Max. output current AC 60 Hz8 A
Max. output current DC10 A
Output voltage AC 50 Hz20.4 V
Output voltage DC20.4 V
Output voltage AC 60 Hz264 V
Output voltage AC 50 Hz264 V
Max. output current AC 50 Hz8 A
Output voltage DC57.6 V
Redundancyfalse
Depth52 mm
Input voltage AC 50 Hz20.4 V
Input voltage DC57.6 V
