Material ID: 6ES7138-4CF42-0AB0Product Description

Spare part

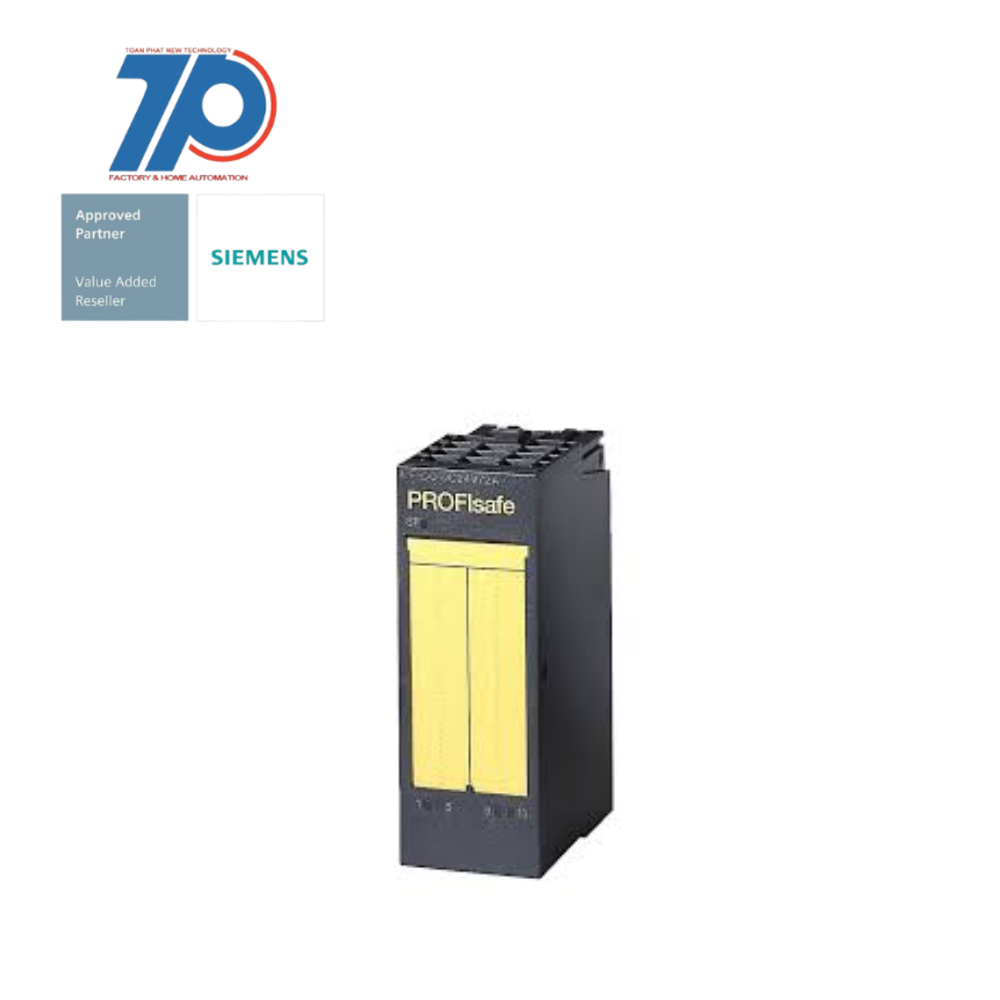

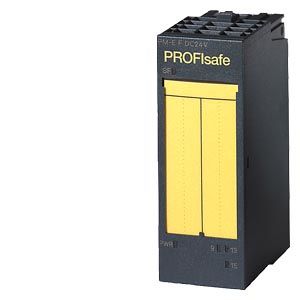

SIMATIC DP, Power Module PM-E F PROFIsafe

The SIMATIC DP Power Module PM-E F PROFIsafe is a spare part suitable for grounded setup relay for switching the voltage buses P1 and P2. It is designed to meet Category 3 (EN 954-1), SIL2 (IEC61508), and PLD (ISO13849) safety requirements. This power module operates at 24 V DC and can also be used in PROFINET configuration with IM 151-3 HF.

SIMATIC ET 200S

SIMATIC ET 200S is a modularly scalable, distributed I/O system that is specially designed for installation in small control boxes near the machine. The system allows for easy expansion with up to 64 I/O modules, which can be inserted in any combination. It offers a comprehensive range of modules with different characteristics, including modules with standard functions (ST) and modules with an extended range of functions and diagnostics (HF High Feature/ HS High Speed).

Benefits

    • Improved scalability in terms of functionality and price
    • Easy application with the capability of swapping modules and terminal boxes during operation
    • Increased availability and productivity of the machine due to "hot swapping"
Additional Information

Support

Technical Data

Manuals / Links







Thông số kỹ thuật
FEATUREVALUE

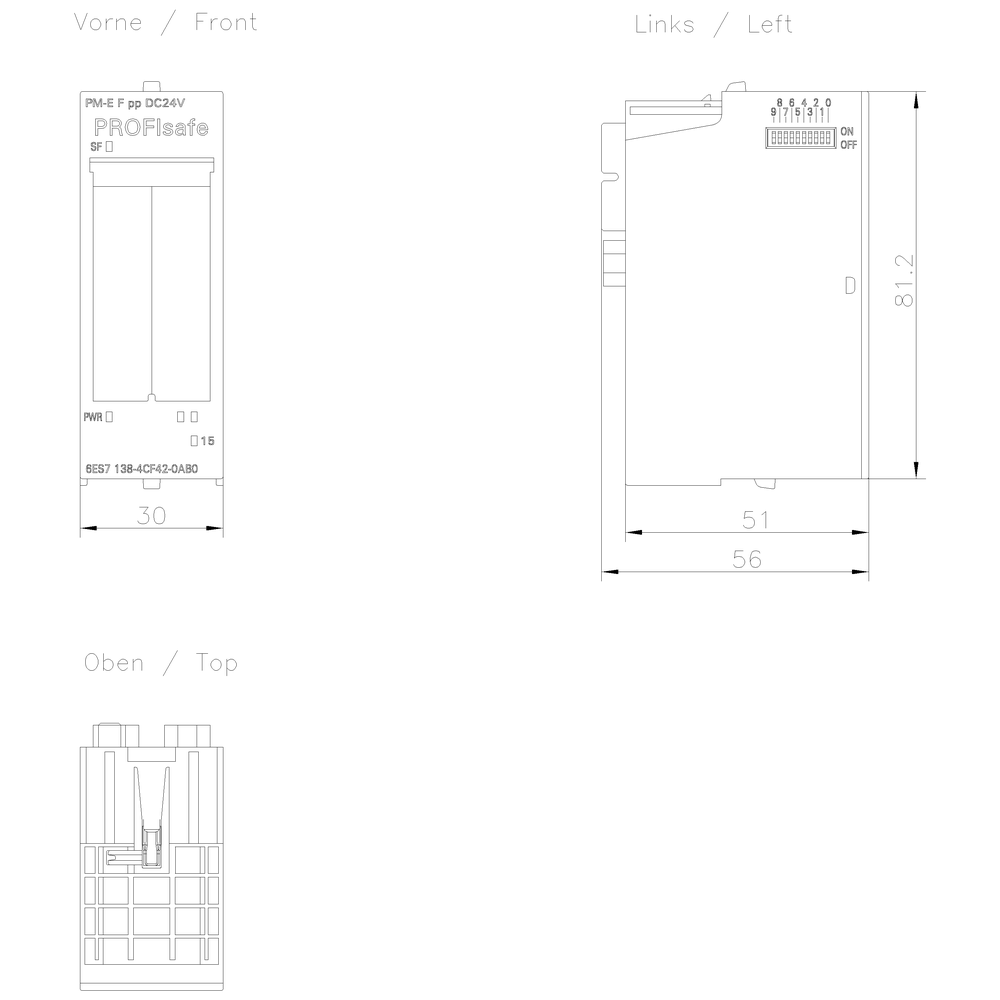

Width30 mm
Suitable for safety functionstrue
Output voltage DC28.8 V
Height81 mm
Depth52 mm
Redundancyfalse
Output voltage DC20.4 V
Type of voltage (input voltage)DC
Input voltage DC20.4 V
Max. output current DC10 A
Type of output voltageDC
Input voltage DC28.8 V
