Material ID: 6ES7138-4DA04-0AB0

Spare part

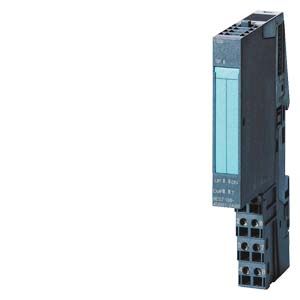

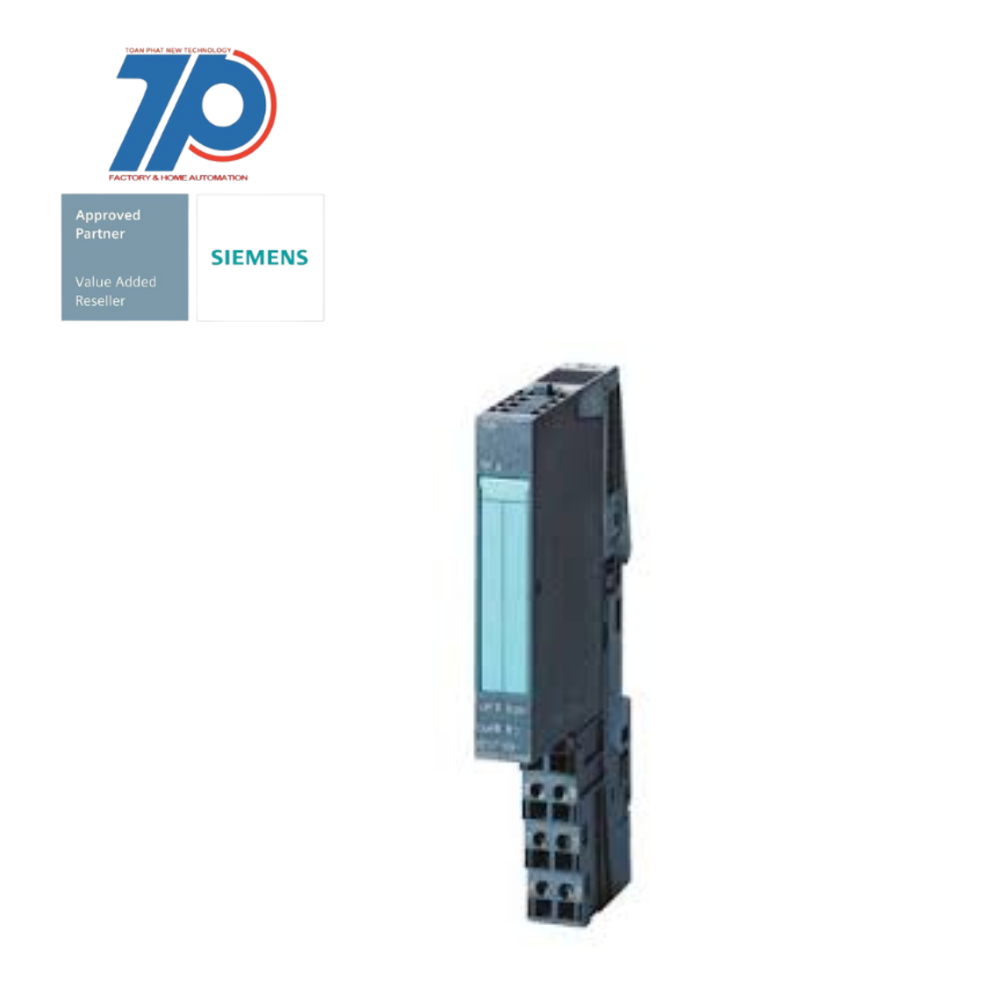

SIMATIC DP, Electronics module for ET 200S, 1 count 24 V/100 kHz 15 mm installation width, operating modes: Count, Measure, (cycle duration measurement, high-resolution) with clock synchronization

Technical Features

Commercial Benefits

    • Modularly scalable, distributed I/O system
    • Specially designed for installation in small control boxes near the machine
    • Modules can be plugged directly into an ET 200S IM with CPU functionality or connected to a central controller via PROFINET or PROFIBUS
    • Expandable with up to 64 I/O modules
    • Comprehensive range of modules
    • Modules available with a wide variety of characteristics, improving scalability in functionality and price
    • Modules available with standard functions (ST) or extended range of functions and diagnostics (HF High Feature/ HS High Speed)
    • Easy application with capability of swapping modules and terminal boxes during operation
    • Increased availability and productivity of the machine due to "hot swapping"
    • Enhanced scalability in terms of functionality and price
    • Improved machine availability and productivity
    • Easy and convenient module and terminal box swapping during operation
Additional Information

Support

Technical Data

Manuals / Links







Thông số kỹ thuật
FEATUREVALUE
Supporting protocol for DeviceNet Safetyfalse
Supporting protocol for Foundation Fieldbusfalse
Contactor control function blockfalse
Rail mounting possibletrue
Function block operating mode selectionfalse
Supporting protocol for ASIfalse
Supporting protocol for other bus systemsfalse
Suitable for temperature controlfalse
Function block affirm pushbuttonfalse
Suitable for multi-axis controlfalse
Number of HW-interfaces other0
Function block 2-hand switchingfalse
Number of HW-interfaces wireless0
Suitable for multi-axis positioningfalse
Number of HW-interfaces RS-4850
Function block emergency stopfalse
Supporting protocol for TCP/IPfalse
Suitable for NCfalse
Function block access controlfalse
Appendant operation agent (Ex ib)false

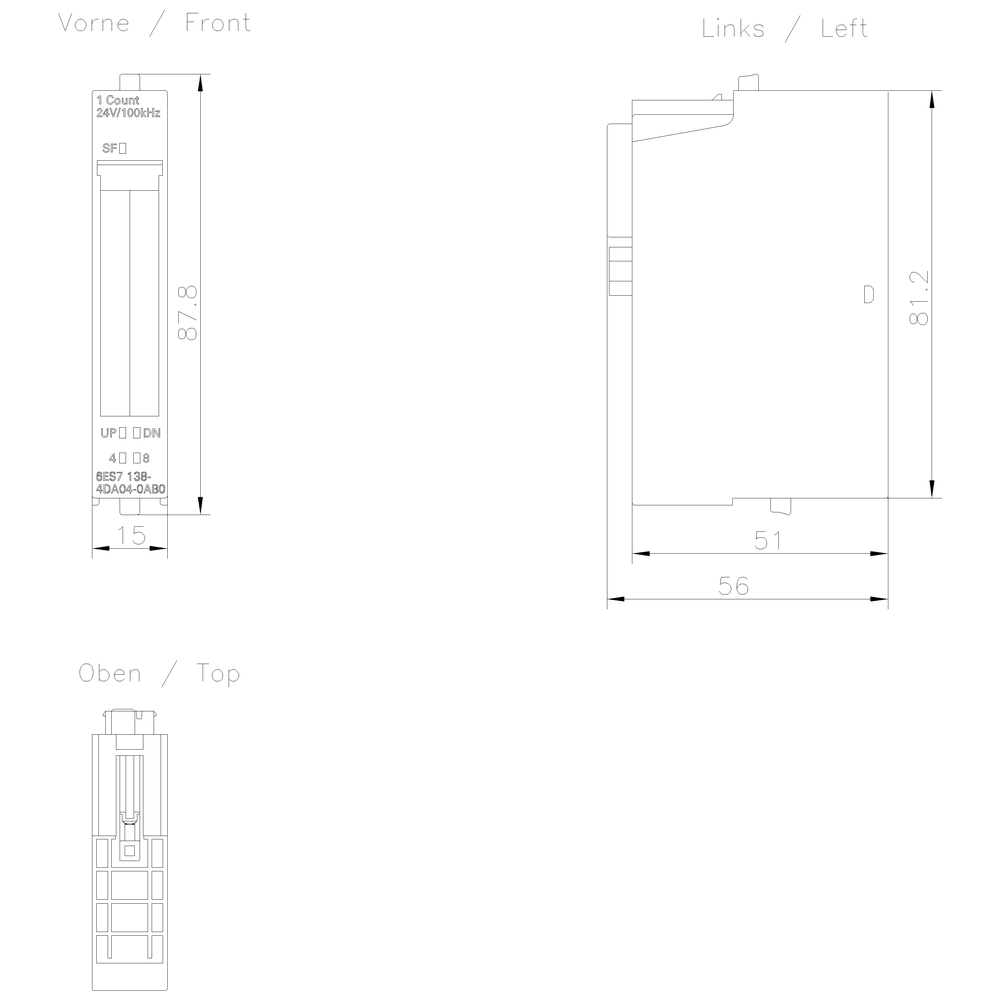

Width15 mm
Suitable for flux controllerfalse
Supporting protocol for INTERBUS-Safetyfalse
Voltage type (supply voltage)DC
Radio standard GSMfalse
Function block restart blockagefalse
Function block automatic resetfalse
Supporting protocol for CANfalse
Number of HW-interfaces serial TTY0
Rack-assembly possiblefalse
Number of HW-interfaces RS-4220
Supporting protocol for PROFINET IOfalse
Suitable for safety functionsfalse
Supporting protocol for Data-Highwayfalse
Front built-in possiblefalse
Number of HW-interfaces parallel0
Suitable for path controllerfalse
Suitable for detection absolute valuetrue
Depth52 mm
Fieldbus connection over separate bus coupler possiblefalse
Supporting protocol for AS-Interface Safety at Workfalse
Number of interfaces PROFINET0
Suitable for single-axis positioningfalse
Supporting protocol for PROFINET CBAfalse
Supporting protocol for INTERBUSfalse
Height81 mm
Suitable for pressure controlfalse
Suitable for cam controllerfalse
Supporting protocol for LONfalse
Function block contactless working protection installationfalse
Supply voltage DC20.4 V
Number of HW-interfaces USB0
Supporting protocol for PROFIBUSfalse
Supporting protocol for SafetyBUS pfalse
Suitable for SSIfalse
Number of HW-interfaces industrial Ethernet0
Suitable for single-axis controllerfalse
Radio standard Bluetoothfalse
Suitable for flux measurementfalse
Radio standard WLAN 802.11false
Suitable for countingtrue
Suitable for CNCfalse
Frequency measurementfalse
Suitable for incremental data detectionfalse
System accessorytrue
Explosion safety category for dustNone
Degree of protection (IP)IP20
IO link masterfalse
Suitable for flying sawfalse
Radio standard UMTSfalse
With optical interfacefalse
Appendant operation agent (Ex ia)false
Supporting protocol for EtherNet/IPfalse
Supporting protocol for KNXfalse
Wall mounting/direct mountingfalse
Supporting protocol for SERCOSfalse
Suitable for welding controlfalse
Suitable for electronic positioningfalse
Supply voltage DC28.8 V
Number of HW-interfaces RS-2320
Supporting protocol for SUCONETfalse
Supporting protocol for DeviceNetfalse
Radio standard GPRSfalse
Suitable for weighingfalse
Supporting protocol for Modbusfalse
