Material ID: 6ES7138-4DB03-0AB0
Spare part

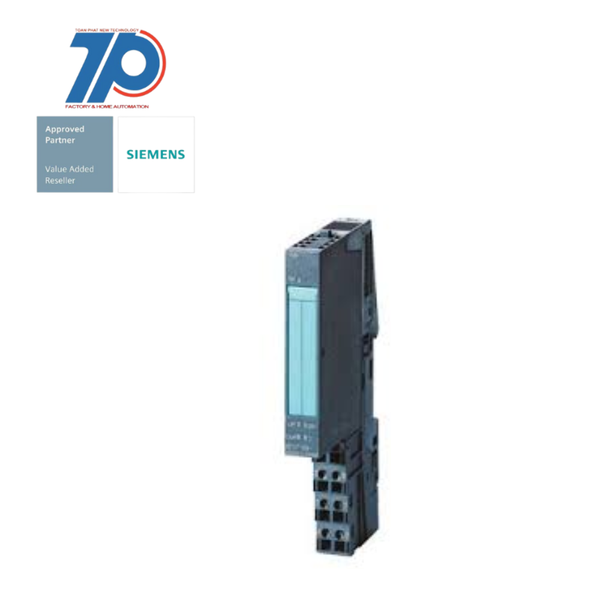

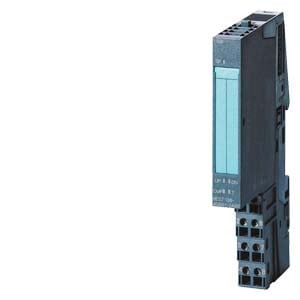

SIMATIC DP, Electronics module for ET 200S, 1 SSI 25 bit/1 MHz 15 mm width
Module for connection of absolute value encoders with SSI Synchronous Serial Interface with DI and comparison value with clock synchronization
Technical Features
Commercial Benefits
- Modularly scalable, distributed I/O system
- Designed for installation in small control boxes near the machine
- Modules can be plugged directly into an ET 200S IM with CPU functionality
- Can be connected to a central controller via PROFINET or PROFIBUS
- Expandable with up to 64 I/O modules
- Comprehensive range of modules
- Modules with standard functions (ST) and extended range of functions and diagnostics (HF High Feature/ HS High Speed)
- Easy application with module and terminal box swapping during operation
- Increased availability and productivity with "hot swapping"
- Improved scalability in functionality and price
- Enhanced machine availability and productivity
Additional Information
Support | Technical Data | Manuals / Links |
Thông số kỹ thuật
| FEATURE | VALUE |
| Suitable for pressure control | false |
| Supporting protocol for other bus systems | false |
| Suitable for NC | false |
| Suitable for electronic positioning | true |
| Radio standard GSM | false |
| Suitable for multi-axis positioning | false |
| Supporting protocol for LON | false |
| Suitable for path controller | false |
| Number of HW-interfaces parallel | 0 |
| Suitable for weighing | false |
| Supply voltage DC | 28.8 V |
| Wall mounting/direct mounting | false |
| Suitable for welding control | false |
| Appendant operation agent (Ex ia) | false |
| Number of HW-interfaces RS-232 | 0 |
| Suitable for single-axis positioning | true |
| Radio standard GPRS | false |
| Supporting protocol for PROFINET IO | false |
| Supporting protocol for Modbus | false |
| Suitable for CNC | false |
| Supporting protocol for PROFIBUS | false |
| Function block operating mode selection | false |
| Height | 81 mm |
| Suitable for cam controller | false |
| Number of interfaces PROFINET | 0 |
| Rail mounting possible | true |
| Function block affirm pushbutton | false |
| Width | 15 mm |
| Number of HW-interfaces RS-485 | 0 |
| Supporting protocol for Foundation Fieldbus | false |
| Function block 2-hand switching | false |
| Function block access control | false |
| Supporting protocol for ASI | false |
| Suitable for SSI | true |
| Front built-in possible | false |
| Number of HW-interfaces USB | 0 |
| Supporting protocol for SERCOS | false |
| Number of HW-interfaces industrial Ethernet | 0 |
| Supporting protocol for Data-Highway | false |
| Suitable for counting | false |
| Supporting protocol for KNX | false |
| Number of HW-interfaces wireless | 0 |
| Depth | 52 mm |
| Suitable for incremental data detection | true |
| With optical interface | false |
| Number of HW-interfaces serial TTY | 0 |
| Voltage type (supply voltage) | DC |
| Supporting protocol for INTERBUS-Safety | false |
| Supporting protocol for EtherNet/IP | false |
| Degree of protection (IP) | IP20 |
| IO link master | false |
| Supporting protocol for DeviceNet | false |
| Contactor control function block | false |
| Function block emergency stop | false |
| Supporting protocol for TCP/IP | false |
| Function block automatic reset | false |
| Fieldbus connection over separate bus coupler possible | false |
| Supporting protocol for AS-Interface Safety at Work | false |
| Supporting protocol for CAN | false |
| Rack-assembly possible | false |
| Suitable for flux controller | false |
| Number of HW-interfaces RS-422 | 0 |
| Frequency measurement | false |
| Supporting protocol for SUCONET | false |
| Suitable for single-axis controller | false |
| Radio standard Bluetooth | false |
| Function block restart blockage | false |
| Suitable for detection absolute value | true |
| Suitable for flux measurement | false |
| Supporting protocol for DeviceNet Safety | false |
| Appendant operation agent (Ex ib) | false |
| Suitable for multi-axis control | false |
| Function block contactless working protection installation | false |
| Radio standard WLAN 802.11 | false |
| Supporting protocol for PROFINET CBA | false |
| Supporting protocol for SafetyBUS p | false |
| Suitable for safety functions | false |
| System accessory | true |
| Supporting protocol for INTERBUS | false |
| Explosion safety category for dust | None |
| Radio standard UMTS | false |
| Number of HW-interfaces other | 0 |
| Suitable for flying saw | false |
| Suitable for temperature control | false |
| Supply voltage DC | 20.4 V |
