Material ID: 6ES7138-4DC01-0AB0

Spare part

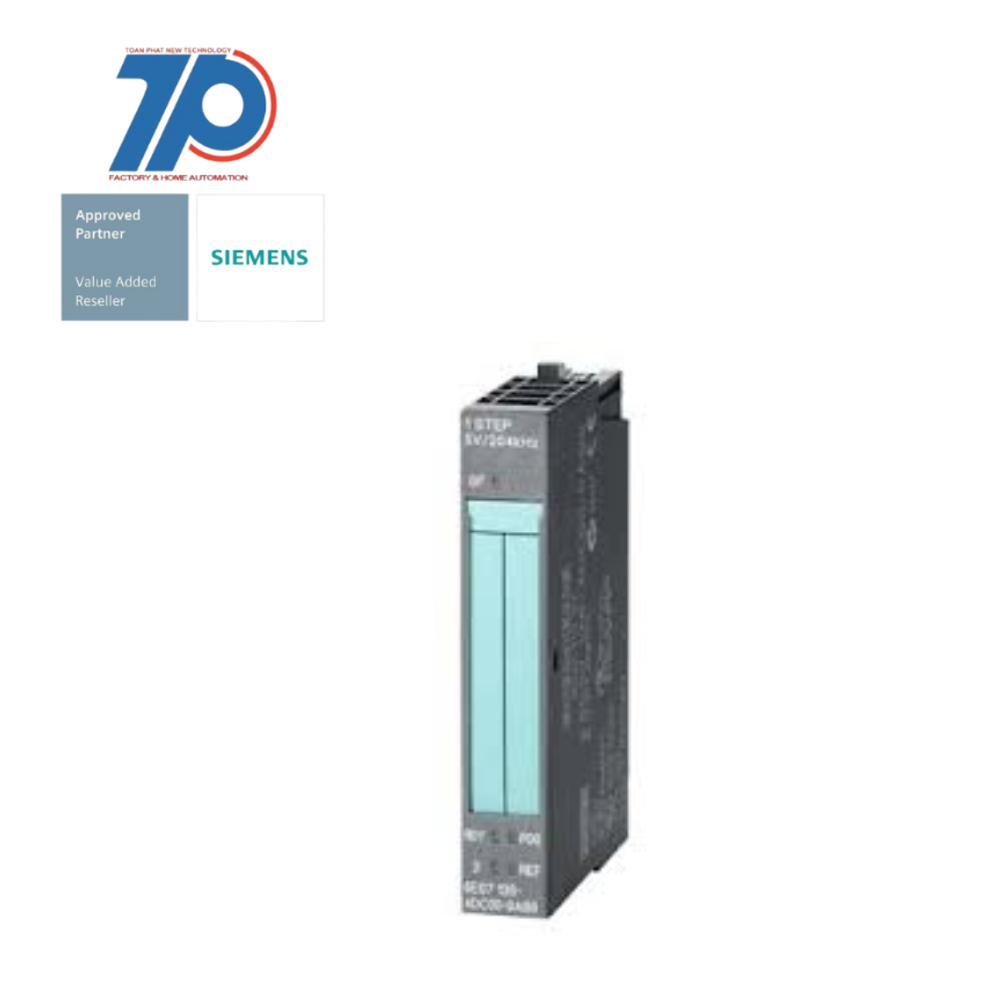

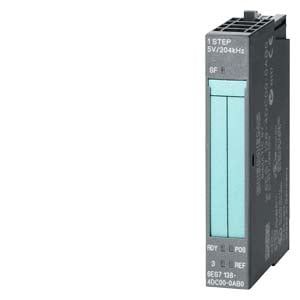

SIMATIC DP, Electronics module for ET 200S, 1 STEP 5 V/204 kHz for stepper motor positioning 15 mm wide, 1-channel +/-5 V interface to power unit

Technical Features

Commercial Benefits

    • Modularly scalable, distributed I/O system
    • Designed for installation in small control boxes near the machine
    • Modules can be plugged directly into an ET 200S IM with CPU functionality or connected to a central controller via PROFINET or PROFIBUS
    • Expandable with up to 64 I/O modules
    • Comprehensive range of modules
    • Modules available with a wide variety of characteristics, including standard functions (ST), extended range of functions and diagnostics (HF High Feature/ HS High Speed)
    • Easy application with capability of swapping modules and terminal boxes during operation
    • Increased availability and productivity of the machine due to "hot swapping"
    • Enhanced scalability in terms of functionality and price
    • Improved machine availability and productivity
Additional Information

Support

Technical Data

Manuals / Links







Thông số kỹ thuật
FEATUREVALUE
Suitable for NCfalse
Supporting protocol for other bus systemsfalse
Suitable for multi-axis positioningfalse
Suitable for SSIfalse
Supporting protocol for SafetyBUS pfalse
Suitable for incremental data detectionfalse
Number of HW-interfaces RS-4222
Number of HW-interfaces RS-2320
Radio standard GPRSfalse
Suitable for path controllerfalse
Number of HW-interfaces parallel0

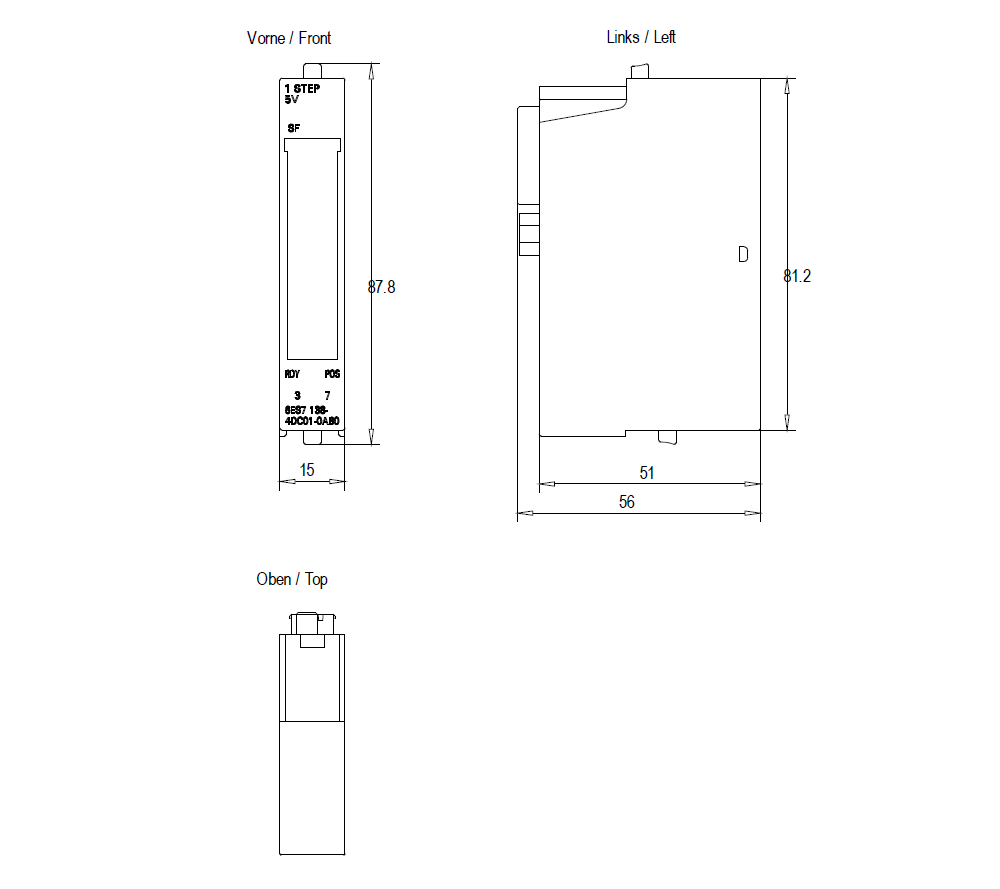

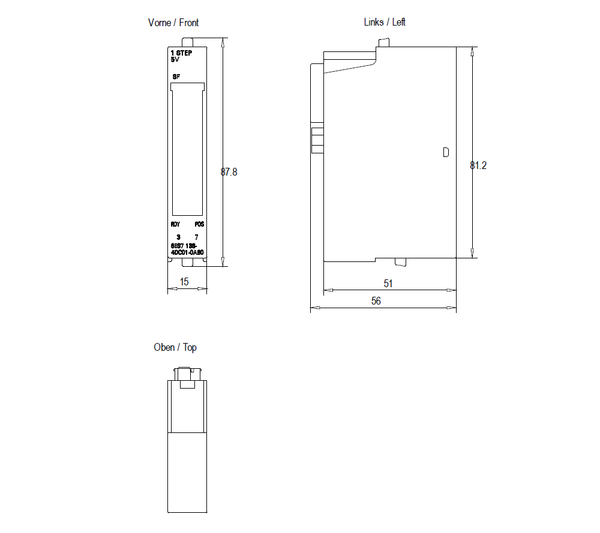

Depth52 mm
Supporting protocol for DeviceNetfalse
Suitable for weighingfalse
Explosion safety category for dustNone
Function block affirm pushbuttonfalse
Width15 mm
Appendant operation agent (Ex ia)false
Supply voltage DC19.2 V
Supporting protocol for AS-Interface Safety at Workfalse
Fieldbus connection over separate bus coupler possiblefalse
Supply voltage DC28.8 V
Suitable for welding controlfalse
Supporting protocol for LONfalse
Suitable for CNCfalse
Supporting protocol for PROFIBUSfalse
Supporting protocol for Foundation Fieldbusfalse
Function block 2-hand switchingfalse
Supporting protocol for CANfalse
Rack-assembly possiblefalse
Suitable for pressure controlfalse
Function block automatic resetfalse
Suitable for single-axis positioningtrue
Suitable for electronic positioningfalse
Supporting protocol for Modbusfalse
Number of HW-interfaces wireless0
Front built-in possiblefalse
Rail mounting possibletrue
Function block operating mode selectionfalse
Supporting protocol for PROFINET IOfalse
Wall mounting/direct mountingfalse
Function block access controlfalse
Suitable for flux controllerfalse
Height81 mm
Appendant operation agent (Ex ib)false
Number of HW-interfaces serial TTY0
Supporting protocol for SUCONETfalse
Supporting protocol for DeviceNet Safetyfalse
Suitable for cam controllerfalse
Number of interfaces PROFINET0
Suitable for multi-axis controlfalse
Function block contactless working protection installationfalse
Number of HW-interfaces other0
Supporting protocol for PROFINET CBAfalse
Radio standard GSMfalse
Contactor control function blockfalse
Number of HW-interfaces industrial Ethernet0
Suitable for single-axis controllerfalse
Radio standard Bluetoothfalse
Supporting protocol for ASIfalse
Frequency measurementfalse
Number of HW-interfaces USB0
Suitable for flux measurementfalse
Radio standard WLAN 802.11false
Function block restart blockagefalse
Number of HW-interfaces RS-4852
Supporting protocol for KNXfalse
Supporting protocol for EtherNet/IPfalse
Suitable for detection absolute valuefalse
IO link masterfalse
With optical interfacefalse
Supporting protocol for TCP/IPfalse
Function block emergency stopfalse
Supporting protocol for SERCOSfalse
Degree of protection (IP)IP20
Supporting protocol for Data-Highwayfalse
Suitable for countingfalse
Suitable for temperature controlfalse
System accessorytrue
Suitable for flying sawfalse
Voltage type (supply voltage)DC
Supporting protocol for INTERBUS-Safetyfalse
Radio standard UMTSfalse
Supporting protocol for INTERBUSfalse
