Material ID: 6ES7138-4DF01-0AB0
Spare part

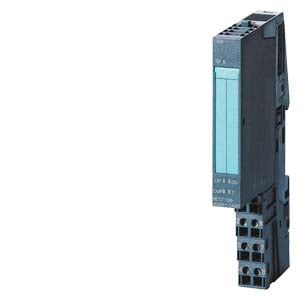

SIMATIC DP, Electronics module for ET 200S, 1 SI serial interface 1-channel, 15 mm width, RS232/422, 485 ASCII, 3964R
Technical Features
Commercial Benefits
- Modularly scalable, distributed I/O system
- Designed for installation in small control boxes near the machine
- Modules can be plugged directly into an ET 200S IM with CPU functionality or connected to a central controller via PROFINET or PROFIBUS
- Expandable with up to 64 I/O modules
- Comprehensive range of modules
- Modules available with a wide variety of characteristics, improving scalability in functionality and price
- Modules available with standard functions (ST), extended range of functions and diagnostics (HF High Feature/ HS High Speed)
- Easy application with capability of swapping modules and terminal boxes during operation
- Increased availability and productivity of the machine due to "hot swapping"
- Enhanced scalability in terms of functionality and price
- Improved availability and productivity of the machine
- Easy and convenient application
Additional Information
Support | Technical Data | Manuals / Links |
Thông số kỹ thuật
| FEATURE | VALUE |
| Appendant operation agent (Ex ia) | false |
| Appendant operation agent (Ex ib) | false |
| Supporting protocol for ASI | false |

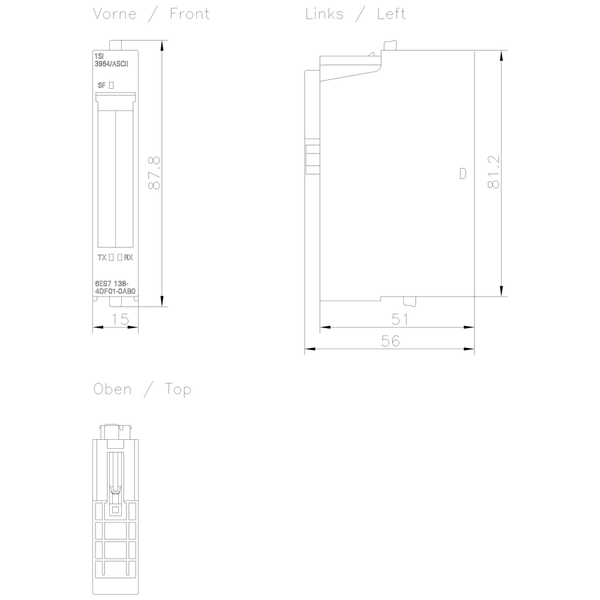

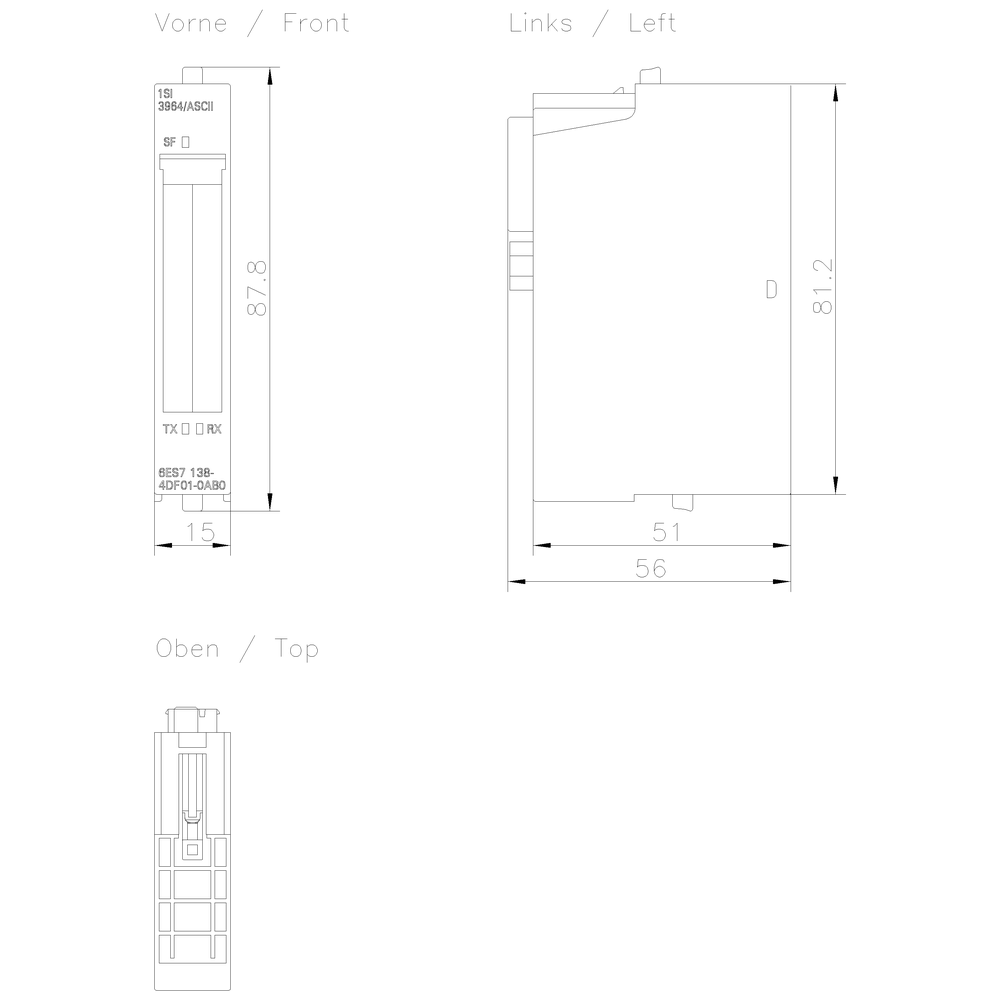

| Width | 15 mm |
| Radio standard Bluetooth | false |
| Radio standard GSM | false |
| Supporting protocol for INTERBUS | false |
| Depth | 52 mm |
| Rack-assembly possible | false |
| Front built-in possible | false |
| Radio standard WLAN 802.11 | false |
| Suitable for safety functions | false |
| Supporting protocol for SafetyBUS p | false |
| Supporting protocol for AS-Interface Safety at Work | false |
| Fieldbus connection over separate bus coupler possible | false |
| Supporting protocol for PROFIsafe | false |
| Radio standard GPRS | false |
| Supporting protocol for DeviceNet Safety | false |
| Rail mounting possible | true |
| Supporting protocol for LON | false |
| Supporting protocol for PROFINET CBA | false |
| Supply voltage DC | 20.4 V |
| Radio standard LTE | false |
| Supporting protocol for EtherNet/IP | false |
| Supporting protocol for Foundation Fieldbus | false |
| System accessory | true |
| Supporting protocol for Data-Highway | false |
| Supporting protocol for Modbus | false |
| With potential separation | true |
| Radio standard eGPRS | false |
| Radio standard UMTS | false |
| Supporting protocol for PROFINET IO | false |
| Supporting protocol for SUCONET | false |
| Supporting protocol for PROFIBUS | false |
| Degree of protection (IP) | IP20 |
| Supply voltage DC | 28.8 V |
| Voltage type (supply voltage) | DC |
| Supporting protocol for INTERBUS-Safety | false |
| IO link master | false |
| Height | 81 mm |
| Supporting protocol for KNX | false |
| Wall mounting/direct mounting | false |
| Supporting protocol for other bus systems | true |
| Supporting protocol for DeviceNet | false |
| Supporting protocol for TCP/IP | false |
| Supporting protocol for CAN | false |
| Supporting protocol for SERCOS | false |
