Material ID: 6ES7138-4FA04-0AB0

Spare part

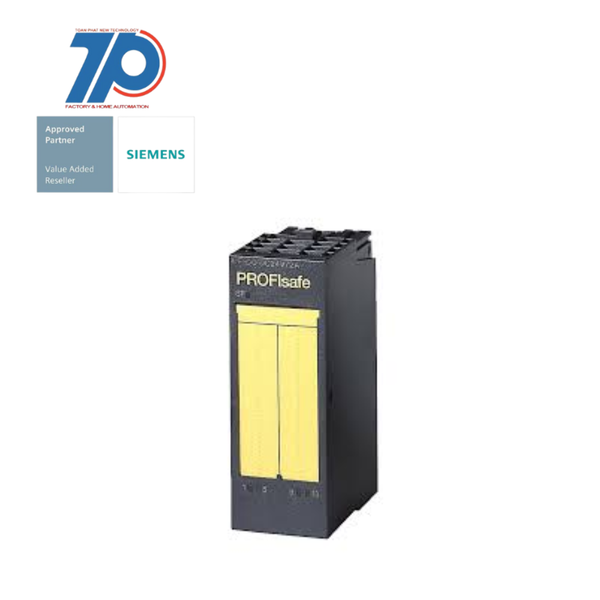

SIMATIC DP, Electronics module f. ET200S, 4/8 F-DI PROFIsafe, 24 V DC, 30 mm overall width, up to Category 4 (EN 954-1)/ SIL3 (IEC61508)/PLE (ISO13849), can also be used in PROFINET configuration with IM 151-3 HF

    Additional Information

    Support

    Technical Data

    Manuals / Links







    Thông số kỹ thuật
    FEATUREVALUE
    Wall mounting/direct mountingtrue
    Supply voltage DC20.4 V
    Radio standard UMTSfalse
    Number of interfaces PROFINET0
    Digital inputs configurabletrue
    Supporting protocol for Data-Highwayfalse
    Supporting protocol for LONfalse
    Time delay at signal change17 ms
    With optical interfacefalse
    Radio standard WLAN 802.11false
    Supporting protocol for PROFINET CBAfalse
    Number of HW-interfaces serial TTY0
    Fieldbus connection over separate bus coupler possibletrue
    Voltage type (supply voltage)DC
    Supporting protocol for INTERBUS-Safetyfalse
    Number of HW-interfaces USB0
    Radio standard Bluetoothfalse
    Supporting protocol for PROFINET IOfalse
    Rail mounting possibletrue
    Supporting protocol for DeviceNetfalse
    Permitted voltage at input30 V
    Type of digital outputNone
    Supporting protocol for AS-Interface Safety at Workfalse
    Supporting protocol for SafetyBUS pfalse
    Suitable for safety functionstrue
    Radio standard GPRSfalse
    Type of voltage (input voltage)DC
    Supporting protocol for Foundation Fieldbusfalse
    Rack-assembly possiblefalse
    Number of HW-interfaces RS-4220
    Number of HW-interfaces RS-2320
    Supporting protocol for EtherNet/IPfalse
    Number of digital outputs0
    Number of digital inputs8
    Supporting protocol for KNXfalse
    Number of HW-interfaces wireless0
    Depth52 mm
    Number of HW-interfaces RS-4850
    Number of HW-interfaces other0
    Appendant operation agent (Ex ib)false
    Supporting protocol for SUCONETfalse
    System accessorytrue
    Supporting protocol for Modbusfalse
    Input current at signal 13.7 mA
    Width30 mm
    Supporting protocol for ASIfalse
    Supporting protocol for CANfalse
    Number of HW-interfaces parallel0
    Time delay at signal change0.3 ms
    Appendant operation agent (Ex ia)false
    Supply voltage DC28.8 V
    Supporting protocol for PROFIsafetrue
    Height81 mm
    Degree of protection (IP)IP20
    Supporting protocol for other bus systemsfalse
    Supporting protocol for SERCOSfalse
    IO link masterfalse
    Number of HW-interfaces industrial Ethernet0
    Supporting protocol for PROFIBUSfalse
    Supporting protocol for DeviceNet Safetyfalse
    Front built-in possibletrue
    Permitted voltage at input-30 V
    Supporting protocol for INTERBUSfalse
    Radio standard GSMfalse
