Material ID: 6ES7138-4FA05-0AB0

Spare part

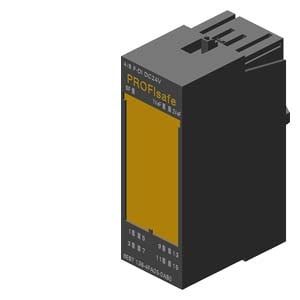

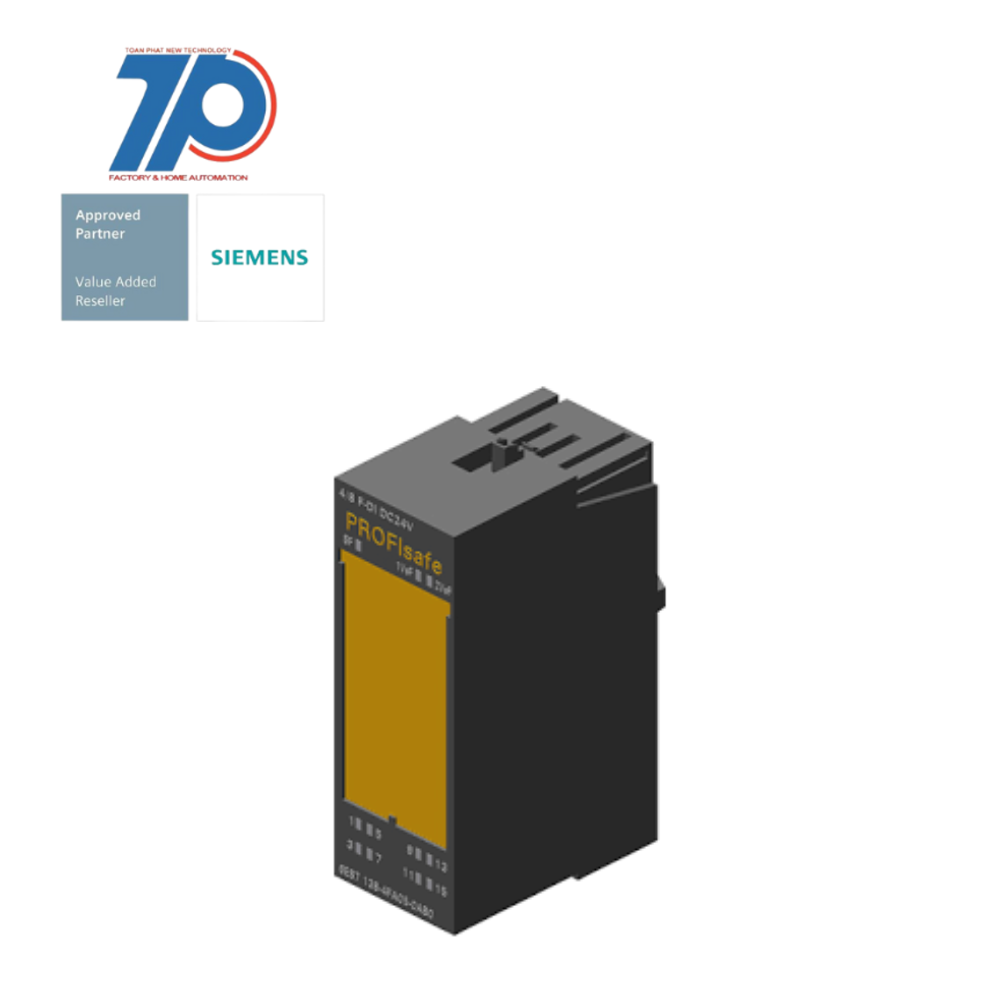

SIMATIC DP, Electronics module f. ET200S, 4/8 F-DI PROFIsafe, 24 V DC, 30 mm overall width, up to PL E (ISO 13849), Up to SIL3 (IEC 61508), can also be used in PROFINET configuration with IM 151-3 HF

SIMATIC ET 200S is a modularly scalable, distributed I/O system that is specially designed for installation in small control boxes near the machine. The modules can either be plugged directly into an ET 200S IM with CPU functionality or connected to a central controller via PROFINET or PROFIBUS. SIMATIC ET 200S can be expanded with up to 64 I/O modules, which can be inserted in any combination. The system provides a comprehensive range of modules. Many modules are also available with a wide variety of characteristics, which considerably improve the scalability in regard to functionality and price. Thus, in addition to modules with standard functions (ST), modules with an extended range of functions and diagnostics (HF High Feature/ HS High Speed) are also available. The advantage of the ET 200S system is in its ease of application, such as through the capability of swapping modules and terminal boxes during operation. The availability and productivity of the machine are considerably increased due to the so-called "hot swapping".

    Additional Information

    Support

    Technical Data

    Manuals / Links





    Thông số kỹ thuật
    FEATUREVALUE
    Supporting protocol for PROFIBUStrue

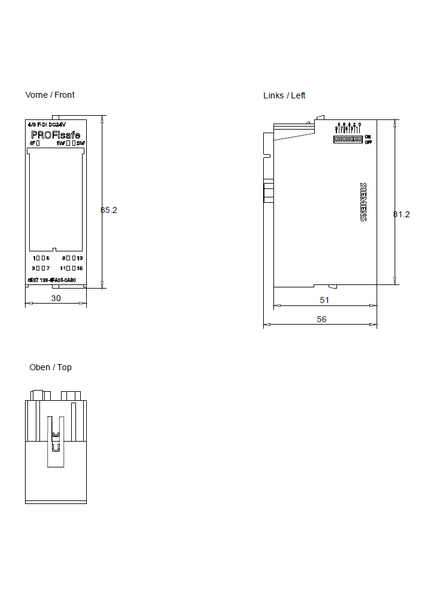

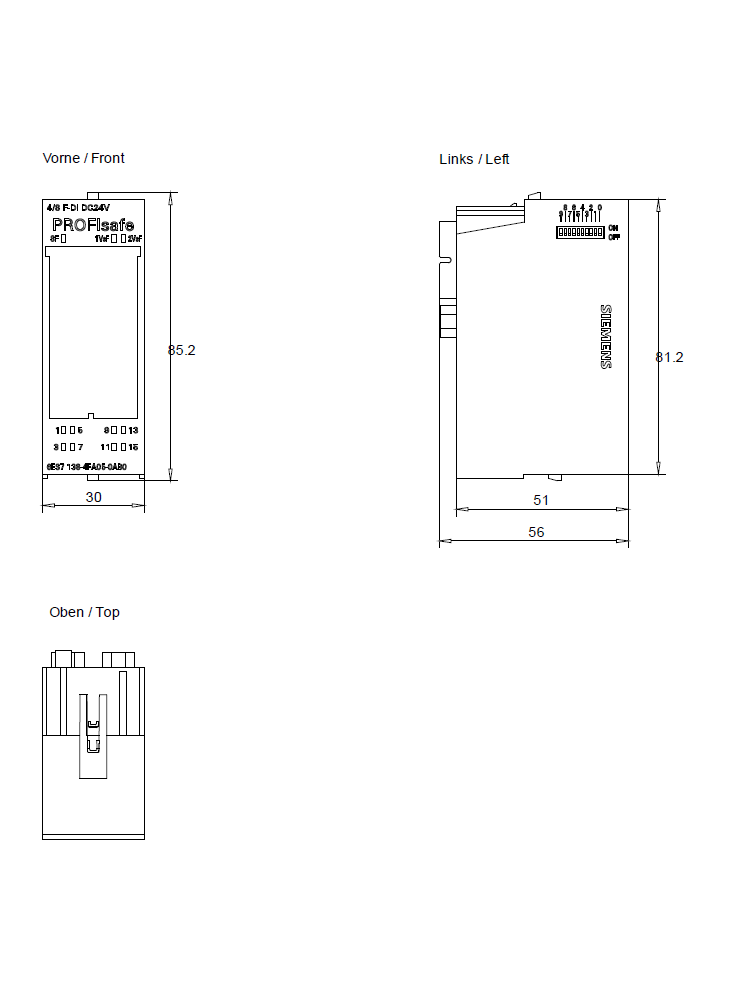

    Height81 mm
    Number of HW-interfaces USB0
    With optical interfacefalse
    Rack-assembly possiblefalse
    Radio standard Bluetoothfalse
    Width30 mm
    Depth52 mm
    Type of voltage (input voltage)DC
    Supply voltage DC28.8 V
    Appendant operation agent (Ex ia)false
    Rail mounting possibletrue
    Suitable for safety functionstrue
    Supporting protocol for ASIfalse
    Front built-in possiblefalse
    Input current at signal 13.7 mA
    Time delay at signal change0.3 ms
    Number of HW-interfaces wireless0
    Supporting protocol for KNXfalse
    Supporting protocol for PROFIsafetrue
    Wall mounting/direct mountingfalse
    Number of HW-interfaces RS-4850
    Supporting protocol for Modbusfalse
    Supporting protocol for INTERBUSfalse
    System accessorytrue
    Supporting protocol for Foundation Fieldbusfalse
    Supporting protocol for SUCONETfalse
    Radio standard GPRSfalse
    Number of HW-interfaces RS-4220
    Permitted voltage at input-30 V
    Supporting protocol for CANfalse
    Digital inputs configurabletrue
    Number of digital outputs0
    Number of HW-interfaces parallel0
    Number of digital inputs8
    IO link masterfalse
    Supporting protocol for PROFINET IOtrue
    Degree of protection (IP)IP20
    Voltage type (supply voltage)DC
    Supporting protocol for INTERBUS-Safetyfalse
    Number of HW-interfaces serial TTY0
    Number of interfaces PROFINET0
    Radio standard UMTSfalse
    Fieldbus connection over separate bus coupler possibletrue
    Supporting protocol for other bus systemsfalse
    Supporting protocol for Data-Highwayfalse
    Supporting protocol for SafetyBUS pfalse
    Number of HW-interfaces industrial Ethernet0
    Supporting protocol for SERCOSfalse
    Radio standard WLAN 802.11false
    Supporting protocol for AS-Interface Safety at Workfalse
    Radio standard GSMfalse
    Number of HW-interfaces RS-2320
    Supporting protocol for PROFINET CBAfalse
    Supporting protocol for LONfalse
    Appendant operation agent (Ex ib)false
    Supporting protocol for DeviceNet Safetyfalse
    Supporting protocol for TCP/IPfalse
    Supporting protocol for DeviceNetfalse
    Type of digital outputNone
    Time delay at signal change17 ms
    Supporting protocol for EtherNet/IPfalse
    Supply voltage DC20.4 V
    Number of HW-interfaces other0
    Permitted voltage at input30 V
