Material ID: 6ES7138-4FB03-0AB0

Spare part

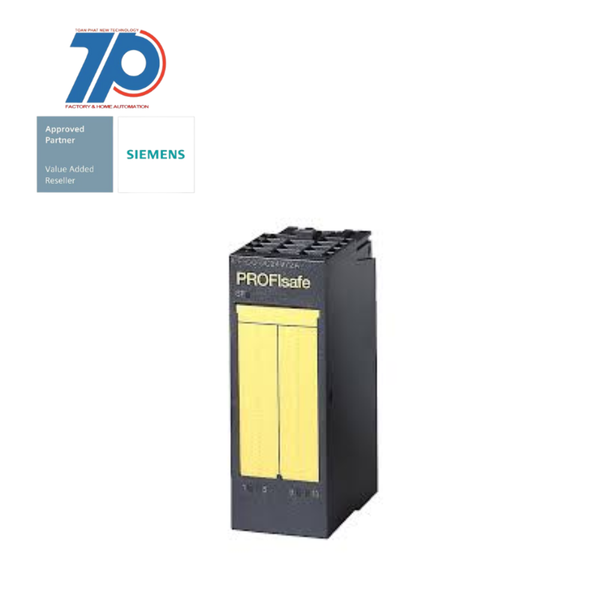

SIMATIC DP, Electronics module f. ET200S, 4 F-DO PROFIsafe, 24 V DC/2 A, 30 mm overall width, up to Category 4 (EN 954-1)/ SIL3 (IEC61508)/PLE (ISO13849), can also be used in PROFINET configuration with IM 151-3 HF

Technical Features:

Commercial Benefits:

    • Module Type: Electronics module
    • Compatibility: ET200S
    • Number of F-DO PROFIsafe: 4
    • Voltage: 24 V DC
    • Current: 2 A
    • Overall Width: 30 mm
    • Safety Certifications: Category 4 (EN 954-1), SIL3 (IEC61508), PLE (ISO13849)
    • PROFINET Configuration: Compatible with IM 151-3 HF
    • Highly reliable and safe
    • Compact design with a width of 30 mm
    • Flexible usage in various configurations
    • Compatible with PROFINET
Additional Information

Support

Technical Data

Manuals / Links







Thông số kỹ thuật
FEATUREVALUE
Supporting protocol for SUCONETfalse
Height81 mm
With optical interfacefalse
Radio standard Bluetoothfalse
Width30 mm
Number of HW-interfaces USB0
Number of interfaces PROFINET0
Number of HW-interfaces RS-4850
Permitted voltage at output17.4 V
Number of HW-interfaces wireless0
Radio standard GPRSfalse
Type of digital outputTransistor
Supporting protocol for ASIfalse
Number of HW-interfaces industrial Ethernet0
Supporting protocol for CANfalse
Supply voltage DC28.8 V
Supporting protocol for EtherNet/IPfalse
Permitted voltage at output25.8 V
Appendant operation agent (Ex ia)false
Radio standard GSMfalse
Supporting protocol for Modbusfalse
Front built-in possibletrue
Output current2 A
System accessorytrue
IO link masterfalse
Supporting protocol for SERCOSfalse
Radio standard WLAN 802.11false
Supporting protocol for PROFIsafetrue
Supporting protocol for PROFIBUSfalse
Supporting protocol for Foundation Fieldbusfalse
Suitable for safety functionstrue
Rail mounting possibletrue
Number of HW-interfaces serial TTY0
Fieldbus connection over separate bus coupler possibletrue
Radio standard UMTSfalse
Supporting protocol for DeviceNet Safetyfalse
Supporting protocol for Data-Highwayfalse
Degree of protection (IP)IP20
Supporting protocol for LONfalse
Digital outputs configurabletrue
Number of HW-interfaces RS-2320
Supporting protocol for other bus systemsfalse
Type of output voltageDC
Wall mounting/direct mountingtrue
Supply voltage DC20.4 V
Supporting protocol for KNXfalse
Supporting protocol for PROFINET IOfalse
Number of digital outputs4
Rack-assembly possiblefalse
Supporting protocol for DeviceNetfalse
Number of HW-interfaces RS-4220
Short-circuit protection, outputs availabletrue
Supporting protocol for INTERBUSfalse
Supporting protocol for AS-Interface Safety at Workfalse
Number of HW-interfaces parallel0
Supporting protocol for PROFINET CBAfalse
Depth52 mm
Supporting protocol for INTERBUS-Safetyfalse
Voltage type (supply voltage)DC
Number of HW-interfaces other0
Number of digital inputs0
Appendant operation agent (Ex ib)false
Supporting protocol for SafetyBUS pfalse
