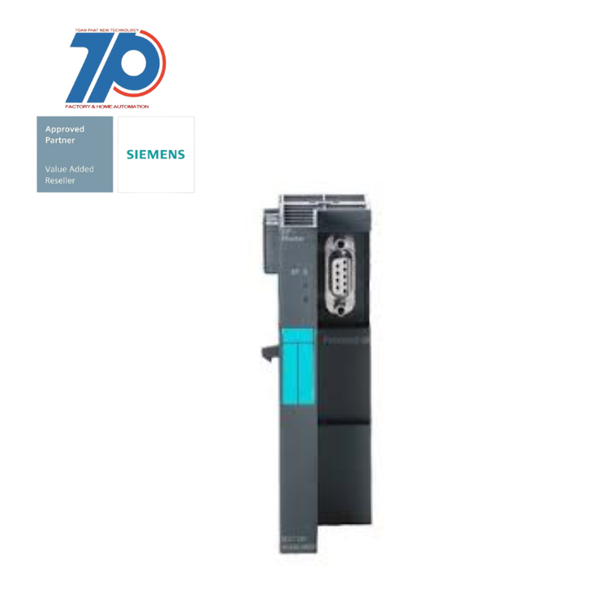

Material ID: 6ES7138-4HA00-0AB0

Spare Part: SIMATIC DP

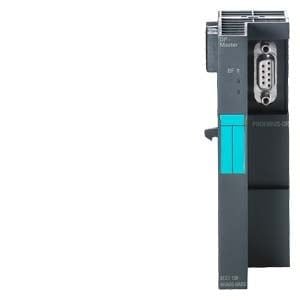

The SIMATIC DP is a spare part for the IM151-7 CPU or IM151-8 PN/DP (ET200S) module. It features a PROFIBUS DP interface with a 9-pole D-sub socket, serving as a DP master.

Technical Features

Commercial Benefits

The SIMATIC DP spare part offers a reliable and efficient solution for integrating the IM151-7 CPU or IM151-8 PN/DP (ET200S) module into your control system. With its modular and scalable design, it provides flexibility and ease of use. The comprehensive range of modules allows for customization and optimization of functionality. Additionally, the capability of swapping modules and terminal boxes during operation ensures minimal downtime and increased productivity. Upgrade your control system with the SIMATIC DP spare part and experience enhanced performance and efficiency.

    • Modularly scalable and distributed I/O system
    • Designed for installation in small control boxes near the machine
    • Modules can be plugged directly into an ET 200S IM with CPU functionality or connected to a central controller via PROFINET or PROFIBUS
    • Expandable with up to 64 I/O modules
    • Comprehensive range of modules with various characteristics
    • Modules available with standard functions (ST) or extended range of functions and diagnostics (HF High Feature/ HS High Speed)
    • Easy application with the capability of swapping modules and terminal boxes during operation
    • Improved scalability in terms of functionality and price
    • Increased availability and productivity of the machine due to "hot swapping"
Additional Information

Support

Technical Data

Manuals / Links







Thông số kỹ thuật
FEATUREVALUE
Supporting protocol for PROFINET IOfalse
Rack-assembly possiblefalse
Supporting protocol for Data-Highwayfalse
Radio standard Bluetoothfalse
Supporting protocol for PROFIBUStrue
Radio standard LTEfalse
Radio standard GPRSfalse
Supporting protocol for KNXfalse
Appendant operation agent (Ex ia)false
Supporting protocol for TCP/IPfalse
Supporting protocol for PROFIsafefalse
Wall mounting/direct mountingfalse
IO link masterfalse
With potential separationtrue
Supporting protocol for Modbusfalse
Radio standard WLAN 802.11false
Suitable for safety functionsfalse
Supporting protocol for CANfalse
Rail mounting possibletrue
System accessorytrue
Supporting protocol for DeviceNetfalse
Supporting protocol for SERCOSfalse
Supporting protocol for LONfalse

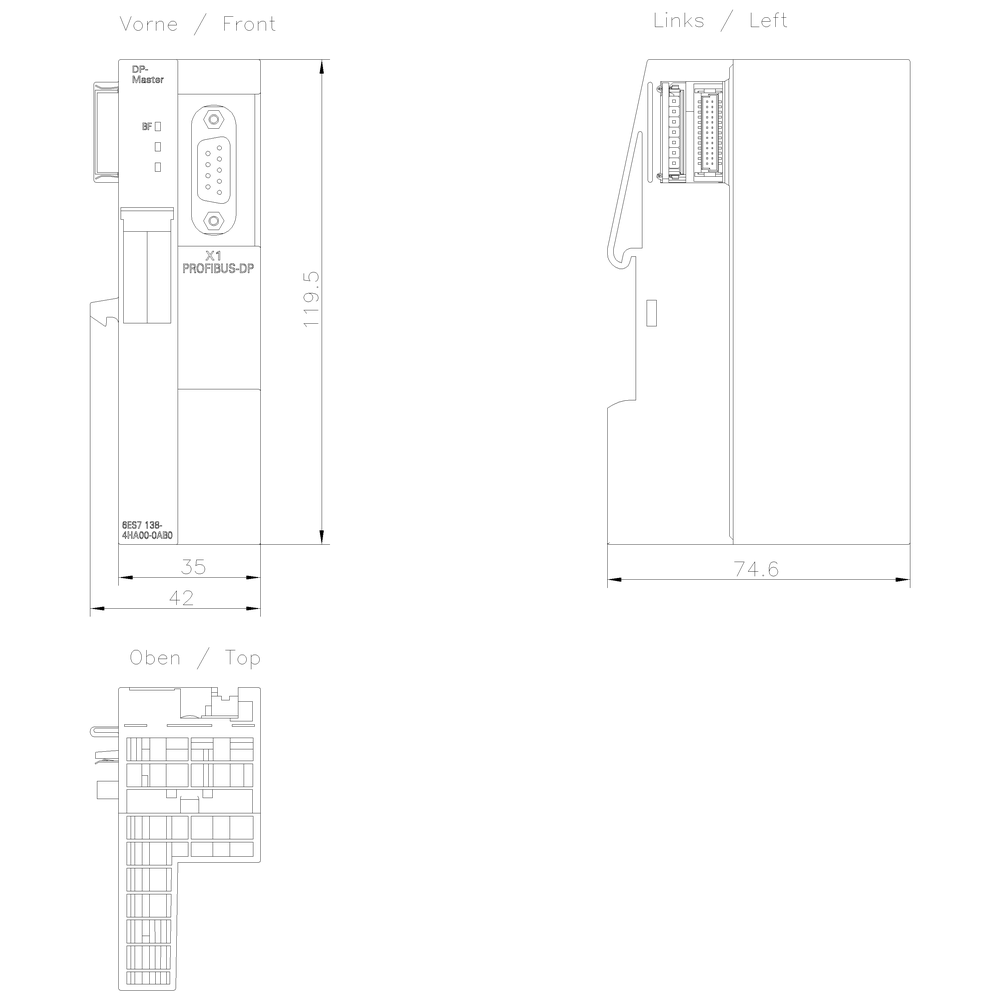

Width35 mm
Supporting protocol for DeviceNet Safetyfalse
Depth75 mm
Radio standard GSMfalse
Supporting protocol for AS-Interface Safety at Workfalse
Fieldbus connection over separate bus coupler possiblefalse
Supply voltage DC20.4 V
Supporting protocol for SUCONETfalse
Supporting protocol for EtherNet/IPfalse
Supporting protocol for other bus systemsfalse
Supply voltage DC28.8 V
Supporting protocol for INTERBUSfalse
Appendant operation agent (Ex ib)false
Height119.5 mm
Front built-in possiblefalse
Degree of protection (IP)IP20
Radio standard UMTSfalse
Supporting protocol for SafetyBUS pfalse
Supporting protocol for ASIfalse
Supporting protocol for INTERBUS-Safetyfalse
Voltage type (supply voltage)DC
Supporting protocol for PROFINET CBAfalse
Radio standard eGPRSfalse
