Material ID: 6ES7138-6BA00-0BA0

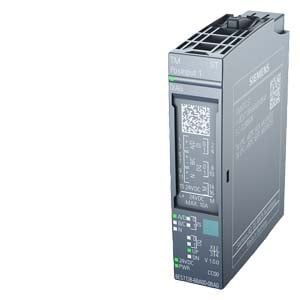

- SIMATIC ET 200SP, TM Posinput 1 counter and position decoder module for RS-422 incremental encoder or SSI absolute encoder, 2 DI, 2 DQ
- Modular, scalable, and highly flexible distributed I/O system
- Small footprint, well-suited for installation in small control boxes near the machine
- Modules can be plugged directly into an ET 200SP CPU or connected to a central controller via PROFINET or PROFIBUS
- Expandable with up to 64 I/O modules
- Comprehensive range of modules with different characteristics
- Modules available with standard functions (ST), extended functions and diagnostics (HF/HS), and basic functions (BA)
- Easy application with free selection of PROFINET connection technology, tool-free wiring, improved accessibility of wiring, and channel-precise diagnostic functions
- Capability of swapping modules and terminal boxes during operation
- Technology modules provide signal preprocessing for high-speed counting, exact measuring, position detection, and pulse width modulation
- Accessories available for maximum manageability in the control cabinet
Additional Information
Support | Technical Data | Manuals / Links |
Thông số kỹ thuật
| FEATURE | VALUE |
| Front built-in possible | false |
| Function block automatic reset | false |
| Supporting protocol for AS-Interface Safety at Work | false |
| Supporting protocol for SUCONET | false |
| Supporting protocol for SafetyBUS p | false |
| Supporting protocol for DeviceNet | false |
| Suitable for SSI | true |
| Supporting protocol for DeviceNet Safety | false |
| Contactor control function block | false |
| Supply voltage DC | 28.8 V |
| Fieldbus connection over separate bus coupler possible | false |
| Supporting protocol for CAN | false |
| Suitable for single-axis positioning | true |
| Supporting protocol for PROFINET IO | false |
| Suitable for multi-axis control | false |
| Function block contactless working protection installation | false |

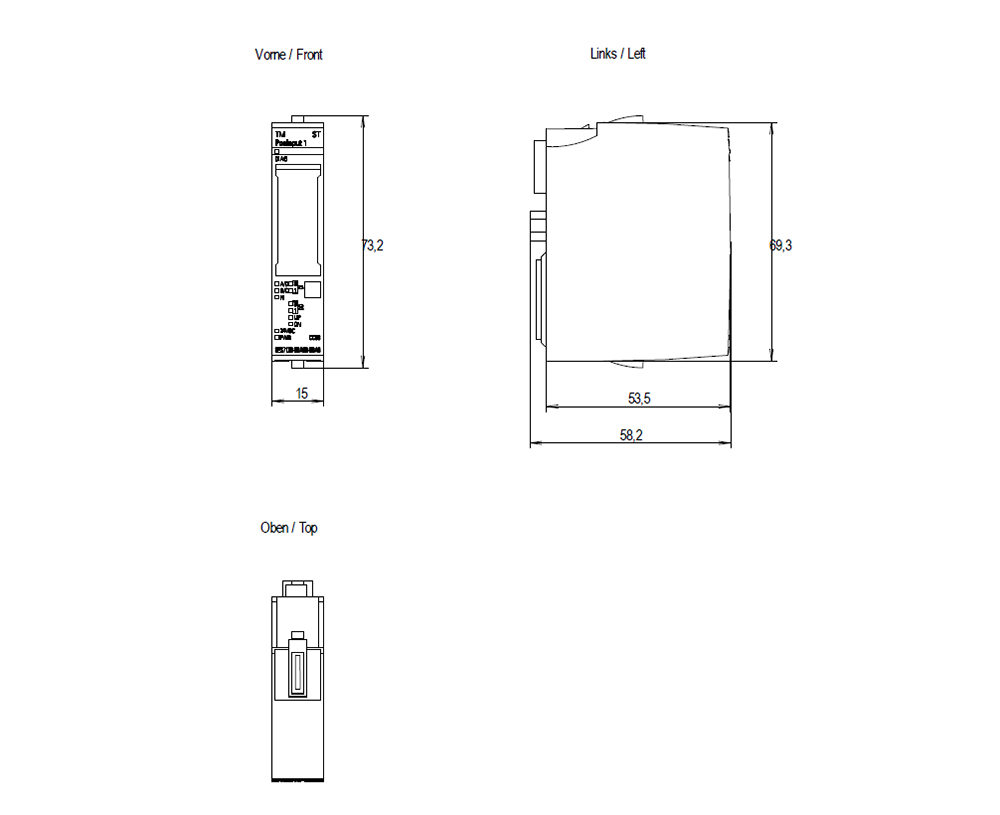

| Depth | 58 mm |
| Suitable for safety functions | false |
| Height | 73 mm |
| With optical interface | false |
| Suitable for incremental data detection | true |
| Suitable for temperature control | false |
| Suitable for flying saw | false |
| Function block affirm pushbutton | false |
| Width | 15 mm |
| System accessory | true |
| Explosion safety category for dust | None |
| Rack-assembly possible | false |
| Supporting protocol for Foundation Fieldbus | false |
| Function block 2-hand switching | false |
| Frequency measurement | true |
| Rail mounting possible | true |
| Radio standard Bluetooth | false |
| Supporting protocol for INTERBUS | false |
| Suitable for pressure control | false |
| Supporting protocol for other bus systems | false |
| Suitable for weighing | false |
| Radio standard GSM | false |
| Suitable for NC | false |
| Radio standard UMTS | false |
| Suitable for path controller | false |
| Supporting protocol for LON | false |
| Appendant operation agent (Ex ia) | false |
| Supply voltage DC | 19.2 V |
| Supporting protocol for ASI | false |
| Suitable for counting | true |
| Suitable for CNC | false |
| Supporting protocol for SERCOS | false |
| Function block access control | false |
| Function block restart blockage | false |
| Suitable for detection absolute value | true |
| Suitable for electronic positioning | true |
| Appendant operation agent (Ex ib) | false |
| Radio standard WLAN 802.11 | false |
| Suitable for multi-axis positioning | false |
| Degree of protection (IP) | IP20 |
| IO link master | false |
| Supporting protocol for TCP/IP | false |
| Function block emergency stop | false |
| Wall mounting/direct mounting | false |
| Suitable for welding control | false |
| Suitable for cam controller | false |
| Function block operating mode selection | false |
| Supporting protocol for INTERBUS-Safety | false |
| Voltage type (supply voltage) | DC |
| Supporting protocol for EtherNet/IP | false |
| Supporting protocol for KNX | false |
| Supporting protocol for Modbus | false |
| Supporting protocol for PROFIBUS | false |
| Radio standard GPRS | false |
| Supporting protocol for Data-Highway | false |
| Supporting protocol for PROFINET CBA | false |
| Suitable for flux measurement | false |
| Suitable for flux controller | false |
