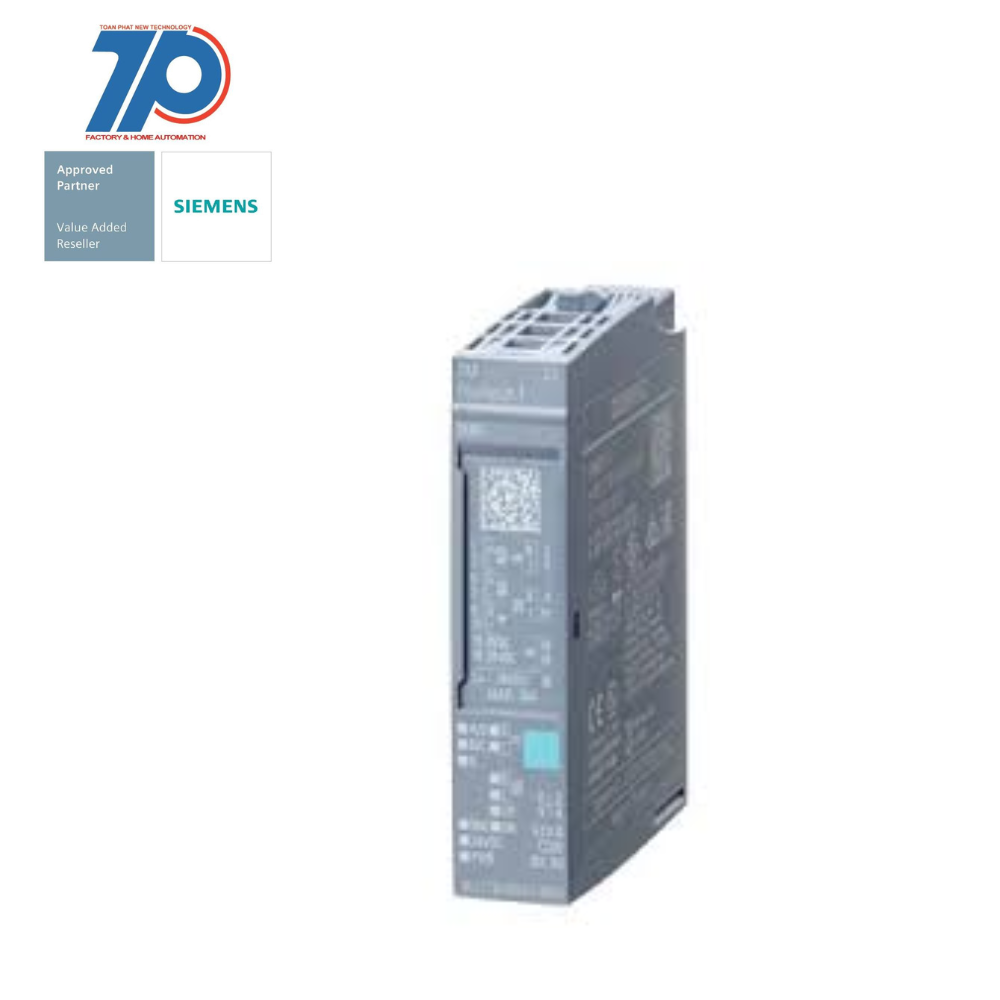

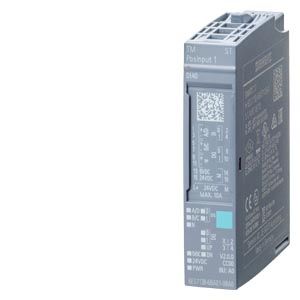

Material ID: 6ES7138-6BA01-2BA0
- SIMATIC ET 200SP features:
- TM Posinput 1 counter and position decoder module
- Compatible with RS-422 incremental encoder or SSI absolute encoder
- 2 DI, 2 DQ
- Suitable for BU type A0
- Pack quantity: 10 units
- Siemens offers a multifunctional and distributed I/O system
- Commissioned easily due to space-saving design
- Approved for IP20 protection and compact control box installation
- Hot swapping feature allows quick and easy module replacement
- SIMATIC ET 200SP communication methods:
- Wide range of different and fast communication methods
- Integrated MultiFieldbus interface module IM155-6MF
- Supports multiple Ethernet protocols for flexible application
- Simplified installation and service:
- Standardized identification system with equipment labeling plates
- Color-coded connector assignments
- Siemens guarantees future-proof investment:
- Integration of innovative and long-life
Additional Information
Support
- FAQ
- Siemens Support Portal
- Siemens EcoTechProfil (SEP)
- Application Example
- Sales Brochure
- 3D PDF
Technical Data
- Product Page
- Industry Mall
- Siemens Mall
- Certificates
- Technical Data Sheet
- Declaration of Conformity
Manuals / Links
- Manuals
- Product Note
- Download
- REACH Information
- Safety Data Sheet
- Environmental Product Declaration
Thông số kỹ thuật
| FEATURE | VALUE |
| Suitable for flux controller | false |
| Explosion safety category for dust | None |
| Suitable for incremental data detection | true |
| Supporting protocol for Foundation Fieldbus | false |
| Function block restart blockage | false |
| Radio standard GSM | false |
| Supporting protocol for EtherNet/IP | false |
| Degree of protection (IP) | IP20 |
| Supporting protocol for LON | false |
| Suitable for counting | true |
| Supporting protocol for INTERBUS | false |
| IO link master | false |
| Suitable for single-axis controller | false |
| Number of HW-interfaces RS-422 | 1 |
| Supporting protocol for TCP/IP | false |
| Supporting protocol for SUCONET | false |
| Suitable for SSI | true |
| Wall mounting/direct mounting | false |
| Suitable for CNC | false |
| Suitable for safety functions | false |
| Suitable for electronic positioning | true |
| Height | 73 mm |
| Supporting protocol for other bus systems | false |
| Suitable for NC | false |
| Function block emergency stop | false |
| Supply voltage DC | 19.2 V |
| Width | 15 mm |
| Rail mounting possible | true |
| Supporting protocol for KNX | false |
| Supporting protocol for SafetyBUS p | false |
| Rack-assembly possible | false |
| Supporting protocol for CAN | false |
| Function block affirm pushbutton | false |
| Suitable for cam controller | false |
| Contactor control function block | false |
| Supporting protocol for PROFIBUS | false |
| Supporting protocol for Modbus | false |
| Supporting protocol for PROFINET IO | false |
| Front built-in possible | false |
| Supporting protocol for AS-Interface Safety at Work | false |
| Suitable for welding control | false |
| Supporting protocol for DeviceNet Safety | false |
| Function block 2-hand switching | false |
| Supporting protocol for Data-Highway | false |
| Suitable for weighing | false |
| Appendant operation agent (Ex ia) | false |
| Suitable for path controller | false |
| Supporting protocol for ASI | false |
| Function block contactless working protection installation | false |
| Suitable for pressure control | false |
| Suitable for flux measurement | false |
| Supporting protocol for SERCOS | false |
| With optical interface | false |
| Supporting protocol for DeviceNet | false |
| Radio standard Bluetooth | false |
| Suitable for multi-axis positioning | false |
| Suitable for single-axis positioning | false |
| Supply voltage DC | 28.8 V |
| Voltage type (supply voltage) | DC |
| Supporting protocol for INTERBUS-Safety | false |
| Suitable for flying saw | false |
| Appendant operation agent (Ex ib) | false |
| Suitable for temperature control | false |
| System accessory | true |
| Depth | 58 mm |
| Suitable for multi-axis control | false |
| Function block access control | false |
| Suitable for detection absolute value | true |
| Radio standard WLAN 802.11 | false |
| Frequency measurement | true |
| Fieldbus connection over separate bus coupler possible | false |
| Radio standard GPRS | false |
| Function block operating mode selection | false |
| Supporting protocol for PROFINET CBA | false |
| Radio standard UMTS | false |
| Function block automatic reset | false |
