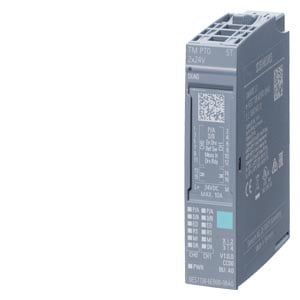

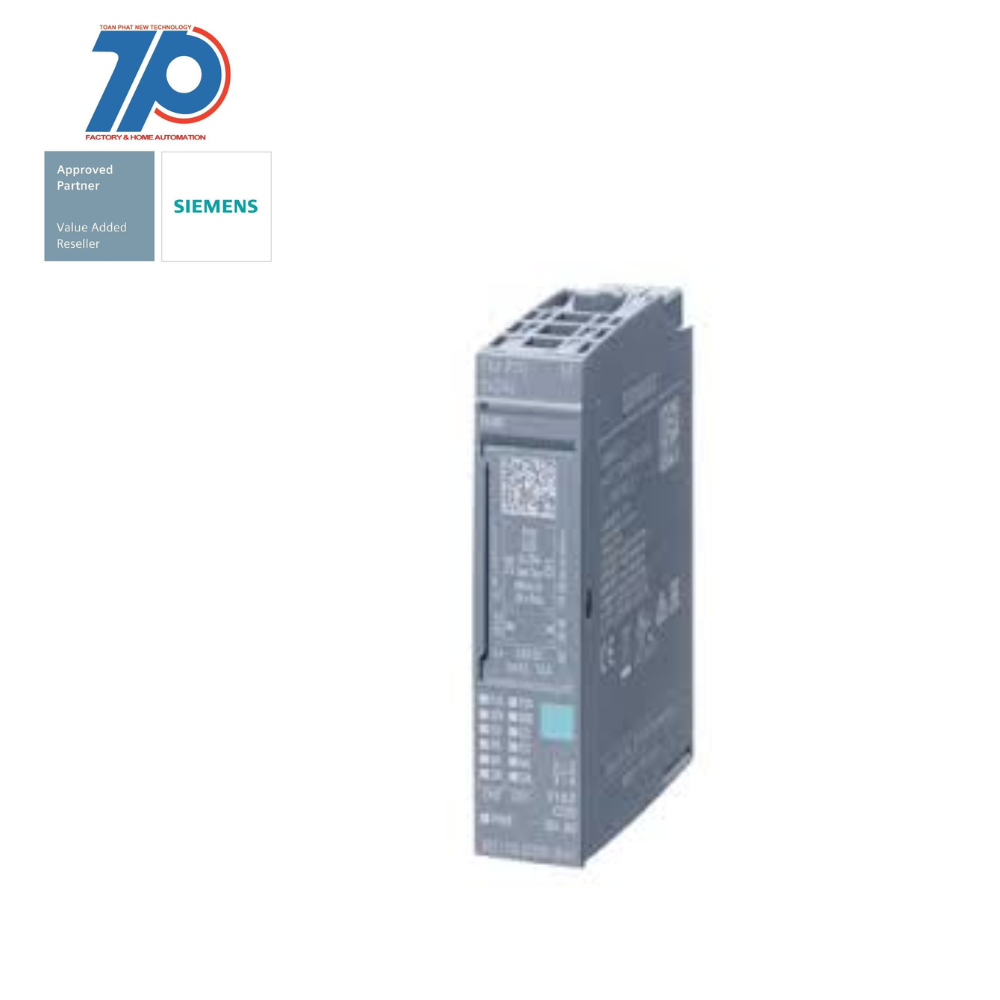

Material ID: 6ES7138-6EB00-0BA0
- SIMATIC ET 200SP, TM PTO 2x24 V
- Interface module for stepper drives
- 2 channels pulse train output
- PTO: 24 V, 2 DI, 1 DQ 24 V DC per channel
- Suitable for BU type A0
- Siemens offers a multifunctional and distributed I/O system with SIMATIC ET 200SP
- Commissioned easily due to space-saving design
- Approved for degree of protection IP20
- Installation in a compact control box
- Maximum flexibility with multi hot swapping feature
- Wide range of communication methods with SIMATIC ET 200SP
- MultiFieldbus interface module IM155-6MF for multiple Ethernet protocols
- Simplified installation and service with standardized identification system
- Equipment labeling plates and color-coded connector assignments
- Future-proof investment with innovative and long-life automation products from Siemens
- Guaranteed consistent data availability
Additional Information
Support
Technical Data
Manuals / Links
Thông số kỹ thuật
| FEATURE | VALUE |
| Supporting protocol for PROFINET IO | false |
| Voltage type (supply voltage) | DC |
| Fieldbus connection over separate bus coupler possible | false |
| Rail mounting possible | true |
| Supporting protocol for TCP/IP | false |
| Function block contactless working protection installation | false |
| Supporting protocol for INTERBUS | false |
| Supporting protocol for DeviceNet | false |
| Suitable for cam controller | false |
| Suitable for NC | false |
| Supporting protocol for CAN | false |
| Supporting protocol for EtherNet/IP | false |
| Suitable for welding control | false |
| Suitable for CNC | false |
| Supporting protocol for Data-Highway | false |
| System accessory | true |
| Function block automatic reset | false |
| Supply voltage DC | 28.8 V |
| Supporting protocol for other bus systems | false |
| Radio standard GSM | false |
| Radio standard UMTS | false |
| Supporting protocol for PROFINET CBA | false |
| IO link master | false |
| Radio standard GPRS | false |
| Contactor control function block | false |
| Supporting protocol for KNX | false |
| Supply voltage DC | 19.2 V |
| With optical interface | false |
| Depth | 58 mm |
| Function block operating mode selection | false |
| Radio standard Bluetooth | false |
| Supporting protocol for AS-Interface Safety at Work | false |
| Width | 15 mm |
| Suitable for pressure control | false |
| Suitable for flux measurement | false |
| Degree of protection (IP) | IP20 |
| Function block restart blockage | false |
| Supporting protocol for Foundation Fieldbus | false |
| Suitable for multi-axis control | false |
| Explosion safety category for dust | None |
| Suitable for flux controller | false |
| Function block 2-hand switching | false |
| Appendant operation agent (Ex ia) | false |
| Function block access control | false |
| Function block affirm pushbutton | false |
| Supporting protocol for Modbus | false |
| Supporting protocol for SERCOS | false |
| Wall mounting/direct mounting | false |
| Supporting protocol for SUCONET | false |
| Radio standard WLAN 802.11 | false |
| Supporting protocol for DeviceNet Safety | false |
| Suitable for path controller | false |
| Suitable for temperature control | false |
| Supporting protocol for INTERBUS-Safety | false |
| Supporting protocol for ASI | false |
| Function block emergency stop | false |
| Appendant operation agent (Ex ib) | false |
| Height | 73 mm |
| Supporting protocol for LON | false |
| Supporting protocol for PROFIBUS | false |
| Supporting protocol for SafetyBUS p | false |
