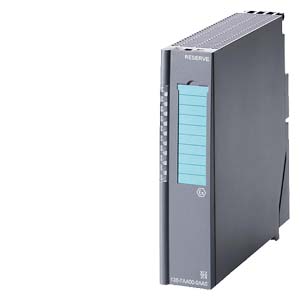

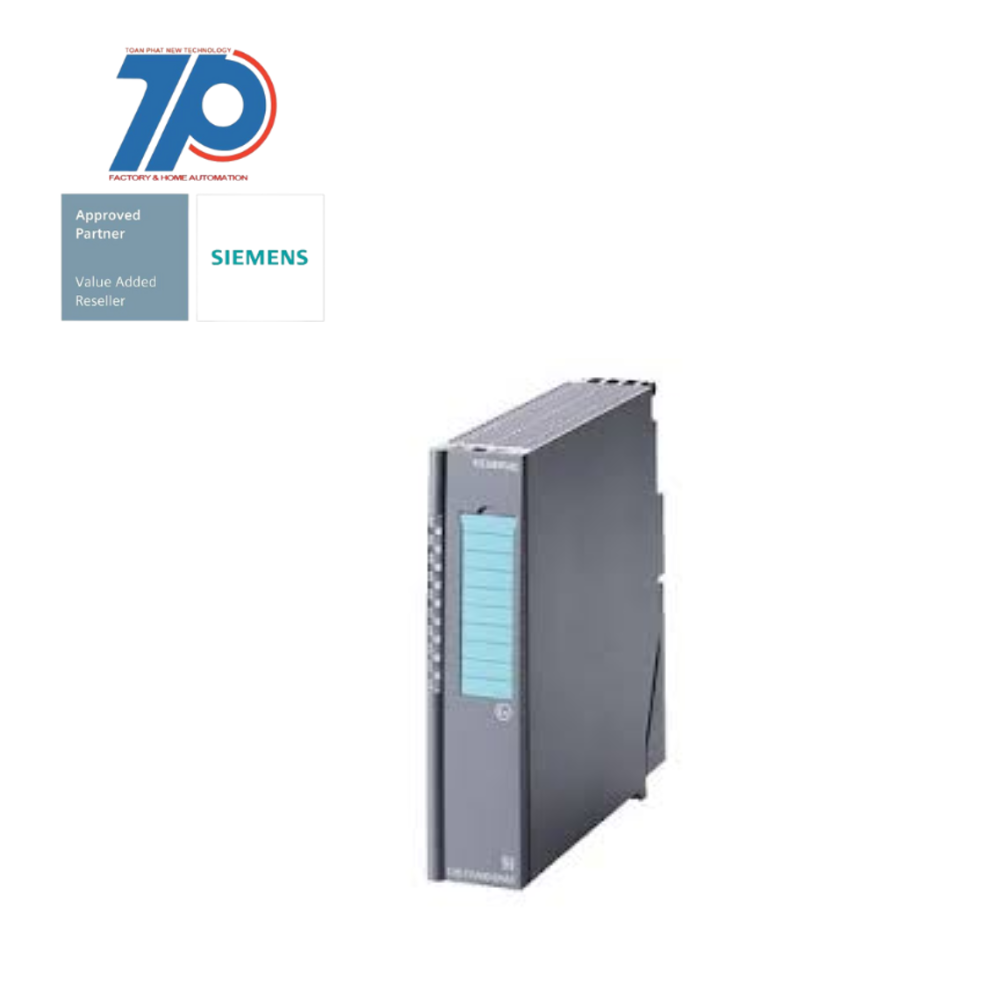

Material ID: 6ES7138-7BB00-0AB0SIMATIC DP Watchdog Module
SIMATIC DP Watchdog Module
Technical Features
Commercial Benefits
- SIMATIC DP: This module is part of the SIMATIC DP product line.
- Watchdog Module for ET200iSP: Specifically designed for use with the ET200iSP system.
- Ex ib IIC T4 Gb: Certified for use in hazardous environments with explosive gases (Zone 1) and dust (Zone 21).
- Ex ib I Mb: Suitable for use in hazardous environments with explosive gases (Zone 0) and dust (Zone 20).
- Enhanced Safety: The SIMATIC DP Watchdog Module provides reliable monitoring and control in hazardous environments.
- Efficient Operation: With its advanced features, this module ensures smooth and uninterrupted operation of the ET200iSP system.
- Compliance: The Ex ib IIC T4 Gb and Ex ib I Mb certifications ensure compliance with safety standards in hazardous environments.
Additional Information
Support | Technical Data | Manuals / Links |
Thông số kỹ thuật
| FEATURE | VALUE |
| Degree of protection (IP) | IP30 |
| Number of HW-interfaces USB | 0 |
| With optical interface | false |
| Rack-assembly possible | false |
| Radio standard Bluetooth | false |
| Width | 30 mm |
| Type of voltage (input voltage) | DC |
| Supply voltage DC | 28.8 V |
| Front built-in possible | true |
| Appendant operation agent (Ex ia) | false |
| Rail mounting possible | true |
| Supporting protocol for ASI | false |
| Number of digital inputs | 0 |
| Depth | 136.5 mm |
| Number of HW-interfaces wireless | 0 |
| Number of HW-interfaces RS-485 | 0 |
| Supporting protocol for Modbus | false |
| Fieldbus connection over separate bus coupler possible | true |
| Supporting protocol for KNX | false |
| Supporting protocol for INTERBUS | false |
| System accessory | true |
| Supporting protocol for Foundation Fieldbus | false |
| Suitable for safety functions | false |
| Supporting protocol for SUCONET | false |
| Supporting protocol for PROFINET IO | false |
| Radio standard GPRS | false |
| Number of HW-interfaces RS-422 | 0 |
| Supporting protocol for CAN | false |
| Digital inputs configurable | true |
| Number of digital outputs | 0 |
| Number of HW-interfaces parallel | 0 |
| Appendant operation agent (Ex ib) | true |
| IO link master | false |
| Supporting protocol for INTERBUS-Safety | false |
| Voltage type (supply voltage) | DC |
| Number of HW-interfaces serial TTY | 0 |
| Number of interfaces PROFINET | 0 |
| Radio standard UMTS | false |
| Supporting protocol for PROFIsafe | false |
| Supporting protocol for other bus systems | false |
| Supporting protocol for Data-Highway | false |
| Supporting protocol for SafetyBUS p | false |
| Number of HW-interfaces industrial Ethernet | 0 |
| Supporting protocol for SERCOS | false |
| Supporting protocol for PROFIBUS | false |
| Radio standard WLAN 802.11 | false |
| Supporting protocol for AS-Interface Safety at Work | false |
| Radio standard GSM | false |
| Number of HW-interfaces RS-232 | 0 |
| Supply voltage DC | 20.4 V |
| Supporting protocol for PROFINET CBA | false |
| Supporting protocol for LON | false |
| Wall mounting/direct mounting | true |
| Supporting protocol for DeviceNet Safety | false |
| Supporting protocol for DeviceNet | false |
| Height | 129 mm |
| Supporting protocol for EtherNet/IP | false |
| Number of HW-interfaces other | 0 |
