Material ID: 6ES7138-7FA00-0AB0

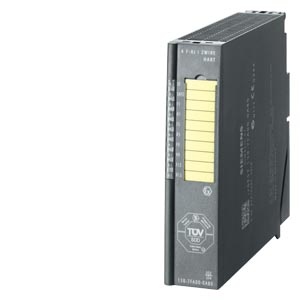

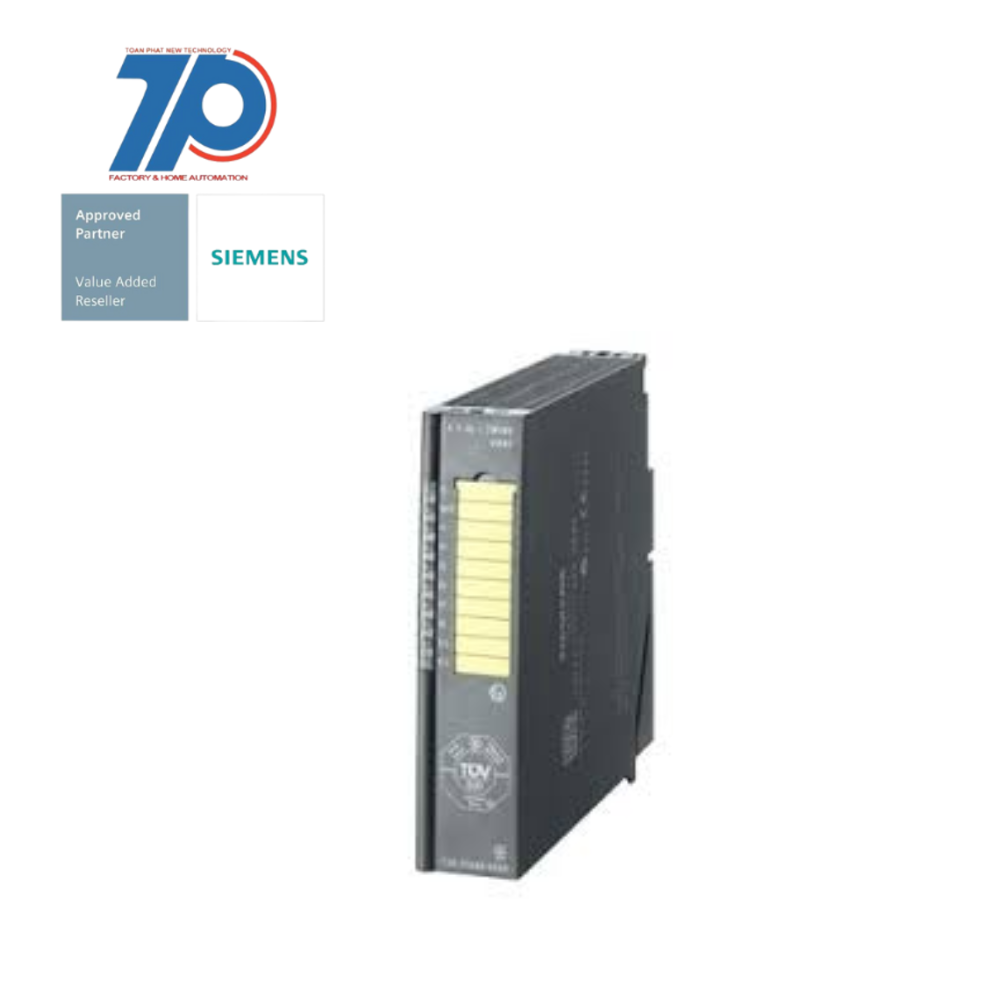

SIMATIC DP, fail-safe electronics module for ET200iSP, 4F-AI HART Ex I
The SIMATIC DP is a fail-safe electronics module designed specifically for the ET200iSP system. It is equipped with 4F-AI HART Ex I capability, allowing it to connect with (HART) 2-wire measuring transducers. The module supports HART protocol Version 7.0.
With a safety rating of up to Category 4 (EN954-1), SIL3 (IEC61508), and PLE (ISO13849), the SIMATIC DP ensures reliable and secure operation. It is suitable for use in hazardous environments, with certifications including Ex ib (ia Ga) IIC T4 Gb, Ex ib [ia IIIC Da] IIC T4 Gb, and Ex ib [ia] I Mb.
Commercial Benefits
The fail-safe electronics module offers enhanced safety and reliability, making it ideal for applications that require high levels of protection. Its compatibility with the ET200iSP system allows for seamless integration and easy installation.
By supporting HART protocol Version 7.0, the module enables efficient communication with (HART) 2-wire measuring transducers, enhancing data acquisition and control capabilities.
The SIMATIC DP's certifications for hazardous environments ensure compliance with safety standards, providing peace of mind and reducing the risk of accidents.
Additional Information
Support | Technical Data | Manuals / Links |
Thông số kỹ thuật
| FEATURE | VALUE |
| Degree of protection (IP) | IP30 |
| Number of HW-interfaces serial TTY | 0 |
| Supply voltage DC | 30 V |
| Radio standard Bluetooth | false |
| Supporting protocol for TCP/IP | false |
| Input, current | true |
| Wall mounting/direct mounting | true |
| Input, resistor | false |
| Radio standard GSM | false |
| IO link master | false |
| Front built-in possible | true |
| Supply voltage DC | 19.2 V |
| Supporting protocol for other bus systems | false |
| Supporting protocol for AS-Interface Safety at Work | false |
| Resolution of the analogue inputs | 16 Bit |
| Input signal, configurable | true |
| Number of HW-interfaces parallel | 0 |
| Radio standard UMTS | false |
| Number of HW-interfaces other | 0 |
| Radio standard WLAN 802.11 | false |
| Supporting protocol for SafetyBUS p | false |
| Supporting protocol for KNX | false |
| Input, voltage | false |

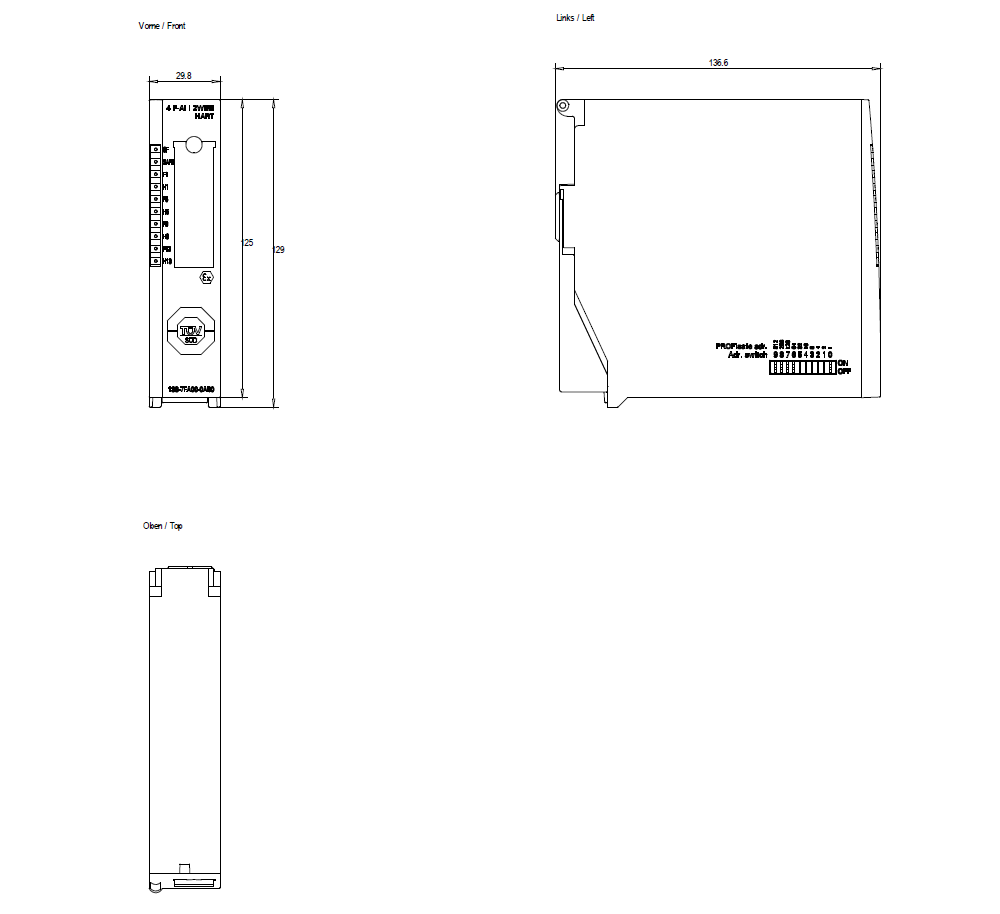

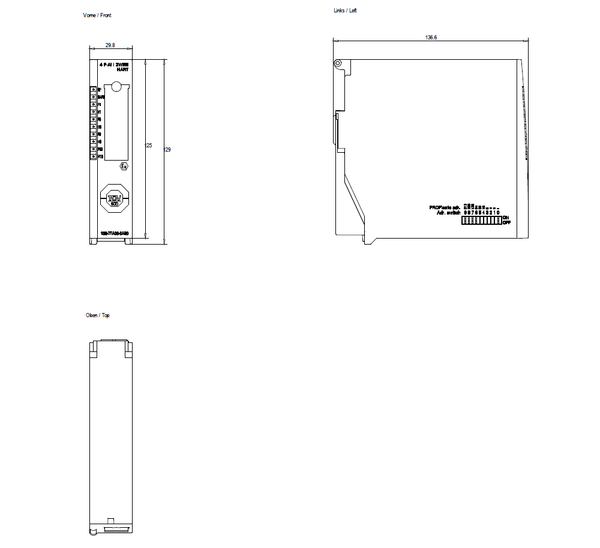

| Depth | 136.5 mm |
| Supporting protocol for INTERBUS | false |
| Appendant operation agent (Ex ia) | true |
| Supporting protocol for Foundation Fieldbus | false |
| Supporting protocol for DeviceNet | false |
| Number of HW-interfaces RS-422 | 0 |
| Number of HW-interfaces USB | 0 |
| Supporting protocol for PROFINET CBA | false |
| Supporting protocol for SUCONET | false |
| Number of analogue inputs | 4 |
| Supporting protocol for DeviceNet Safety | false |
| Rail mounting possible | true |
| Supporting protocol for SERCOS | false |
| Analogue inputs configurable | true |
| Number of HW-interfaces RS-485 | 0 |
| Supporting protocol for EtherNet/IP | false |
| Fieldbus connection over separate bus coupler possible | true |
| Supporting protocol for Data-Highway | false |
| Number of analogue outputs | 0 |
| Input, thermocouple | false |
| Number of HW-interfaces wireless | 0 |
| Appendant operation agent (Ex ib) | true |
| Supporting protocol for Modbus | false |
| Width | 30 mm |
| Rack-assembly possible | false |
| Supporting protocol for PROFINET IO | false |
| Number of HW-interfaces industrial Ethernet | 0 |
| Supporting protocol for PROFIBUS | false |
| Number of HW-interfaces RS-232 | 0 |
| Number of interfaces PROFINET | 0 |
| Supporting protocol for ASI | false |
| Radio standard GPRS | false |
| Supporting protocol for CAN | false |
| Voltage type (supply voltage) | DC |
| Supporting protocol for INTERBUS-Safety | false |
| Height | 129 mm |
| Supporting protocol for PROFIsafe | true |
| Suitable for safety functions | true |
| Supporting protocol for LON | false |
| Input, resistance thermometer | false |
| System accessory | true |
