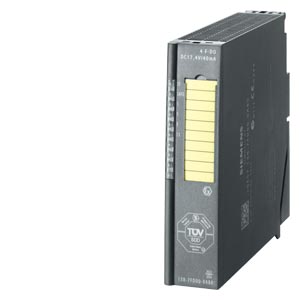

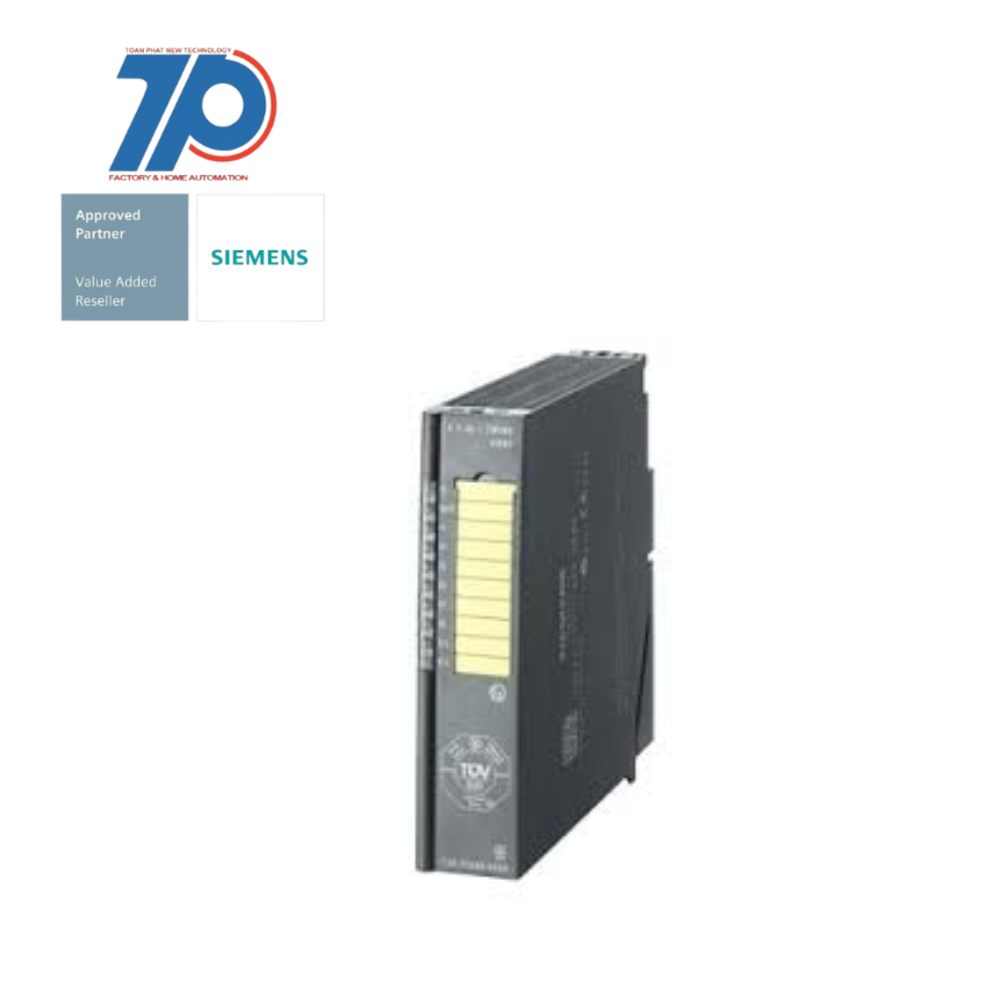

Material ID: 6ES7138-7FD00-0AB0

SIMATIC DP

Fail-safe electronics module for ET200iSP

Technical Features:

Commercial Benefits:

    • 4F-DO 17.4V/40mA Ex I
    • Up to Category 4 (EN954-1)/ SIL3 (IEC61508)/PLE (ISO13849)
    • Ex ib (ia Ga) IIC T4 Gb
    • Ex ib [ia IIIC Da] IIC T4 Gb
    • Ex ib [ia] I Mb
    • Fail-safe electronics module
    • Designed for ET200iSP
    • 4F-DO with 17.4V/40mA Ex I
    • Up to Category 4 (EN954-1)/ SIL3 (IEC61508)/PLE (ISO13849)
    • Ex ib (ia Ga) IIC T4 Gb
    • Ex ib [ia IIIC Da] IIC T4 Gb
    • Ex ib [ia] I Mb
    • Enhanced safety with fail-safe electronics
    • Compatible with ET200iSP
    • Reliable 4F-DO with 17.4V/40mA Ex I
    • Meets up to Category 4 (EN954-1)/ SIL3 (IEC61508)/PLE (ISO13849) standards
    • Suitable for Ex ib (ia Ga) IIC T4 Gb environments
    • Also suitable for Ex ib [ia IIIC Da] IIC T4 Gb environments
    • Can be used in Ex ib [ia] I Mb environments
Additional Information

Support

Technical Data

Manuals / Links





Thông số kỹ thuật
FEATUREVALUE
Number of HW-interfaces parallel0
Permitted voltage at output17.4 V
Degree of protection (IP)IP20
System accessorytrue
Supporting protocol for Foundation Fieldbusfalse
Number of HW-interfaces RS-4220
Supporting protocol for other bus systemsfalse
Supporting protocol for Modbusfalse
Supporting protocol for CANfalse
Supply voltage DC19.2 V
Number of HW-interfaces industrial Ethernet0
Permitted voltage at output0 V
Number of HW-interfaces USB0
Type of output voltageDC
Number of HW-interfaces wireless0
Supporting protocol for SERCOSfalse
IO link masterfalse
Supporting protocol for PROFINET CBAfalse

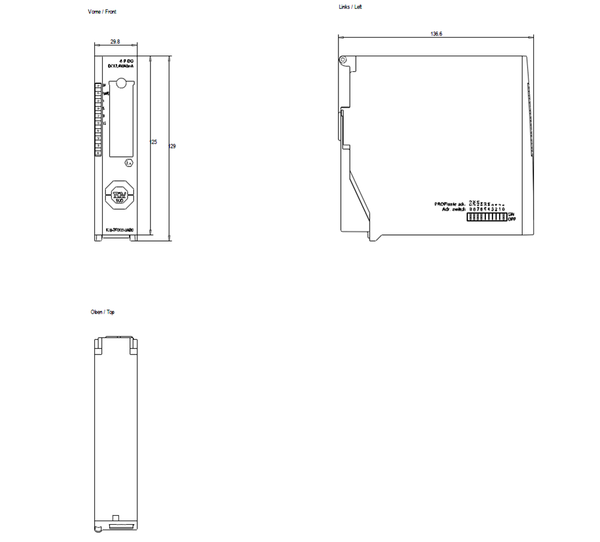

Width30 mm
Rail mounting possibletrue
Radio standard GSMfalse
Height129 mm
Number of HW-interfaces other0
Number of digital inputs0
Depth136.5 mm
Supporting protocol for PROFIsafetrue
Appendant operation agent (Ex ib)true
Front built-in possibletrue
Supporting protocol for DeviceNet Safetyfalse
Number of interfaces PROFINET0
Radio standard UMTSfalse
Supporting protocol for PROFIBUSfalse
Number of digital outputs4
Radio standard Bluetoothfalse
Appendant operation agent (Ex ia)true
Radio standard WLAN 802.11false
Number of HW-interfaces RS-4850
Supporting protocol for AS-Interface Safety at Workfalse
Digital outputs configurabletrue
Supporting protocol for PROFINET IOfalse
Supporting protocol for INTERBUSfalse
Supporting protocol for DeviceNetfalse
Number of HW-interfaces RS-2320
Supporting protocol for EtherNet/IPfalse
Supporting protocol for LONfalse
With optical interfacefalse
Suitable for safety functionstrue
Wall mounting/direct mountingtrue
Supporting protocol for Data-Highwayfalse
Radio standard GPRSfalse
Supporting protocol for SUCONETfalse
Rack-assembly possiblefalse
Supporting protocol for ASIfalse
Supply voltage DC30 V
Number of HW-interfaces serial TTY0
Fieldbus connection over separate bus coupler possibletrue
Supporting protocol for INTERBUS-Safetyfalse
Voltage type (supply voltage)DC
Short-circuit protection, outputs availabletrue
Supporting protocol for KNXfalse
Supporting protocol for SafetyBUS pfalse
