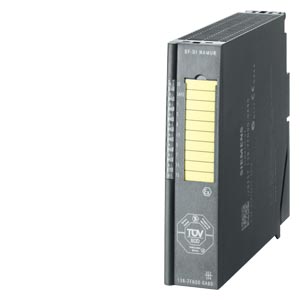

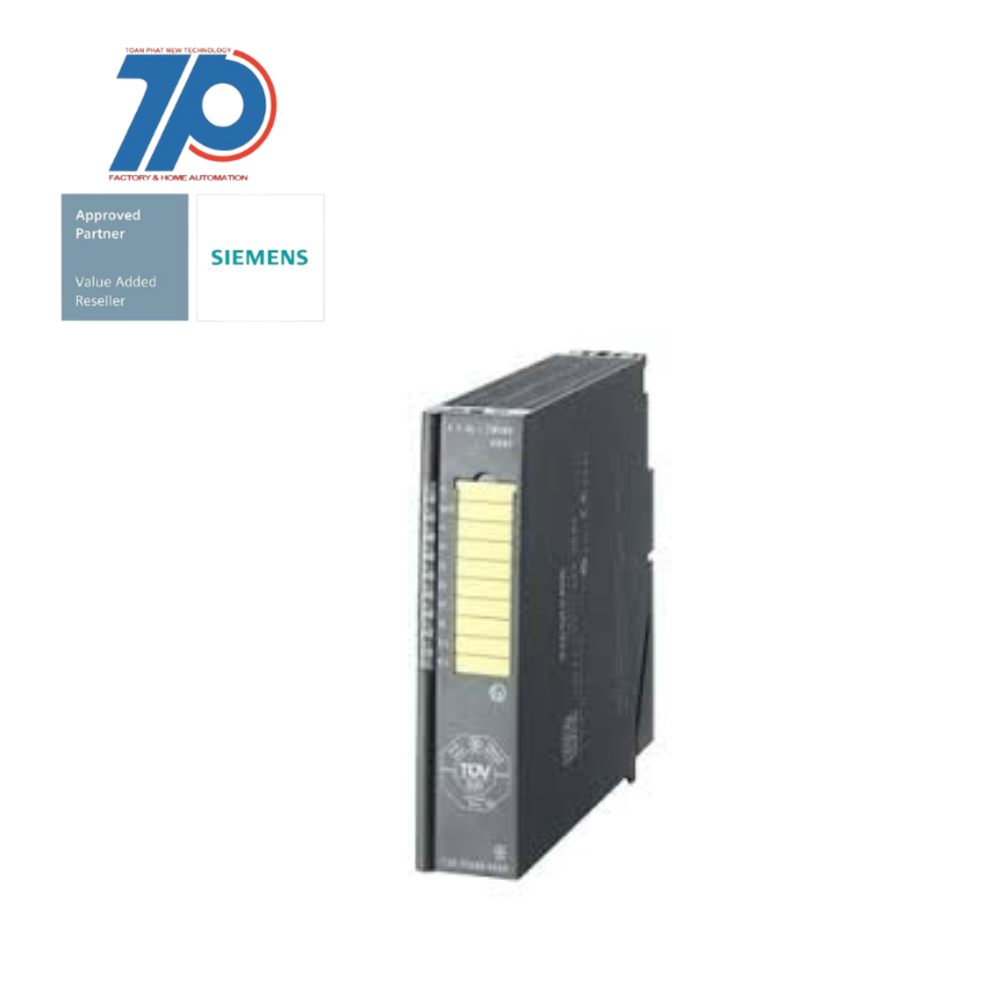

Material ID: 6ES7138-7FN00-0AB0
SIMATIC DP
Le module électronique de sécurité pour ET200iSP est conçu pour une utilisation dans des environnements dangereux. Il est certifié pour une utilisation en zones Ex ib (ia Ga) IIC T4 Gb, Ex ib [ia IIIC Da] IIC T4 Gb et Ex ib [ia] I Mb.
Caractéristiques techniques :
Avantages commerciaux :
- Module électronique pour ET200iSP
- 8F-DI NAMUR Ex I
- Catégorie 4 (EN954-1)/ SIL3 (IEC61508)/PLE (ISO13849)
- Utilisation sûre dans des environnements dangereux
- Certifié pour une utilisation en zones Ex ib (ia Ga) IIC T4 Gb, Ex ib [ia IIIC Da] IIC T4 Gb et Ex ib [ia] I Mb
Additional Information
Support | Technical Data | Manuals / Links |
Thông số kỹ thuật
| FEATURE | VALUE |
| Input current at signal 1 | 9.5 mA |
| Digital inputs configurable | true |
| Wall mounting/direct mounting | true |
| Supporting protocol for LON | false |
| Supporting protocol for Data-Highway | false |
| Number of HW-interfaces wireless | 0 |
| Number of digital outputs | 0 |
| Radio standard GPRS | false |
| Number of digital inputs | 8 |
| Time delay at signal change | 16 ms |
| Supporting protocol for Foundation Fieldbus | false |
| System accessory | true |
| Supporting protocol for CAN | false |
| Front built-in possible | true |
| Number of HW-interfaces RS-422 | 0 |
| Rail mounting possible | true |
| Number of HW-interfaces RS-485 | 0 |
| Degree of protection (IP) | IP30 |
| Type of voltage (input voltage) | DC |
| Fieldbus connection over separate bus coupler possible | true |
| Supporting protocol for Modbus | false |
| Supporting protocol for SUCONET | false |
| Supporting protocol for INTERBUS | false |

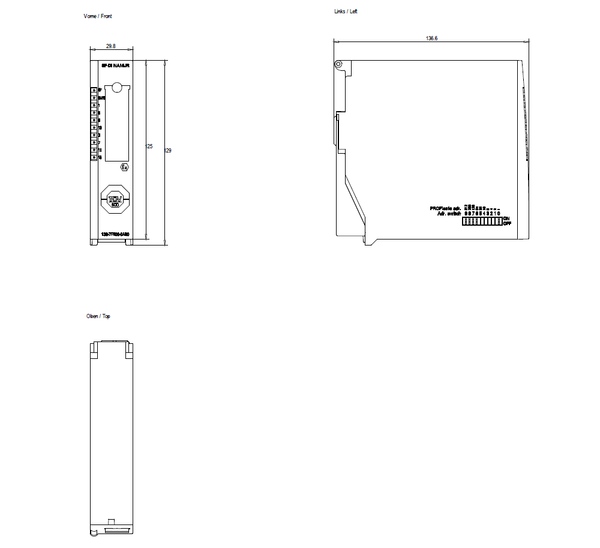

| Depth | 136.5 mm |
| Supporting protocol for ASI | false |
| Width | 30 mm |
| Supporting protocol for KNX | false |
| Radio standard WLAN 802.11 | false |
| Time delay at signal change | 0.7 ms |
| Supporting protocol for SERCOS | false |
| Number of HW-interfaces USB | 0 |
| Supporting protocol for PROFINET IO | false |
| Appendant operation agent (Ex ia) | true |
| Radio standard Bluetooth | false |
| IO link master | false |
| Supporting protocol for EtherNet/IP | false |
| Supporting protocol for DeviceNet Safety | false |
| Number of interfaces PROFINET | 0 |
| With optical interface | false |
| Number of HW-interfaces parallel | 0 |
| Height | 129 mm |
| Suitable for safety functions | true |
| Supporting protocol for PROFIBUS | false |
| Number of HW-interfaces industrial Ethernet | 0 |
| Supporting protocol for DeviceNet | false |
| Number of HW-interfaces other | 0 |
| Rack-assembly possible | false |
| Number of HW-interfaces RS-232 | 0 |
| Radio standard GSM | false |
| Supporting protocol for AS-Interface Safety at Work | false |
| Supporting protocol for SafetyBUS p | false |
| Supporting protocol for other bus systems | false |
| Appendant operation agent (Ex ib) | true |
| Radio standard UMTS | false |
| Number of HW-interfaces serial TTY | 0 |
| Voltage type (supply voltage) | DC |
| Supporting protocol for INTERBUS-Safety | false |
| Supporting protocol for PROFINET CBA | false |
