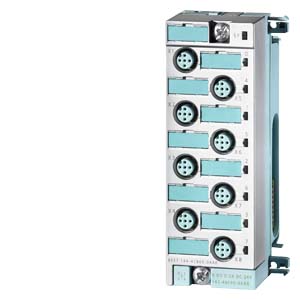

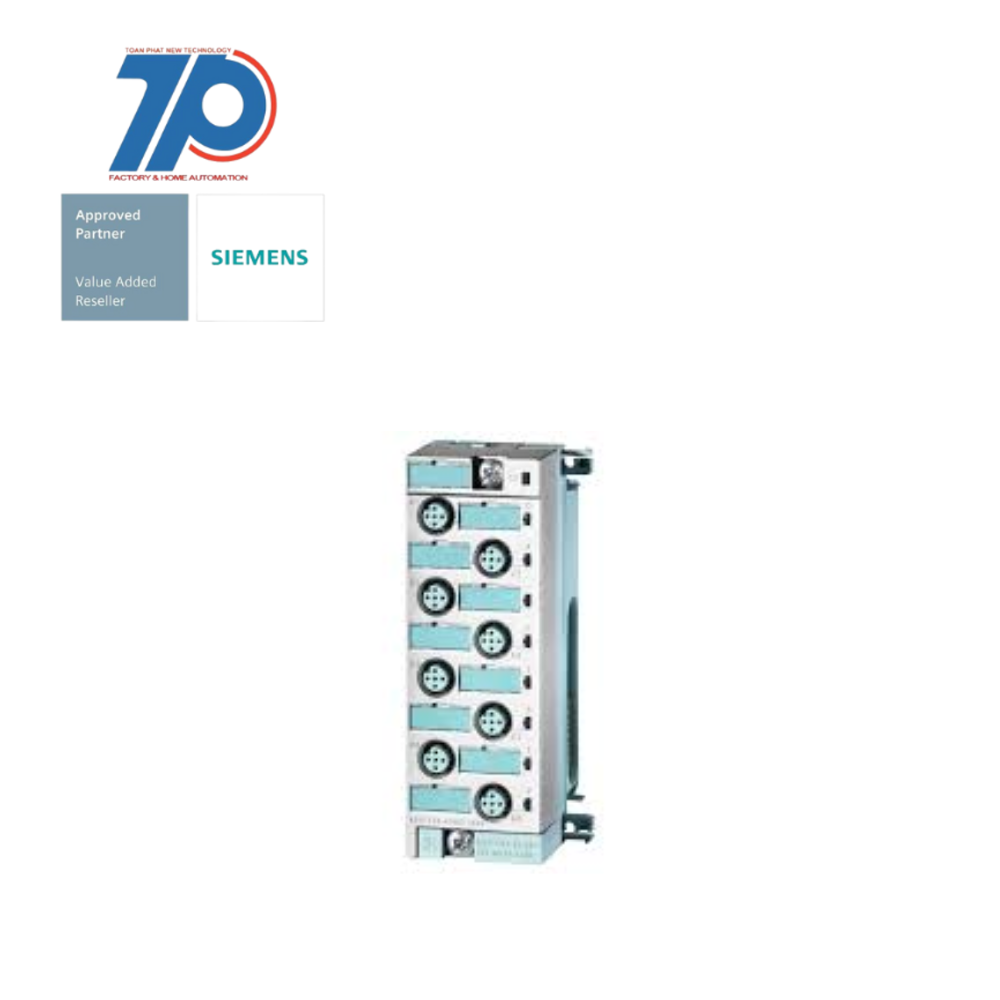

Material ID: 6ES7141-4BH00-0AA0

SIMATIC DP, Electronic module for ET 200 PRO 16 DI 24 V DC

Technical Features:

Commercial Benefits:

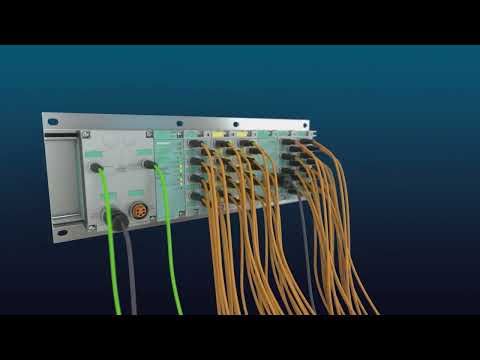

SIMATIC ET 200pro is a modular, rugged, and versatile I/O system with a degree of protection IP65/67. It offers a comprehensive range of modules, making it a space-saving and multifunctional device. Its modular design allows for direct installation on the machine, eliminating the need for a control cabinet.

The I/O system provides flexibility and quick response to varied automation requirements. It features an extensive and innovative range of modules, ensuring a space-saving and simple installation process. The High Feature modules of SIMATIC ET 200pro offer extensive and precise diagnostics functions, minimizing plant downtimes.

The hot swapping capability allows for the replacement of electronic modules without shutting down the plant. This feature ensures that the wiring remains in place and the other parts of the plant continue to run smoothly.

Siemens provides a high-quality and flexible complete solution suitable for applications with high mechanical loads due to the rugged construction of the ET 200pro system. Continuous quality management ensures that the ET 200 products meet market standards, making Siemens a reliable partner.

The system offers a wide range of modules, including digital and analog input and output modules with various characteristics. Fail-safe modules for applications up to SIL 3 / PLe are also available. Motor control solutions, such as motor starters and frequency converters, are integrated into the ET 200pro system, including fail-safe variants. The portfolio is further complemented by an IO-Link master and a module for connecting RFID component devices via the RS 232 / 422 interface.

    • Module diagnostics
    • Incl. bus module
    • Connection module IO 6ES7194-4CB50-0AA0 order separately
Additional Information

Support

Technical Data

Manuals / Links





Thông số kỹ thuật
FEATUREVALUE
Wall mounting/direct mountingtrue
Number of interfaces PROFINET0
Supply voltage DC20.4 V
Supporting protocol for LONfalse
Fieldbus connection over separate bus coupler possibletrue
Supporting protocol for INTERBUS-Safetyfalse
Voltage type (supply voltage)DC
Number of HW-interfaces USB0
Digital inputs configurabletrue
Supporting protocol for Data-Highwayfalse
Supporting protocol for PROFINET IOfalse
Permitted voltage at input30 V
Radio standard WLAN 802.11false
With optical interfacefalse
Type of voltage (input voltage)DC
Supporting protocol for DeviceNet Safetyfalse
Rack-assembly possiblefalse
Permitted voltage at input-3 V
Depth35 mm
Radio standard GPRSfalse
Supporting protocol for PROFIsafefalse
Supporting protocol for AS-Interface Safety at Workfalse
Supporting protocol for SafetyBUS pfalse
Suitable for safety functionsfalse
Number of HW-interfaces serial TTY0
Number of HW-interfaces parallel0
Supporting protocol for KNXfalse
Time delay at signal change4.8 ms
Number of HW-interfaces wireless0
Appendant operation agent (Ex ia)false
Supply voltage DC28.8 V
Number of HW-interfaces RS-4850
Supporting protocol for other bus systemsfalse
Supporting protocol for SERCOSfalse
Number of HW-interfaces industrial Ethernet0
Number of HW-interfaces other0
Supporting protocol for PROFIBUSfalse
Supporting protocol for SUCONETfalse
Time delay at signal change1.2 ms
Radio standard UMTSfalse
Supporting protocol for Modbusfalse
Input current at signal 14 mA
Appendant operation agent (Ex ib)false
Supporting protocol for TCP/IPfalse
System accessorytrue
Supporting protocol for Foundation Fieldbusfalse
Number of HW-interfaces RS-4220
Supporting protocol for INTERBUSfalse
Supporting protocol for ASIfalse
Supporting protocol for CANfalse
Supporting protocol for PROFINET CBAfalse
Rail mounting possibletrue
Supporting protocol for DeviceNetfalse
Number of HW-interfaces RS-2320
Supporting protocol for EtherNet/IPfalse
Number of digital outputs0
Radio standard GSMfalse
Radio standard Bluetoothfalse
IO link masterfalse
Height130 mm
Number of digital inputs16
Width45 mm
Front built-in possibletrue
