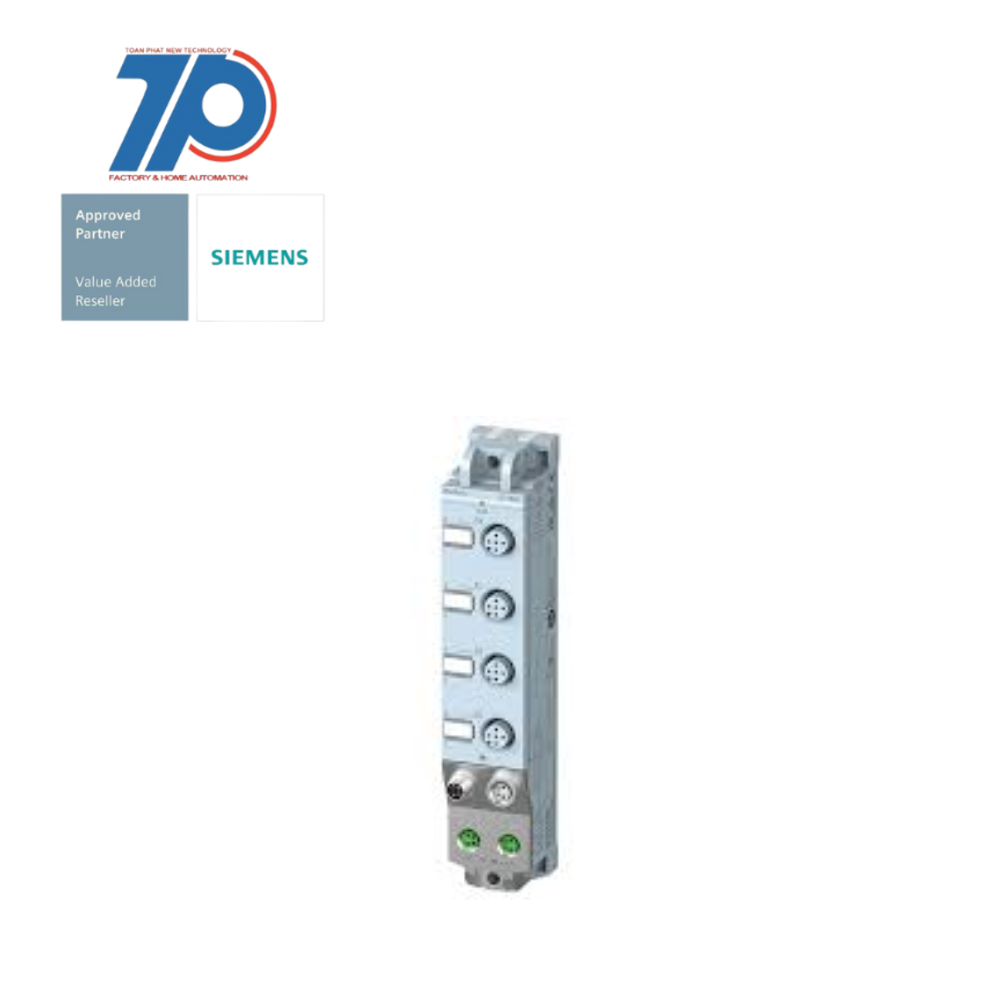

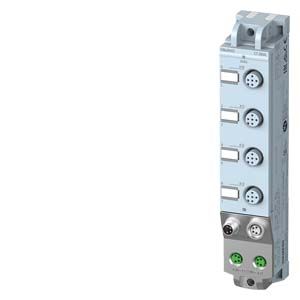

Material ID: 6ES7141-5AF00-0BA0

SIMATIC ET 200AL

Technical Features:

Product Description:

SIMATIC ET 200AL is a modular, distributed I/O system with compact I/O modules in IP65/67. This space-saving solution from Siemens is designed to meet your specific needs. With a width of only 30 mm and a weight of 145 g, the SIMATIC ET 200AL can be easily mounted on any machine or assembly line in any position.

The rugged housing of the SIMATIC ET 200AL ensures its durability and reliability. It is splashproof, oil-tight, and dust-tight, allowing it to operate in extreme temperatures ranging from -25 °C to +55 °C.

Configuring and operating the SIMATIC ET 200AL is hassle-free and fast. The TIA Portal provides CAx-compatible labeling of all interfaces, making configuration uncomplicated. Additionally, a unique color-coded identification system simplifies cable assignment and wiring.

Siemens guarantees a future-proof investment with the SIMATIC ET 200AL. By incorporating innovative and long-life automation products, Siemens sets new market standards. The system supports digital and analog input and output modules, as well as mixed modules (digital). The modules can be connected to the M8 or M12 connection system and can be integrated into SIMATIC ET 200SP. Optional connectivity to PROFINET or PROFIBUS is also available.

    • DI 8x 24 V DC
    • 4x M12
    • Degree of protection IP67
Additional Information

Support

Technical Data

Manuals / Links







Thông số kỹ thuật
FEATUREVALUE
Number of HW-interfaces RS-4850
Digital inputs configurabletrue
Supporting protocol for Data-Highwayfalse
Wall mounting/direct mountingtrue
Supporting protocol for PROFINET IOfalse
Supporting protocol for SERCOSfalse
Supporting protocol for LONfalse
Number of HW-interfaces RS-2320
Radio standard GPRSfalse
Front built-in possibletrue
Supporting protocol for Foundation Fieldbusfalse
Number of digital inputs8
Number of HW-interfaces parallel0
Width30 mm
Supporting protocol for KNXfalse
Time delay at signal change4.8 ms
Supply voltage DC28.8 V
Number of HW-interfaces other0
Supporting protocol for PROFIBUSfalse
Depth40 mm
Type of voltage (input voltage)DC
Supporting protocol for DeviceNet Safetyfalse
Number of HW-interfaces industrial Ethernet0
Number of digital outputs0
Number of interfaces PROFINET0
Supporting protocol for INTERBUS-Safetyfalse
Voltage type (supply voltage)DC
Supporting protocol for CANfalse
Supporting protocol for PROFINET CBAfalse
Rail mounting possibletrue
Supporting protocol for DeviceNetfalse
Supporting protocol for EtherNet/IPfalse
Input current at signal 13.2 mA
Supply voltage DC20.4 V
With optical interfacefalse
Number of HW-interfaces wireless0
Height159 mm
Appendant operation agent (Ex ib)false
Supporting protocol for TCP/IPfalse
System accessorytrue
Number of HW-interfaces RS-4220
Fieldbus connection over separate bus coupler possibletrue
Number of HW-interfaces USB0
Supporting protocol for SUCONETfalse
Time delay at signal change1.2 ms
Radio standard UMTSfalse
Rack-assembly possiblefalse
Supporting protocol for Modbusfalse
Number of HW-interfaces serial TTY0
Permitted voltage at input30 V
Radio standard WLAN 802.11false
Supporting protocol for INTERBUSfalse
Supporting protocol for PROFIsafefalse
Supporting protocol for AS-Interface Safety at Workfalse
Supporting protocol for SafetyBUS pfalse
IO link masterfalse
Suitable for safety functionsfalse
Supporting protocol for other bus systemsfalse
Radio standard GSMfalse
Appendant operation agent (Ex ia)false
Radio standard Bluetoothfalse
Supporting protocol for ASIfalse
Permitted voltage at input-30 V
