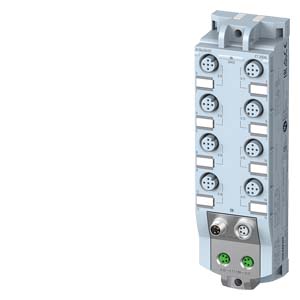

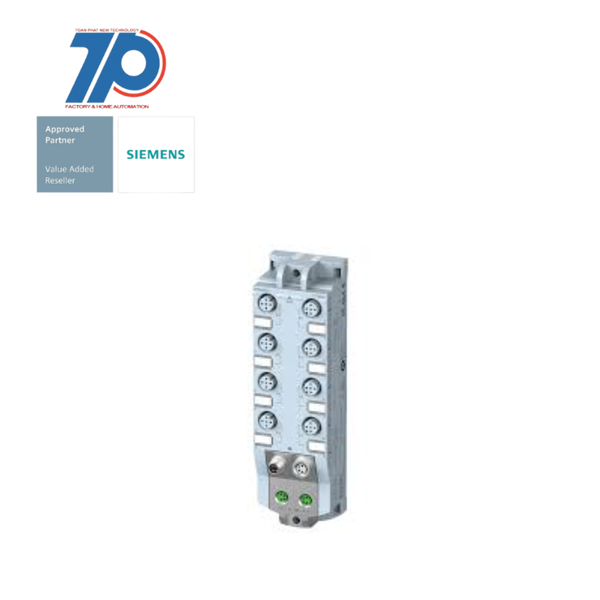

Material ID: 6ES7141-5AH00-0BA0

SIMATIC ET 200AL

Technical Features:

Commercial Benefits:

The SIMATIC ET 200AL is a modular, distributed I/O system with compact I/O modules in IP65/67. This space-saving solution from Siemens offers a minimum space requirement, thanks to its small width of 30 mm and low weight of 145 g. It can be easily mounted on machines or assembly lines in any position.

The rugged housing of the SIMATIC ET 200AL is splashproof, oil-tight, and dust-tight, allowing it to be used in extreme temperatures ranging from -25 °C to +55 °C.

Configuring the SIMATIC ET 200AL is hassle-free and fast, thanks to its CAx-compatible labeling of all interfaces via the TIA Portal. The unique color-coded identification system ensures easy cable assignment and simple wiring.

Siemens guarantees a future-proof investment with the inclusion of innovative and long-life automation products. By using tomorrow's technologies today, Siemens is redefining market standards.

The SIMATIC ET 200AL is available as digital and analog input and output modules, as well as mixed modules (digital). The sensors can be connected using the M8 or M12 connection system. The modules can be optionally connected to PROFINET or PROFIBUS or integrated into SIMATIC ET 200SP.

    • DI 16x 24 V DC
    • 8x M12
    • Degree of protection IP67
Additional Information

Support

Technical Data

Manuals / Links







Thông số kỹ thuật
FEATUREVALUE
Supporting protocol for AS-Interface Safety at Workfalse
Supporting protocol for LONfalse
Radio standard GSMfalse
IO link masterfalse
Supporting protocol for other bus systemsfalse
Supporting protocol for TCP/IPfalse
Number of HW-interfaces parallel0
Appendant operation agent (Ex ia)false
Front built-in possibletrue
Supply voltage DC28.8 V
Rack-assembly possiblefalse
Fieldbus connection over separate bus coupler possibletrue
Number of HW-interfaces RS-2320
Number of digital outputs0
Height159 mm
Number of interfaces PROFINET0
Rail mounting possibletrue
Digital inputs configurabletrue
Radio standard GPRSfalse
Supporting protocol for PROFINET IOfalse
Supporting protocol for Modbusfalse
Time delay at signal change1.2 ms
Number of HW-interfaces RS-4850
Supporting protocol for PROFIBUSfalse
Number of digital inputs16
Width45 mm
Supporting protocol for Foundation Fieldbusfalse
Input current at signal 13.2 mA
Depth40 mm
Type of voltage (input voltage)DC
Supporting protocol for ASIfalse
With optical interfacefalse
Supporting protocol for INTERBUS-Safetyfalse
Voltage type (supply voltage)DC
Supporting protocol for EtherNet/IPfalse
Supporting protocol for CANfalse
Number of HW-interfaces RS-4220
Supporting protocol for DeviceNetfalse
Supporting protocol for SUCONETfalse
Appendant operation agent (Ex ib)false
Permitted voltage at input30 V
Radio standard WLAN 802.11false
Supporting protocol for PROFINET CBAfalse
Supporting protocol for PROFIsafefalse
Supporting protocol for SafetyBUS pfalse
Number of HW-interfaces USB0
Suitable for safety functionsfalse
Radio standard Bluetoothfalse
Supporting protocol for Data-Highwayfalse
Supporting protocol for SERCOSfalse
Number of HW-interfaces industrial Ethernet0
Number of HW-interfaces serial TTY0
Supporting protocol for KNXfalse
Time delay at signal change4.8 ms
Number of HW-interfaces wireless0
Radio standard UMTSfalse
Permitted voltage at input-30 V
Supporting protocol for DeviceNet Safetyfalse
Supply voltage DC20.4 V
Number of HW-interfaces other0
Wall mounting/direct mountingtrue
System accessorytrue
Supporting protocol for INTERBUSfalse
