Material ID: 6ES7141-5AH00-0BL0

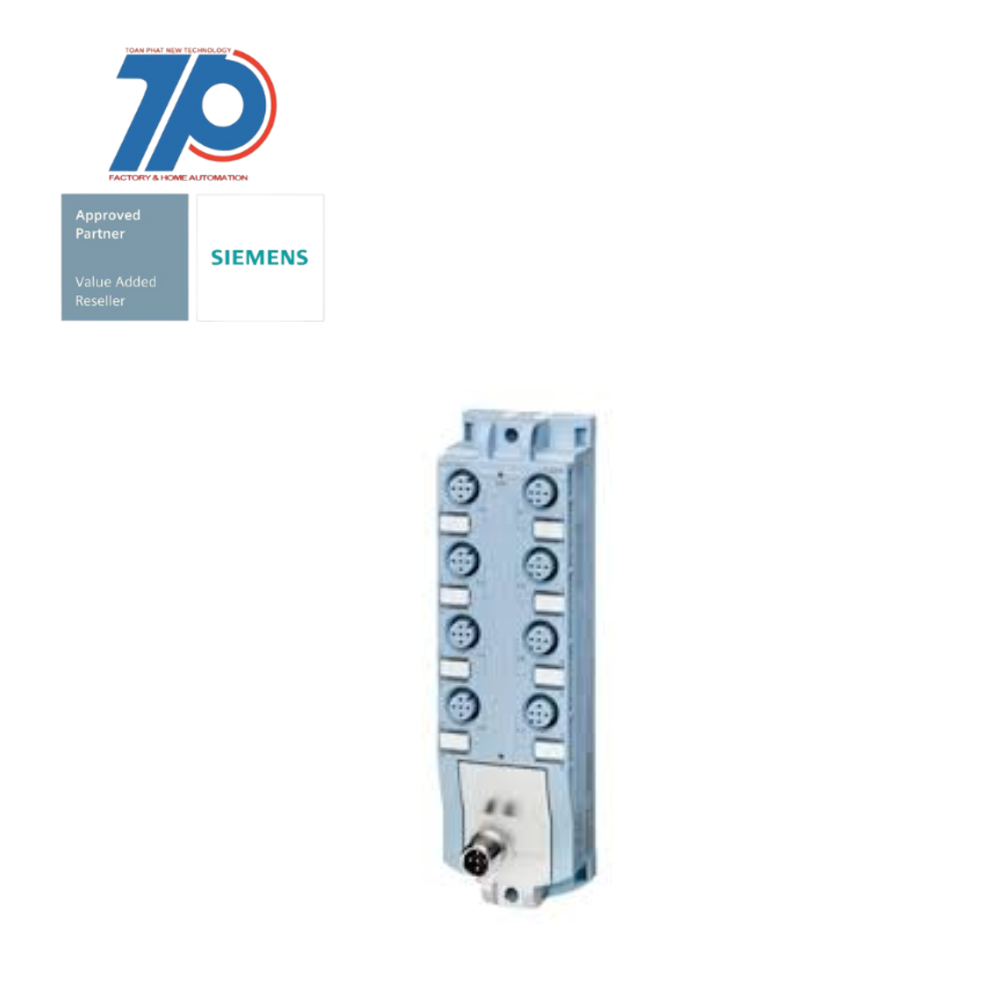

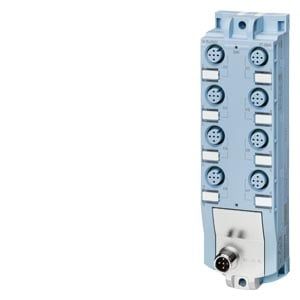

SIMATIC ET 200AL, IO-Link, DI 16x 24 V DC, 8x M12, Degree of protection IP67
The SIMATIC ET 200AL is a modular, distributed I/O system with compact I/O modules in IP65/67. It offers a space-saving solution, with a small width of 30 mm and a low weight of 145 g. The system can be mounted on the machine or assembly line in any position.
The SIMATIC ET 200AL is designed to withstand harsh conditions, with a rugged housing that is splashproof, oil-tight, and dust-tight. It can operate at temperatures between -25 °C and +55 °C.
Configuring the SIMATIC ET 200AL is hassle-free and fast. The TIA Portal allows for easy labeling of all interfaces, and a unique color-coded identification system ensures simple wiring.
Siemens guarantees a future-proof investment by including innovative and long-life automation products. By using tomorrow's technologies today, Siemens is redefining market standards.
The IO-Link Hubs in ET 200AL design combine the ruggedness and simplicity of installation of the ET 200AL with the advantages of the IO-Link standard. This includes the possibility of assembly in star form and the optimum degree of diagnostics.
Additional Information
Support | Technical Data | Manuals / Links |
Thông số kỹ thuật
| FEATURE | VALUE |
| Front built-in possible | true |
| Supporting protocol for DeviceNet Safety | false |
| Number of HW-interfaces industrial Ethernet | 0 |
| Number of interfaces PROFINET | 0 |
| Supporting protocol for Modbus | false |
| With optical interface | false |
| Radio standard WLAN 802.11 | false |
| Rail mounting possible | true |
| Appendant operation agent (Ex ib) | false |
| Number of HW-interfaces RS-422 | 0 |
| Fieldbus connection over separate bus coupler possible | true |
| Number of HW-interfaces USB | 0 |
| Number of HW-interfaces serial TTY | 0 |
| Supply voltage DC | 30 V |
| Supporting protocol for INTERBUS-Safety | false |
| Voltage type (supply voltage) | DC |
| Supporting protocol for PROFINET CBA | false |
| Radio standard Bluetooth | false |
| Supporting protocol for DeviceNet | false |
| Supporting protocol for PROFINET IO | false |
| Supporting protocol for AS-Interface Safety at Work | false |
| Supporting protocol for SafetyBUS p | false |
| Number of digital inputs | 16 |
| Number of HW-interfaces other | 0 |
| System accessory | true |
| Supporting protocol for EtherNet/IP | false |
| Supporting protocol for other bus systems | false |
| Wall mounting/direct mounting | true |
| Supply voltage DC | 18 V |
| Width | 45 mm |
| Permitted voltage at input | 30 V |
| Time delay at signal change | 1.2 ms |
| Radio standard UMTS | false |
| Supporting protocol for ASI | false |
| Rack-assembly possible | false |
| Supporting protocol for Foundation Fieldbus | false |
| Number of HW-interfaces parallel | 0 |
| Permitted voltage at input | -30 V |
| Time delay at signal change | 4.8 ms |
| Number of HW-interfaces wireless | 0 |
| Supporting protocol for INTERBUS | false |
| Number of HW-interfaces RS-485 | 0 |
| Supporting protocol for SERCOS | false |
| Height | 159 mm |
| Depth | 40 mm |
| Number of HW-interfaces RS-232 | 0 |
| Radio standard GSM | false |
| Appendant operation agent (Ex ia) | false |
| Digital inputs configurable | true |
| Supporting protocol for Data-Highway | false |
| Input current at signal 1 | 3 mA |
| Radio standard GPRS | false |
| Supporting protocol for LON | false |
| Supporting protocol for PROFIsafe | false |
| IO link master | false |
| Type of voltage (input voltage) | DC |
| Suitable for safety functions | false |
| Supporting protocol for TCP/IP | false |
| Supporting protocol for PROFIBUS | false |
| Supporting protocol for CAN | false |
| Supporting protocol for SUCONET | false |
| Supporting protocol for KNX | false |
| Number of digital outputs | 0 |
