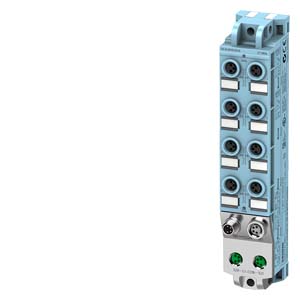

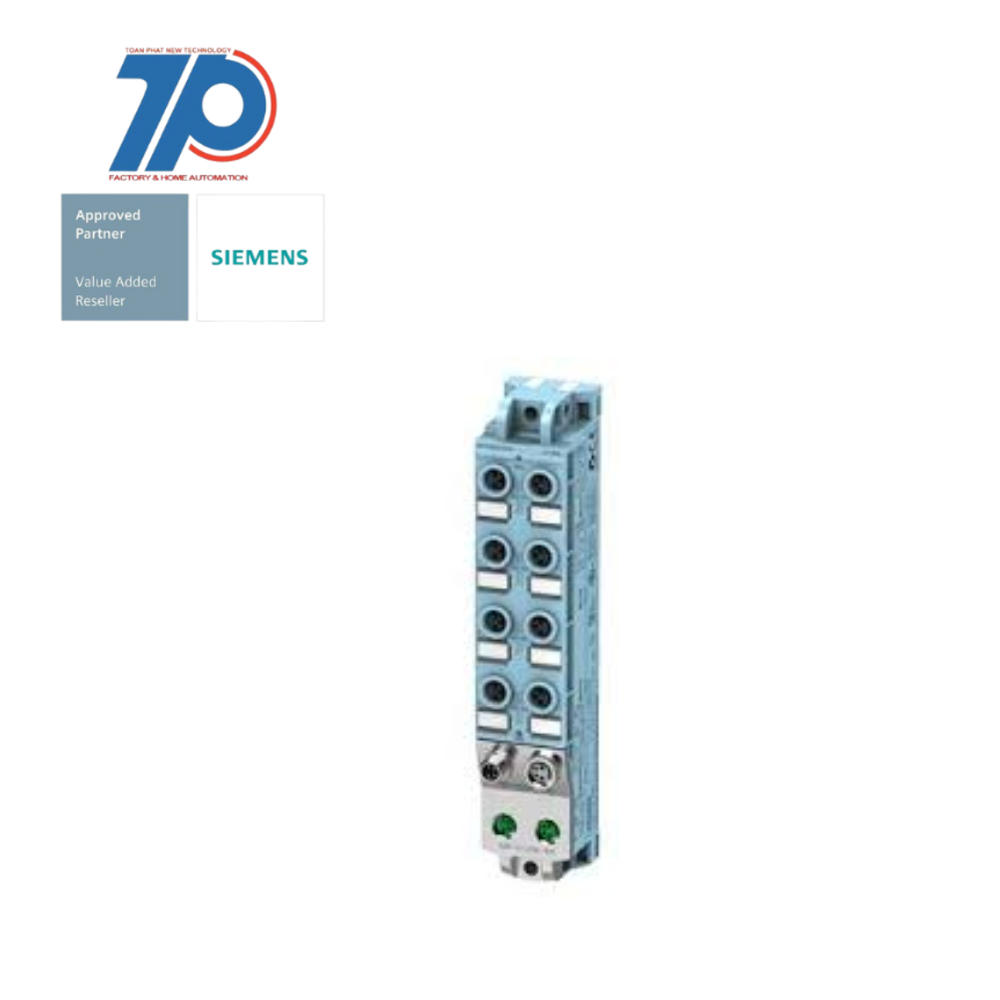

Material ID: 6ES7141-5BF00-0BA0

SIMATIC ET 200AL

Technical Features:

Product Description:

SIMATIC ET 200AL is a modular, distributed I/O system with compact I/O modules in IP65/67. It offers a space-saving solution for your applications. With a width of only 30 mm and a weight of 145 g, the ET 200AL can be easily mounted on machines or assembly lines in any position. Its rugged housing is splashproof, oil-tight, and dust-tight, allowing it to operate in temperatures ranging from -25 °C to +55 °C.

Key Benefits:

Module Options:

The SIMATIC ET 200AL is available in various module options:

Connectivity:

The sensors are connected using the M8 or M12 connection system. The modules can be optionally connected to PROFINET or PROFIBUS or integrated into SIMATIC ET 200SP.

    • DI 8x 24 V DC
    • 8XM8
    • Degree of protection IP67
    • Space-saving design
    • Wide temperature range
    • Hassle-free and fast configuration
    • CAx-compatible labeling of interfaces via TIA Portal
    • Color-coded identification system for easy wiring
    • Future-proof investment with innovative and long-life automation products
    • Digital input and output modules
    • Analog input and output modules
    • Mixed modules (digital)
Additional Information

Support

Technical Data

Manuals / Links





Thông số kỹ thuật
FEATUREVALUE
Digital inputs configurabletrue
Number of HW-interfaces serial TTY0
Supply voltage DC20.4 V
Supporting protocol for other bus systemsfalse
Supporting protocol for PROFINET IOfalse
Rack-assembly possiblefalse
Wall mounting/direct mountingtrue
Number of HW-interfaces other0
Depth40 mm
Number of digital inputs8
Number of HW-interfaces USB0
Permitted voltage at input-30 V
Supporting protocol for PROFINET CBAfalse
Supporting protocol for INTERBUSfalse
Radio standard WLAN 802.11false
Suitable for safety functionsfalse
Appendant operation agent (Ex ib)false
Supporting protocol for SafetyBUS pfalse
Supporting protocol for LONfalse
Supporting protocol for SUCONETfalse
With optical interfacefalse
Type of voltage (input voltage)DC
Supporting protocol for DeviceNet Safetyfalse
Supporting protocol for Foundation Fieldbusfalse
Rail mounting possibletrue
Number of interfaces PROFINET0
Supporting protocol for DeviceNetfalse
Number of HW-interfaces RS-4220
Number of digital outputs0
Number of HW-interfaces RS-2320
Appendant operation agent (Ex ia)false
Supporting protocol for KNXfalse
Number of HW-interfaces parallel0
Radio standard UMTSfalse
Time delay at signal change4.8 ms
Radio standard Bluetoothfalse
Permitted voltage at input30 V
Supporting protocol for PROFIsafefalse
Supporting protocol for Data-Highwayfalse
Radio standard GPRSfalse
Supporting protocol for Modbusfalse
Width30 mm
Radio standard GSMfalse
Supporting protocol for ASIfalse
Supporting protocol for CANfalse
Supporting protocol for EtherNet/IPfalse
Voltage type (supply voltage)DC
Supporting protocol for INTERBUS-Safetyfalse
Supply voltage DC28.8 V
Input current at signal 13.2 mA
Height159 mm
Supporting protocol for TCP/IPfalse
IO link masterfalse
Number of HW-interfaces RS-4850
Supporting protocol for SERCOSfalse
Number of HW-interfaces wireless0
Number of HW-interfaces industrial Ethernet0
Supporting protocol for PROFIBUSfalse
Fieldbus connection over separate bus coupler possibletrue
Front built-in possibletrue
System accessorytrue
Time delay at signal change1.2 ms
Supporting protocol for AS-Interface Safety at Workfalse
