Material ID: 6ES7141-5BF00-0BL0

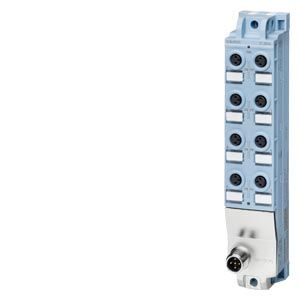

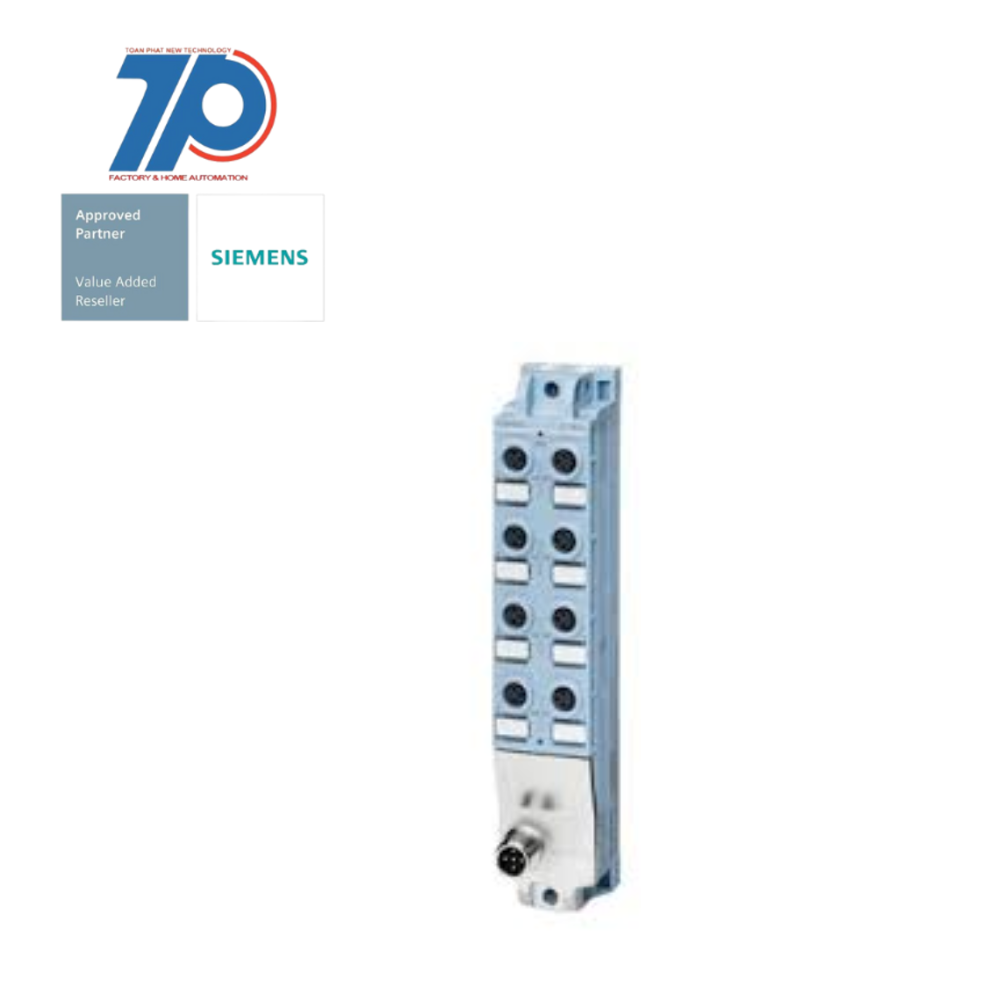

SIMATIC ET 200AL

Technical Features:

Product Description:

SIMATIC ET 200AL is a modular, distributed I/O system with compact I/O modules in IP65/67. It offers a space-saving solution with minimal space requirements. The system can be easily mounted on the machine or assembly line in any position due to its small width of 30 mm and low weight of 145 g. Its rugged housing is splashproof, oil-tight, and dust-tight, allowing it to be used in temperatures ranging from -25 °C to +55 °C.

Key Benefits:

IO-Link Hubs:

The IO-Link Hubs in ET 200AL design combine the ruggedness and simplicity of installation of the ET 200AL with the advantages of the IO-Link standard. They allow for assembly in star form and provide optimum diagnostics.

    • IO-Link
    • DI 8x 24 V DC
    • 8x M8
    • Degree of protection IP67
    • Hassle-free and fast configuration
    • CAx-compatible labeling of all interfaces via the TIA Portal
    • Color-coded identification system for easy cable assignment and wiring
    • Future-proof investment with innovative and long-life automation products
Additional Information

Support

Technical Data

Manuals / Links







Thông số kỹ thuật
FEATUREVALUE
Number of digital outputs0
Number of HW-interfaces RS-4850
Wall mounting/direct mountingtrue
Rail mounting possibletrue
Depth40 mm
Number of interfaces PROFINET0
Radio standard GPRSfalse
Input current at signal 13 mA
Supporting protocol for ASIfalse
Supporting protocol for SERCOSfalse
Number of HW-interfaces industrial Ethernet0
Width30 mm
Type of voltage (input voltage)DC
Supporting protocol for DeviceNet Safetyfalse
Supporting protocol for KNXfalse
Time delay at signal change4.8 ms
Height159 mm
Supporting protocol for EtherNet/IPfalse
Supporting protocol for Foundation Fieldbusfalse
Supporting protocol for PROFINET IOfalse
Supporting protocol for DeviceNetfalse
Number of digital inputs8
Supporting protocol for CANfalse
Supporting protocol for PROFIBUSfalse
Supply voltage DC18 V
Supporting protocol for other bus systemsfalse
Permitted voltage at input30 V
Radio standard GSMfalse
Number of HW-interfaces RS-2320
Voltage type (supply voltage)DC
Supporting protocol for INTERBUS-Safetyfalse
Supporting protocol for Modbusfalse
IO link masterfalse
Front built-in possibletrue
Number of HW-interfaces wireless0
System accessorytrue
Supporting protocol for INTERBUSfalse
Number of HW-interfaces parallel0
Appendant operation agent (Ex ib)false
Permitted voltage at input-30 V
Number of HW-interfaces other0
Radio standard WLAN 802.11false
Supporting protocol for PROFINET CBAfalse
Radio standard Bluetoothfalse
Supporting protocol for AS-Interface Safety at Workfalse
Suitable for safety functionsfalse
Supporting protocol for Data-Highwayfalse
Supporting protocol for LONfalse
Supply voltage DC30 V
Number of HW-interfaces serial TTY0
Fieldbus connection over separate bus coupler possibletrue
Appendant operation agent (Ex ia)false
Supporting protocol for PROFIsafefalse
Digital inputs configurabletrue
Number of HW-interfaces USB0
Radio standard UMTSfalse
Rack-assembly possiblefalse
Supporting protocol for SUCONETfalse
Number of HW-interfaces RS-4220
Time delay at signal change1.2 ms
With optical interfacefalse
Supporting protocol for TCP/IPfalse
Supporting protocol for SafetyBUS pfalse
