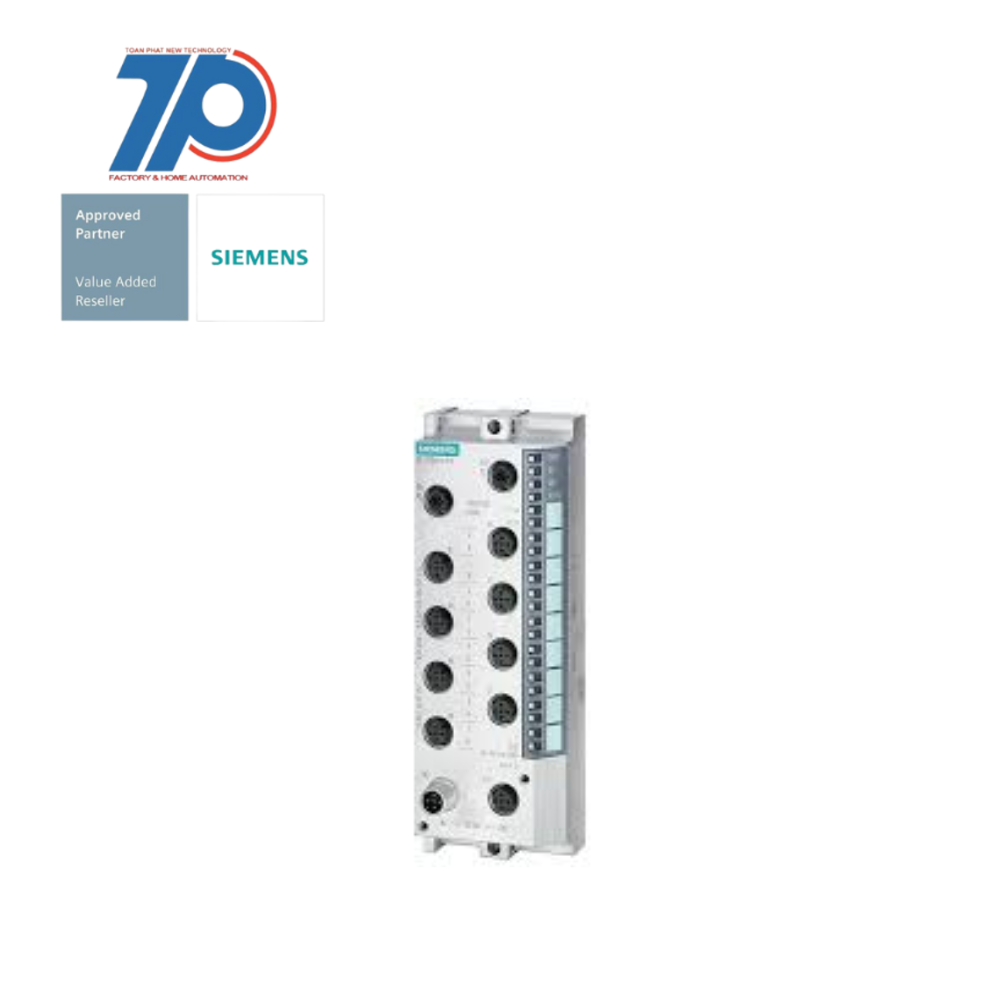

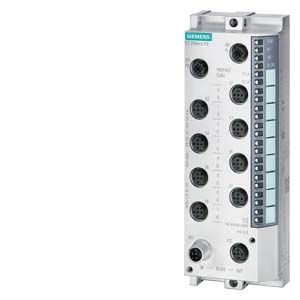

6ES7141-6BG00-0AB0

SIMATIC DP, ET 200ECO PN, 8 DI 24 V DC; 8xM12, Degree of protection IP67

SIMATIC ET 200eco PN is a compact block I/O system with a PROFINET connection. It has a degree of protection IP65/67, making it a space-saving and future-oriented solution that sets new market standards. The installation effort required is minimal, and the block I/Os can be quickly and flexibly installed and commissioned in any position.

The intelligent design of the system allows for on-site installation directly on the machine or assembly line. The die-cast zinc housing provides ideal protection in challenging ambient conditions and allows for the use of the I/O system in temperatures ranging from -40 °C to +60 °C. The system is highly resistant to vibration, dust, oil, and humidity.

The SIMATIC ET 200eco PN offers a future-oriented and innovative complete solution that can be flexibly configured thanks to the integrated 2-port switches. It can be easily integrated into line topologies in a plant. The M12-L coded power connectors simplify the power supply concept and enable higher current-carrying capacity, allowing for substantially longer cable lengths in the field without additional power supply cables.

Siemens guarantees future-oriented and innovative solutions that help you move into new business segments with key technologies projected into the future with ET 200 products.

In addition to digital and analog input and output modules with various characteristics (including current, voltage, temperature, and resistance measurements), the product range also includes the IO-Link master and a fail-safe module for connecting sensors and actuators up to SIL 3/PLe. The outputs of the standard modules can also be practically disconnected in a fail-safe manner up to SIL 2.
