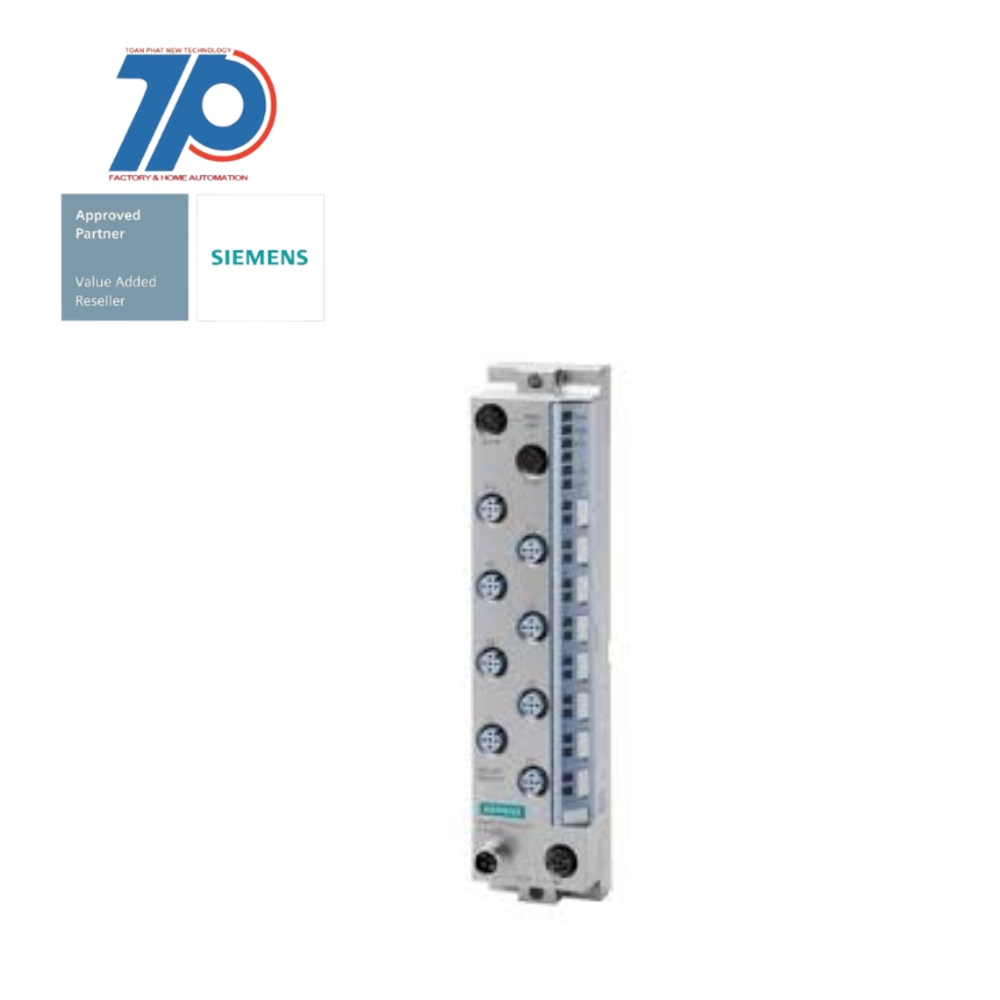

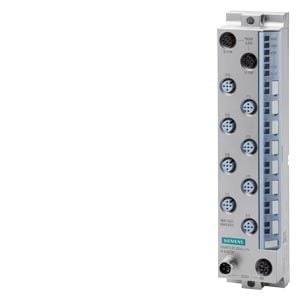

SIMATIC ET 200eco PN

The SIMATIC ET 200eco PN is a compact block I/O system with a PROFINET connection. It offers a high degree of protection with an IP65/67 rating, making it a space-saving and future-oriented solution. The system sets new market standards and requires minimal installation effort.

Technical Features:

Commercial Benefits:

The SIMATIC ET 200eco PN offers several commercial benefits:

Siemens guarantees future-oriented and innovative solutions that help you move into new business segments with key technologies projected into the future with ET 200 products.

• • DI 8x 24 V DC
  • M12-L
  • 8x M12

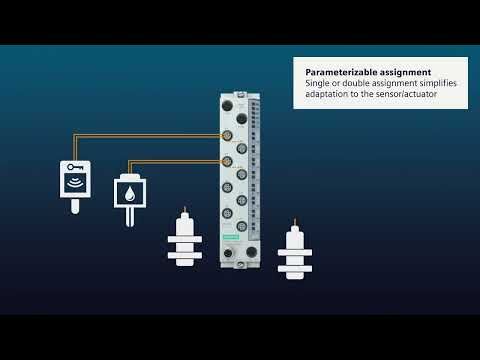

  • Single and double assignment
  • Input type 3 (IEC 61131)
  • Sink input (PNP, sinking input)
  • Input delay 0.05..20 ms
  • Channel diagnostics for:
    • Wire break at input
    • Encoder power supply short-circuit
  • 0.25 ms isochronous mode
  • Prioritized startup
  • MSI
  • MRP
  • S2 redundancy
  • I&M0...3
  • Multi-fieldbus
  • PN IO
  • Ethernet IP
  • Modbus TCP
  • Degree of protection IP67 / IP69K
  • Quick and flexible installation and commissioning
  • Can be installed directly on-site on the machine or assembly line
  • Rugged die-cast zinc housing for ideal protection in challenging ambient conditions
  • Operating temperature range from -40 °C to +60 °C
  • Maximum resistance to vibration, dust, oil, and humidity
  • Integrated 2-port switches for flexible configuration and integration into line topologies
  • M12-L coded power connectors for simplified power supply concept and longer cable lengths
  • Future-oriented and innovative complete solution
  • Wide range of digital and analog input and output modules
  • IO-Link master and fail-safe module for connecting sensors and actuators
  • Outputs of standard modules can be practically disconnected in a fail-safe manner up to SIL 2
