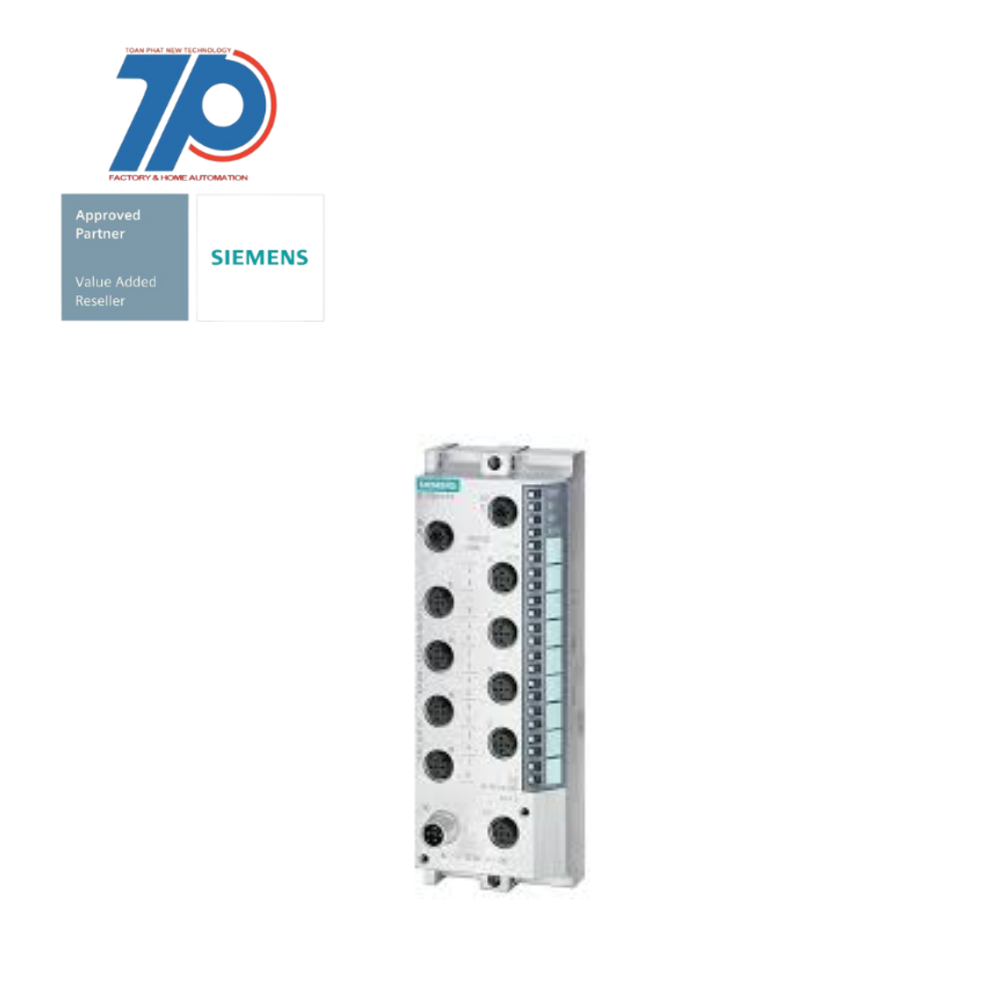

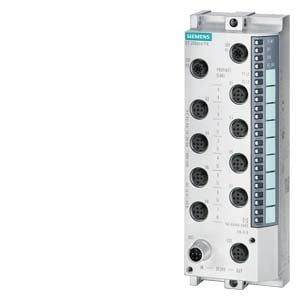

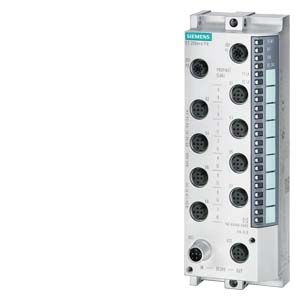

Material ID: 6ES7141-6BH00-0AB0Product Description

SIMATIC DP, ET 200ECO PN, 16 DI 24 V DC; 8xM12, duplicate assignment; Degree of protection IP67

Technical Features:

Commercial Benefits:

Siemens guarantees future-oriented and innovative solutions that help you to move into new business segments with key technologies that have been projected into the future with ET 200 products.

    • Compact block I/O system with PROFINET connection
    • Degree of protection: IP65/67
    • Space-saving and future-oriented solution
    • Quick and flexible installation and commissioning
    • Intelligent design allows on-site installation
    • Rugged die-cast zinc housing for ideal protection
    • Operating temperature range: -40°C to +60°C
    • Maximum resistance to vibration, dust, oil, and humidity
    • Integrated 2-port switches for flexible configuration
    • M12-L coded power connectors for simplified power supply
    • Higher current-carrying capacity for longer cable lengths
    • Future-oriented and innovative complete solution
    • IO-Link master and fail-safe module included
    • Outputs can be disconnected in a fail-safe manner
    • Space-saving and easy installation
    • Low installation effort
    • Ideal protection in challenging ambient conditions
    • Flexible configuration and integration into line topologies
    • Extended cable lengths without additional power supply cables
    • Future-oriented and innovative solutions
    • Enables expansion into new business segments
    • Wide range of input and output modules available
    • Fail-safe disconnection of outputs up to SIL 2
Additional Information

Support

Technical Data

Manuals / Links





Thông số kỹ thuật
FEATUREVALUE
Radio standard GSMfalse
Supporting protocol for LONfalse
Supporting protocol for DeviceNetfalse
Supporting protocol for Modbusfalse
Supporting protocol for TCP/IPfalse
Number of HW-interfaces industrial Ethernet0
Supporting protocol for CANfalse
Supporting protocol for DeviceNet Safetyfalse
Supporting protocol for PROFINET CBAfalse
Fieldbus connection over separate bus coupler possiblefalse
Supporting protocol for AS-Interface Safety at Workfalse
Supporting protocol for other bus systemsfalse
Radio standard UMTSfalse
Height175 mm
Rack-assembly possiblefalse
Supporting protocol for ASIfalse
Supporting protocol for EtherNet/IPfalse
Digital inputs configurabletrue
Permitted voltage at input30 V
Supporting protocol for Data-Highwayfalse
Supporting protocol for PROFINET IOtrue
Voltage type (supply voltage)DC
Supporting protocol for INTERBUS-Safetyfalse
Number of HW-interfaces other0
Type of voltage (input voltage)DC
Input current at signal 17 mA
System accessorytrue
IO link masterfalse
With optical interfacefalse
Number of HW-interfaces parallel0
Depth49 mm
Supporting protocol for SUCONETfalse
Radio standard GPRSfalse
Supply voltage DC28.8 V
Number of HW-interfaces RS-4220
Number of digital outputs0
Supporting protocol for PROFIBUSfalse
Radio standard Bluetoothfalse
Supporting protocol for SafetyBUS pfalse
Time delay at signal change4.8 ms
Supporting protocol for SERCOSfalse
Radio standard WLAN 802.11false
Permitted voltage at input-3 V
Number of HW-interfaces RS-4850
Width60 mm
Suitable for safety functionsfalse
Supply voltage DC20.4 V
Supporting protocol for PROFIsafefalse
Supporting protocol for KNXfalse
Wall mounting/direct mountingtrue
Number of HW-interfaces serial TTY0
Number of interfaces PROFINET1
Appendant operation agent (Ex ia)false
Number of HW-interfaces USB0
Number of HW-interfaces wireless0
Appendant operation agent (Ex ib)false
Time delay at signal change1.2 ms
Front built-in possibletrue
Supporting protocol for Foundation Fieldbusfalse
Number of HW-interfaces RS-2320
Number of digital inputs16
Rail mounting possibletrue
Supporting protocol for INTERBUSfalse
