Material ID: 6ES7141-6BH00-0BB0

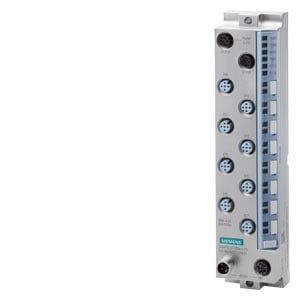

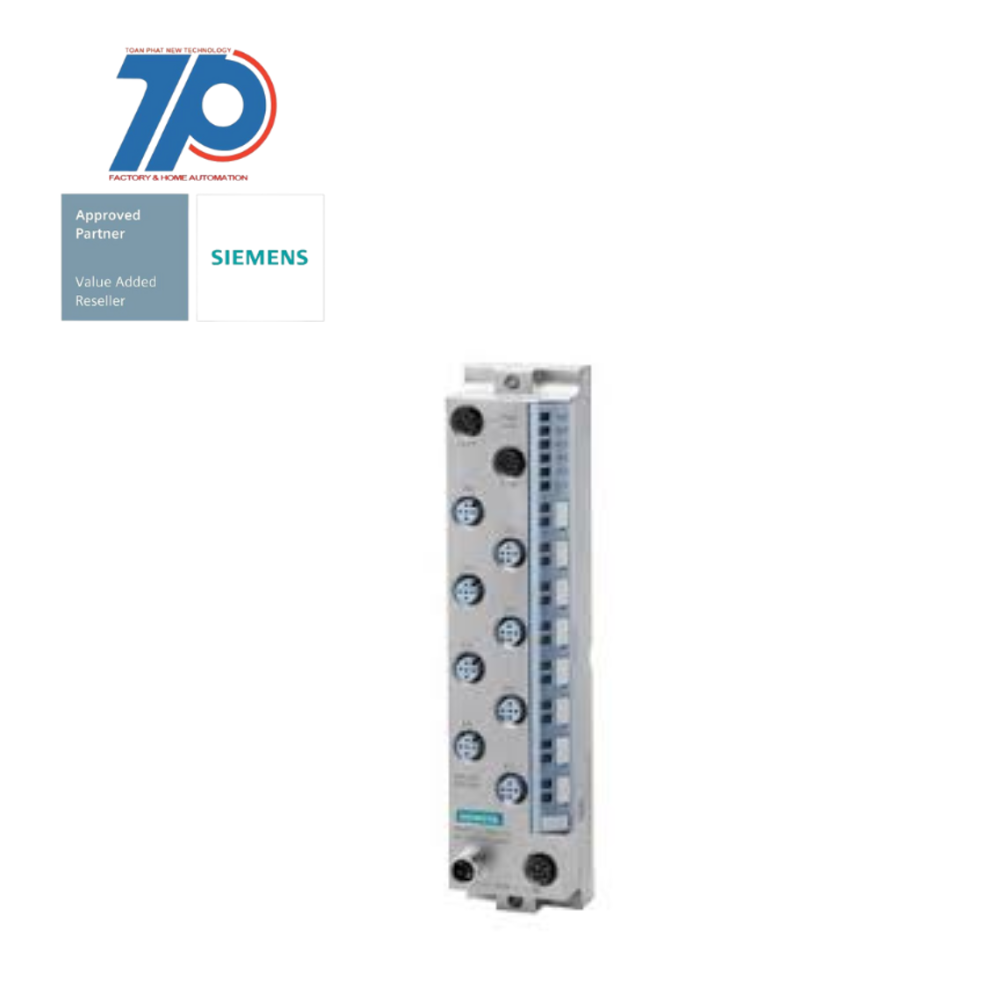

SIMATIC ET 200eco PN

SIMATIC ET 200eco PN is a compact block I/O system with a PROFINET connection. It has a degree of protection IP65/67, making it a space-saving and future-oriented solution. The system sets new market standards and requires minimal installation effort.

Technical Features:

Commercial Benefits:

The SIMATIC ET 200eco PN allows for quick and flexible installation and commissioning of block I/Os in any position. Its intelligent design enables on-site installation directly on the machine or assembly line. The rugged die-cast zinc housing provides ideal protection in challenging ambient conditions and allows for operation in temperatures ranging from -40 °C to +60 °C. The system is highly resistant to vibration, dust, oil, and humidity.

The integrated 2-port switches simplify the power supply concept and enable longer cable lengths in the field without additional power supply cables. Siemens guarantees future-oriented and innovative solutions that help you expand into new business segments. The ET 200 product line offers key technologies projected into the future.

In addition to digital and analog input and output modules, the SIMATIC ET 200eco PN also includes IO-Link master and fail-safe modules for connecting sensors and actuators up to SIL 3/PLe. The standard modules can be practically disconnected in a fail-safe manner up to SIL 2.

    • DI 16x 24 V DC
    • M12-L
    • 8x M12

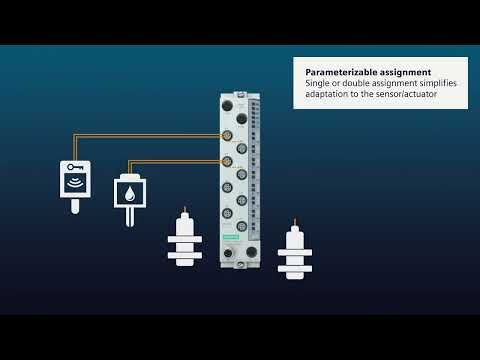

    • Double assignment
    • Input type 3 (IEC 61131)
    • Sink input (PNP, sinking input)
    • Input delay 0.05..20 ms
    • Channel diagnostics for: wire break at input, encoder power supply short-circuit
    • 0.25 ms isochronous mode
    • Prioritized startup
    • MSI, MRP, S2 redundancy
    • I&M0...3
    • Multi-fieldbus
    • PN IO, Ethernet IP, Modbus TCP
    • Degree of protection IP67 / IP69K
Additional Information

Support

Technical Data

Manuals / Links





Thông số kỹ thuật
FEATUREVALUE
Suitable for safety functionsfalse
Rail mounting possibletrue
Permitted voltage at input-30 V
Radio standard WLAN 802.11false
Radio standard GSMfalse
Supporting protocol for SafetyBUS pfalse
Height200 mm
Supporting protocol for PROFINET CBAfalse
Digital inputs configurabletrue
Permitted voltage at input30 V
Appendant operation agent (Ex ib)false
Number of HW-interfaces other0
IO link masterfalse
Radio standard UMTSfalse
Supporting protocol for other bus systemsfalse
Supply voltage DC28.8 V
Supporting protocol for TCP/IPtrue
System accessorytrue
Supporting protocol for Data-Highwayfalse
Number of HW-interfaces serial TTY0
Number of HW-interfaces industrial Ethernet0
Supporting protocol for EtherNet/IPtrue
Appendant operation agent (Ex ia)false
Supply voltage DC20.4 V
Wall mounting/direct mountingtrue
Supporting protocol for PROFINET IOtrue
Number of HW-interfaces RS-4220
Rack-assembly possiblefalse
Supporting protocol for SERCOSfalse
Supporting protocol for Modbustrue
Supporting protocol for ASIfalse
Number of digital outputs0
Number of HW-interfaces RS-2320
Supporting protocol for LONfalse
Supporting protocol for SUCONETfalse
Front built-in possibletrue
Supporting protocol for DeviceNet Safetyfalse
Number of digital inputs16
Time delay at signal change0.05 ms
Supporting protocol for Foundation Fieldbusfalse
Number of HW-interfaces parallel0
Supporting protocol for CANfalse
Depth48 mm
Type of voltage (input voltage)DC
Supporting protocol for PROFIsafefalse
Input current at signal 12.4 mA
Supporting protocol for DeviceNetfalse
Width45 mm
Supporting protocol for KNXfalse
Voltage type (supply voltage)DC
Supporting protocol for INTERBUS-Safetyfalse
Time delay at signal change20 ms
Number of HW-interfaces wireless0
Fieldbus connection over separate bus coupler possiblefalse
Supporting protocol for AS-Interface Safety at Workfalse
Number of HW-interfaces USB0
Number of HW-interfaces RS-4850
Supporting protocol for INTERBUSfalse
Radio standard Bluetoothfalse
Radio standard GPRSfalse
With optical interfacefalse
Supporting protocol for PROFIBUSfalse
Number of interfaces PROFINET1
