Material ID: 6ES7142-4BD00-0AA0

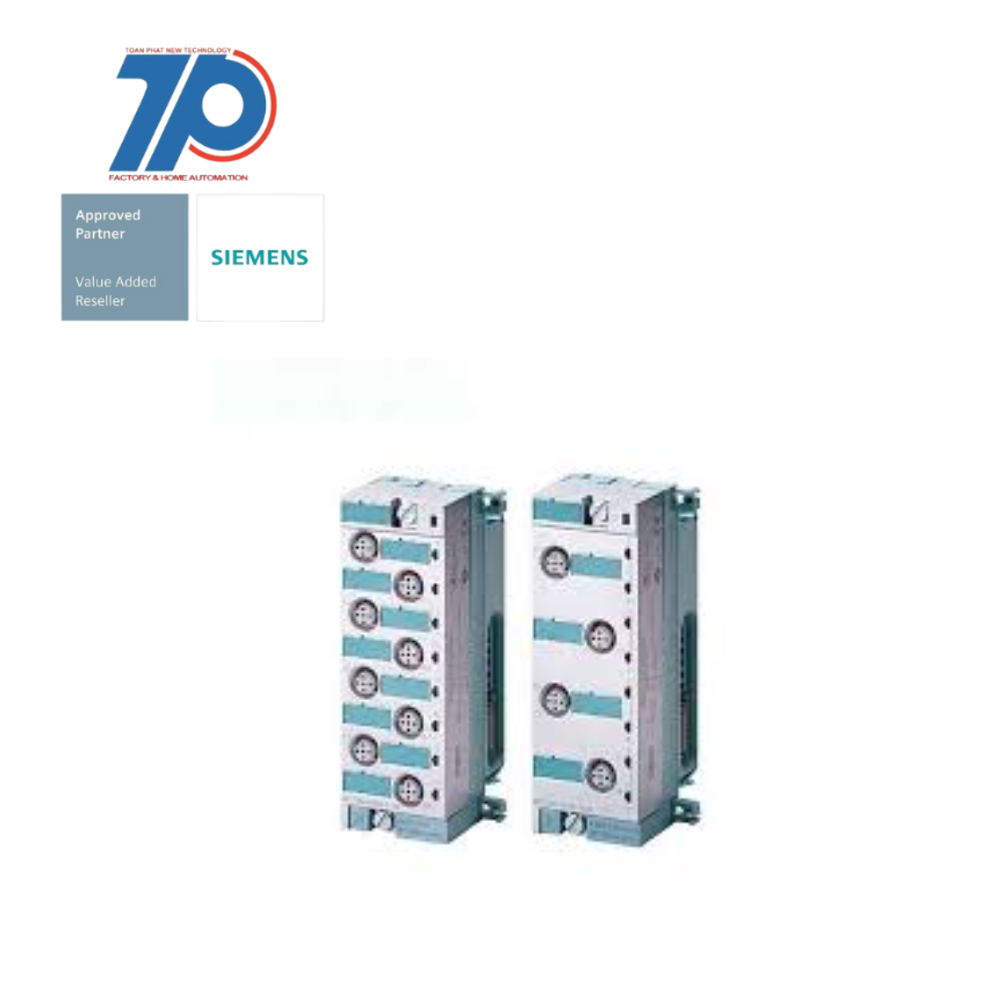

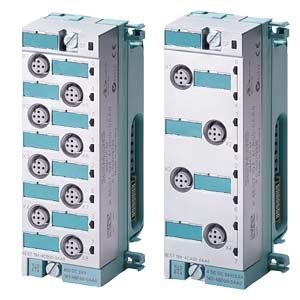

SIMATIC DP, electronic module for ET 200 PRO, 4 DO 24 V DC, 2.0A

The SIMATIC DP electronic module for ET 200 PRO is a versatile I/O system with a comprehensive range of modules. It is designed to be modular, rugged, and space-saving, allowing for direct installation on the machine without the need for a control cabinet.

Technical Features:

Commercial Benefits:

The SIMATIC ET 200pro system offers a flexible and quick response to varied automation requirements. It features an extensive and innovative range of modules, making it simple to install and space-saving. The system also provides extensive and precise diagnostics functions in its High Feature modules, minimizing plant downtimes. Hot swapping enables easy replacement of electronic modules without shutting down the plant, ensuring continuous operation. The rugged construction of the ET 200pro system makes it suitable for high mechanical loads. Siemens, with its continuous quality management, offers a reliable and high-quality complete solution.

Module Range:

The ET 200pro system provides a wide range of modules, including various digital and analog input and output modules with different characteristics. Fail-safe modules for applications up to SIL 3 / PLe are also available. Integrated solutions for motor control, such as motor starters and frequency converters, are offered, including fail-safe variants. The portfolio is further complemented by an IO-Link master and a module for connecting RFID component devices via the RS 232 / 422 interface.

    • 4 digital outputs
    • 24 V DC voltage
    • 2.0A current
    • Module diagnostics
    • Included bus module
    • Connection module IO 6ES7194-4..00-0AA0 (order separately)
Additional Information

Support

Technical Data

Manuals / Links







Thông số kỹ thuật
FEATUREVALUE
Supporting protocol for Data-Highwayfalse
Short-circuit protection, outputs availabletrue
Supporting protocol for other bus systemsfalse
Supporting protocol for AS-Interface Safety at Workfalse
Radio standard GSMfalse
Radio standard UMTSfalse
Supporting protocol for PROFINET CBAfalse
Voltage type (supply voltage)DC
Supporting protocol for INTERBUS-Safetyfalse
Number of HW-interfaces serial TTY0
Width45 mm
Supporting protocol for SafetyBUS pfalse
Type of output voltageDC
Supporting protocol for SERCOSfalse
Number of HW-interfaces parallel0
Supporting protocol for Modbusfalse
Number of interfaces PROFINET0
Appendant operation agent (Ex ib)false
Supporting protocol for DeviceNet Safetyfalse
Supporting protocol for TCP/IPfalse
IO link masterfalse
Supporting protocol for PROFIsafefalse
SIL according to IEC 615082
Depth35 mm
Digital outputs configurabletrue
Radio standard WLAN 802.11false
Supporting protocol for KNXfalse
Fieldbus connection over separate bus coupler possibletrue
Output current2 A
Supporting protocol for DeviceNetfalse
Number of HW-interfaces industrial Ethernet0
Number of HW-interfaces RS-2320
Supply voltage DC20.4 V
With optical interfacefalse
Height130 mm
Supply voltage DC28.8 V
Supporting protocol for EtherNet/IPfalse
Number of HW-interfaces RS-4850
Appendant operation agent (Ex ia)false
Rail mounting possibletrue
Radio standard Bluetoothfalse
Supporting protocol for PROFINET IOfalse
Number of HW-interfaces USB0
Number of HW-interfaces RS-4220
Front built-in possibletrue
Supporting protocol for CANfalse
Number of digital outputs4
Supporting protocol for ASIfalse
Number of digital inputs0
Permitted voltage at output0 V
Permitted voltage at output28.8 V
System accessorytrue
Supporting protocol for Foundation Fieldbusfalse
Suitable for safety functionsfalse
Rack-assembly possiblefalse
Number of HW-interfaces other0
Supporting protocol for SUCONETfalse
Radio standard GPRSfalse
Supporting protocol for PROFIBUSfalse
Supporting protocol for INTERBUSfalse
Supporting protocol for LONfalse
Wall mounting/direct mountingtrue
Number of HW-interfaces wireless0
