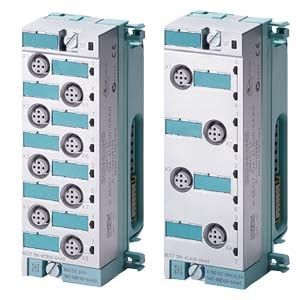

Material ID: 6ES7142-4BD00-0AB0

SIMATIC DP, Electronic modules for ET 200 PRO 4 DO 24 V DC, 2.0A High Feature, Channel diagnostics

SIMATIC ET 200pro is a modular, rugged and versatile I/O system with degree of protection IP65/67. It offers a comprehensive range of modules and is designed for space-saving and direct installation on the machine, eliminating the need for a control cabinet.

Technical Features:

Commercial Benefits:

The SIMATIC ET 200pro system provides integrated solutions for motor control, fail-safe applications, and connectivity options for RFID component devices. It offers a wide range of modules to meet various automation needs.

    • Modular and versatile I/O system
    • Degree of protection IP65/67
    • Comprehensive range of modules
    • Space-saving and simple to install
    • Extensive and precise diagnostics functions in High Feature modules
    • Hot swapping for module replacement without plant shutdown
    • Rugged construction for high mechanical loads
    • Wide range of modules including digital, analog, and fail-safe modules

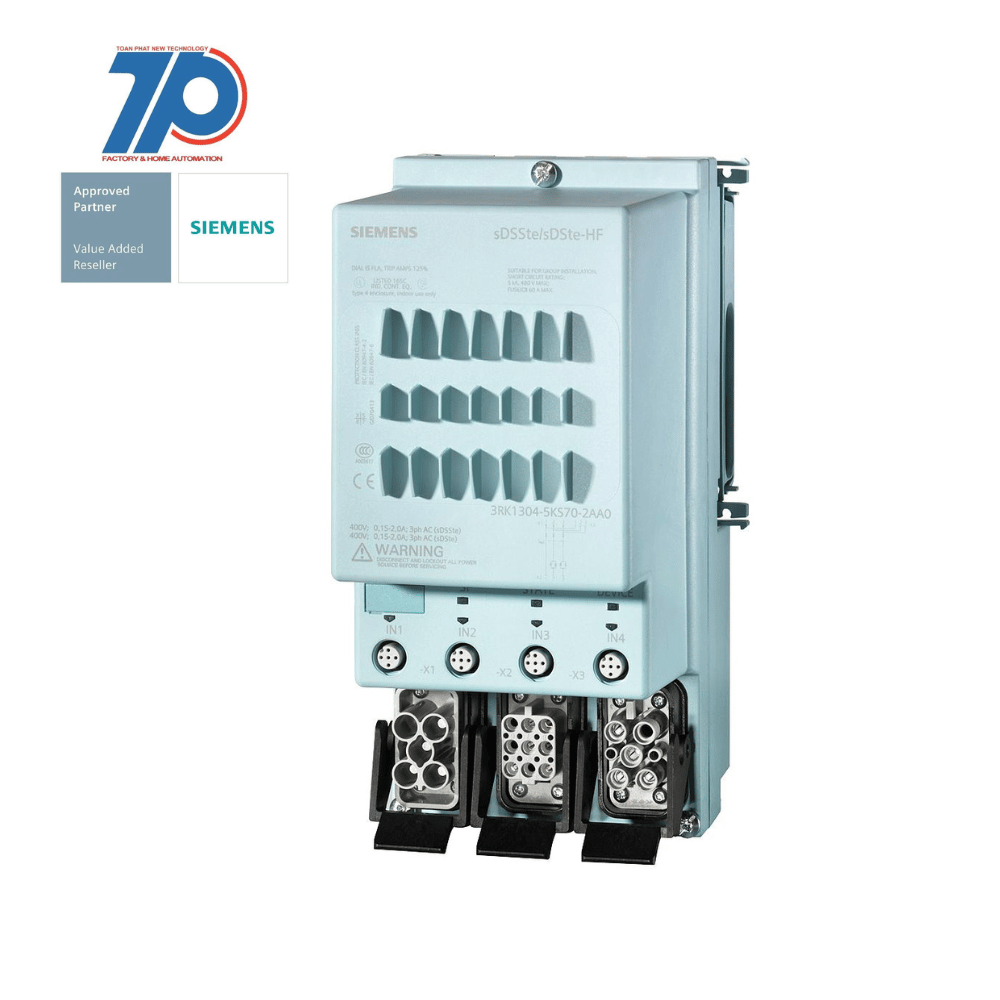

    • Motor control solutions with motor starters and frequency converters
    • IO-Link master and module for connecting RFID component devices
    • Flexible and quick response to automation requirements
    • Minimized plant downtimes
    • High-quality and flexible complete solution
    • Set new market standards
    • Reliable partner with continuous quality management
Additional Information

Support

Technical Data

Manuals / Links







Thông số kỹ thuật
FEATUREVALUE
Radio standard UMTSfalse
Number of digital inputs0
Supporting protocol for PROFINET CBAfalse
Supply voltage DC28.8 V
Supporting protocol for INTERBUS-Safetyfalse
Voltage type (supply voltage)DC
Radio standard Bluetoothfalse
Number of digital outputs4
Supporting protocol for other bus systemsfalse
Supporting protocol for PROFIsafefalse
System accessorytrue
Supporting protocol for ASIfalse
Rack-assembly possiblefalse
Fieldbus connection over separate bus coupler possibletrue
Number of HW-interfaces USB0
Supporting protocol for Data-Highwayfalse
SIL according to IEC 615082
Suitable for safety functionsfalse
Radio standard GSMfalse
Supporting protocol for DeviceNet Safetyfalse
Number of HW-interfaces RS-4220
Supporting protocol for CANfalse
Supporting protocol for TCP/IPfalse
Supporting protocol for DeviceNetfalse
Supporting protocol for Foundation Fieldbusfalse
Depth35 mm
Radio standard WLAN 802.11false
Short-circuit protection, outputs availabletrue
Number of HW-interfaces parallel0
Number of interfaces PROFINET0
Number of HW-interfaces wireless0
Digital outputs configurabletrue
Supporting protocol for Modbusfalse
Appendant operation agent (Ex ib)false
Number of HW-interfaces other0
Radio standard GPRSfalse
Supporting protocol for SUCONETfalse
Output current2 A
Supporting protocol for INTERBUSfalse
Supporting protocol for LONfalse
Rail mounting possibletrue
Supporting protocol for EtherNet/IPfalse
Appendant operation agent (Ex ia)false
Type of output voltageDC
Number of HW-interfaces serial TTY0
Wall mounting/direct mountingtrue
Width45 mm
Supporting protocol for KNXfalse
Supply voltage DC20.4 V
Front built-in possibletrue
Number of HW-interfaces RS-4850
Height130 mm
Number of HW-interfaces industrial Ethernet0
Supporting protocol for PROFIBUSfalse
With optical interfacefalse
IO link masterfalse
Supporting protocol for PROFINET IOfalse
Permitted voltage at output0 V
Supporting protocol for SERCOSfalse
Permitted voltage at output28.8 V
Supporting protocol for AS-Interface Safety at Workfalse
Supporting protocol for SafetyBUS pfalse
Number of HW-interfaces RS-2320
