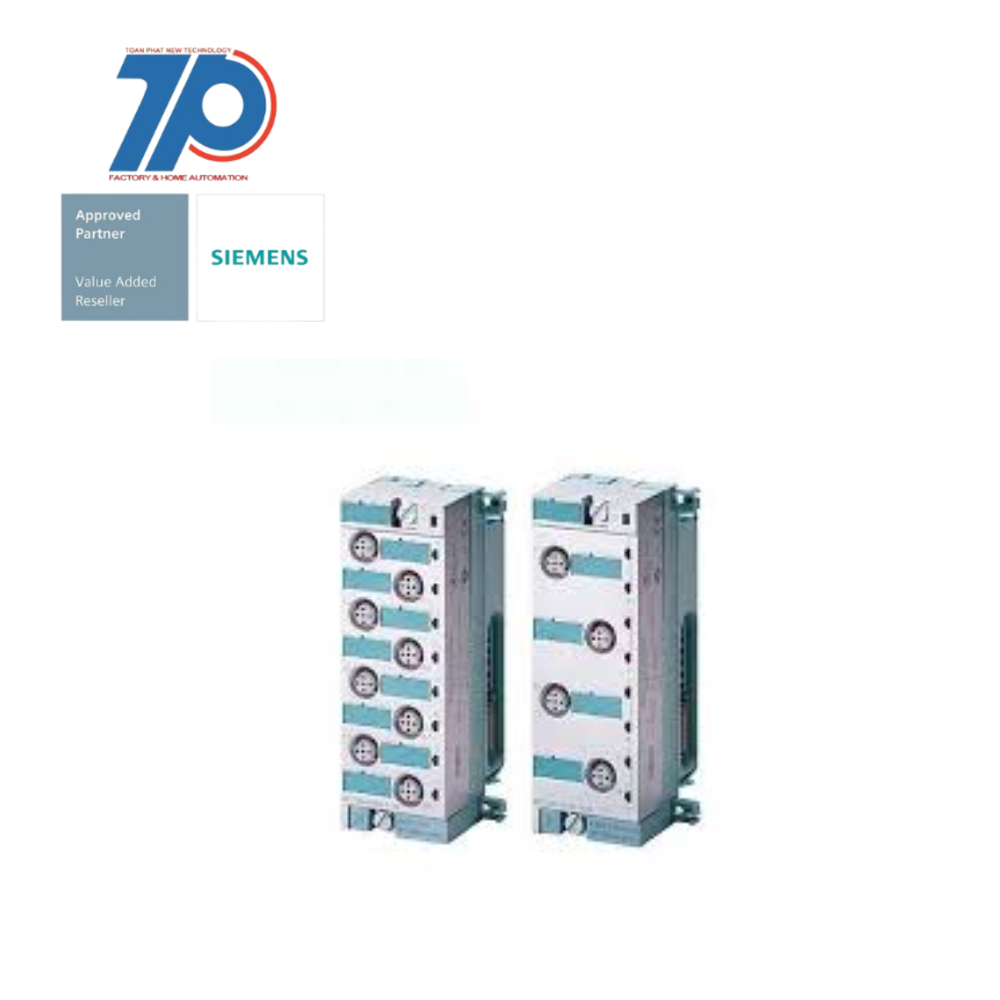

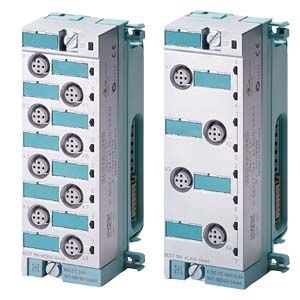

Material ID: 6ES7142-4BF00-0AA0

SIMATIC DP, Electronic modules for ET 200 PRO 8 DO 24 V DC, 0.5 A Module diagnostics

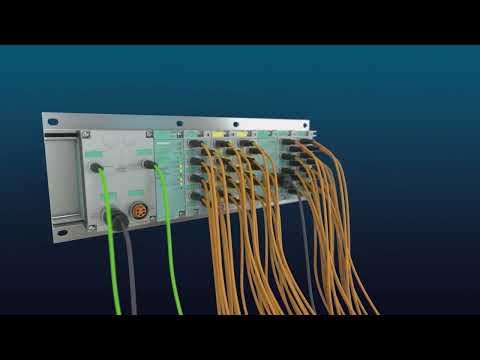

SIMATIC ET 200pro is a modular, rugged and versatile I/O system with degree of protection IP65/67. It offers a comprehensive range of modules and is designed for space-saving and direct installation on the machine, eliminating the need for a control cabinet.

Features:

Benefits:

With SIMATIC ET 200pro, Siemens offers a versatile and reliable I/O system that meets the demands of various automation applications.

    • Modular Design: The ET 200pro system allows for flexible and quick adaptation to varied automation requirements.
    • Extensive Module Range: The system offers a perse range of modules to meet different needs.
    • Simple Installation: The space-saving design of the system makes it easy to install.
    • Precise Diagnostics: The High Feature modules of SIMATIC ET 200pro provide extensive and precise diagnostics functions, minimizing plant downtimes.
    • Hot Swapping: Electronic modules can be replaced without shutting down the plant, ensuring continuous operation.
    • Rugged Construction: The system is designed to withstand high mechanical loads.
    • Quality Management: Continuous quality management ensures high-quality and reliable products.
    • Space-Saving: The compact design of SIMATIC ET 200pro saves valuable space.
    • Flexible: The modular system allows for easy adaptation to changing automation requirements.
    • Minimized Downtimes: Precise diagnostics functions and hot swapping capability reduce plant downtimes.
    • High-Quality: Siemens provides a high-quality and reliable complete solution.
    • Wide Range of Modules: The system offers a wide range of modules, including digital and analog input/output modules, fail-safe modules, motor control solutions, and RFID component devices.
Additional Information

Support

Technical Data

Manuals / Links





Thông số kỹ thuật
FEATUREVALUE
Fieldbus connection over separate bus coupler possibletrue
Number of HW-interfaces RS-2320
Short-circuit protection, outputs availabletrue
Wall mounting/direct mountingtrue
Number of digital outputs8
Supporting protocol for INTERBUSfalse
Supporting protocol for DeviceNet Safetyfalse
Supporting protocol for other bus systemsfalse
Radio standard UMTSfalse
Supporting protocol for AS-Interface Safety at Workfalse
Suitable for safety functionsfalse
Radio standard GSMfalse
Supporting protocol for Data-Highwayfalse
SIL according to IEC 615082
Depth35 mm
Supporting protocol for SERCOSfalse
Digital outputs configurabletrue
Appendant operation agent (Ex ib)false
Supply voltage DC20.4 V
Supporting protocol for TCP/IPfalse
Supporting protocol for PROFINET CBAfalse
Supporting protocol for LONfalse
Number of interfaces PROFINET0
IO link masterfalse
Supporting protocol for INTERBUS-Safetyfalse
Voltage type (supply voltage)DC
Type of output voltageDC
Number of HW-interfaces serial TTY0
Supporting protocol for PROFIsafefalse
Supporting protocol for SafetyBUS pfalse
Number of HW-interfaces industrial Ethernet0
Number of HW-interfaces other0
Output current0.5 A
Supporting protocol for PROFIBUSfalse
Radio standard Bluetoothfalse
Supporting protocol for SUCONETfalse
Supporting protocol for PROFINET IOfalse
Radio standard GPRSfalse
Number of HW-interfaces RS-4220
Radio standard WLAN 802.11false
Supporting protocol for ASIfalse
Permitted voltage at output0 V
Supporting protocol for CANfalse
System accessorytrue
With optical interfacefalse
Rack-assembly possiblefalse
Supporting protocol for DeviceNetfalse
Supporting protocol for EtherNet/IPfalse
Appendant operation agent (Ex ia)false
Width45 mm
Rail mounting possibletrue
Number of HW-interfaces wireless0
Supporting protocol for KNXfalse
Front built-in possibletrue
Height130 mm
Number of HW-interfaces USB0
Supply voltage DC28.8 V
Permitted voltage at output28.8 V
Number of HW-interfaces RS-4850
Supporting protocol for Modbusfalse
Number of HW-interfaces parallel0
Number of digital inputs0
Supporting protocol for Foundation Fieldbusfalse
