Material ID: 6ES7142-5AF00-0BL0

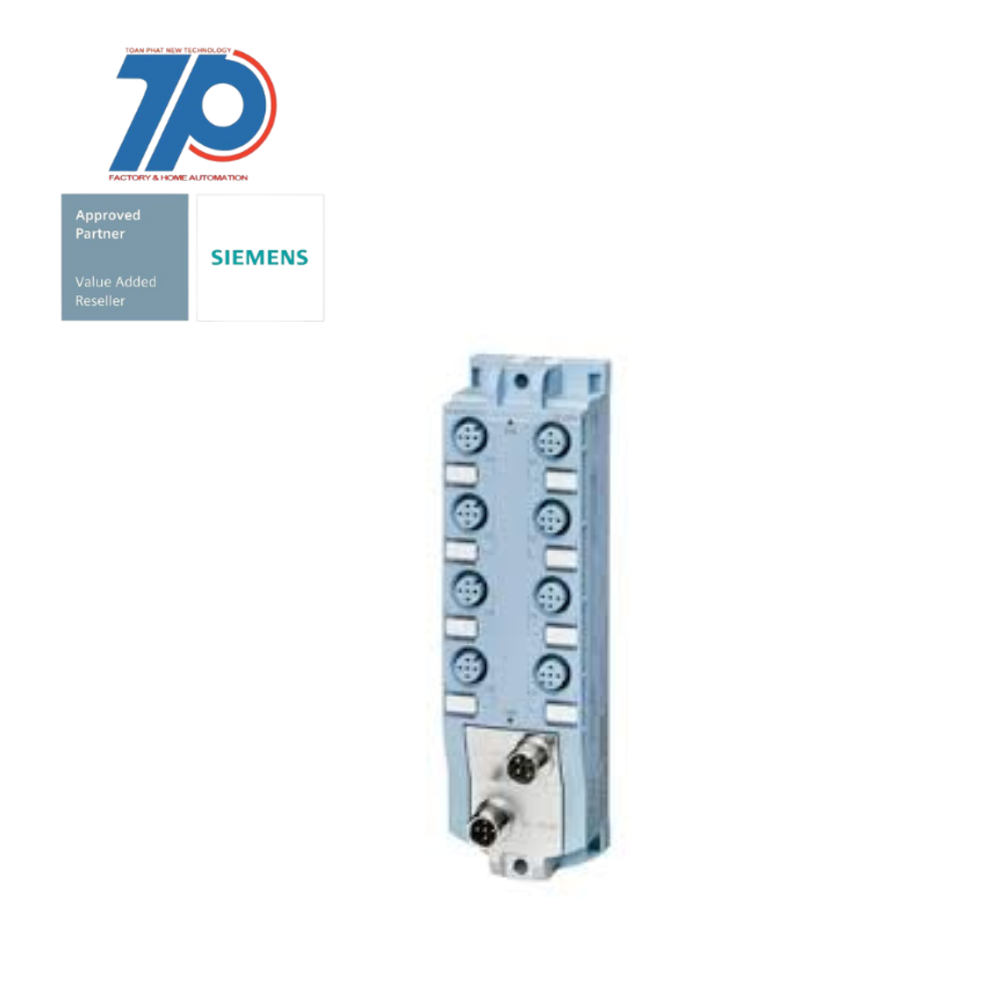

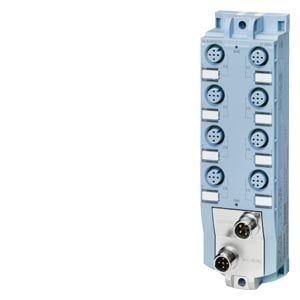

SIMATIC ET 200AL, IO-Link, DQ 8x 24 V DC/2 A, 8x M12, Degree of protection IP67

SIMATIC ET 200AL is a modular, distributed I/O system with compact I/O modules in IP65/67. It offers a space-saving solution for your needs. With a width of only 30 mm and a weight of 145 g, the ET 200AL can be easily mounted on any machine or assembly line in any position.

The rugged housing of the ET 200AL is splashproof, oil-tight, and dust-tight, allowing it to be used in temperatures ranging from -25 °C to +55 °C.

Configuring the SIMATIC ET 200AL is hassle-free and fast. The CAx-compatible labeling of all interfaces via the TIA Portal simplifies the process. The unique color-coded identification system ensures easy cable assignment and simple wiring.

Siemens guarantees a future-proof investment by including innovative and long-life automation products. By using tomorrow's technologies today, Siemens is redefining market standards.

The IO-Link Hubs in ET 200AL design combine the ruggedness and simplicity of installation of the ET 200AL with the advantages of the IO-Link standard. This includes the possibility of assembly in star form and the optimum degree of diagnostics.

    Additional Information

    Support

    Technical Data

    Manuals / Links







    Thông số kỹ thuật
    FEATUREVALUE
    Number of HW-interfaces serial TTY0
    Supply voltage DC30 V
    Supporting protocol for AS-Interface Safety at Workfalse
    Short-circuit protection, outputs availabletrue
    Digital outputs configurabletrue
    Radio standard GPRSfalse
    Number of digital inputs0
    Supporting protocol for DeviceNet Safetyfalse
    Supporting protocol for SERCOSfalse
    Width45 mm
    Wall mounting/direct mountingtrue
    Number of HW-interfaces RS-4850
    Appendant operation agent (Ex ib)false
    Number of HW-interfaces parallel0
    Supporting protocol for TCP/IPfalse
    Number of HW-interfaces RS-4220
    Number of digital outputs8
    Number of interfaces PROFINET0
    Suitable for safety functionsfalse
    Radio standard GSMfalse
    Front built-in possibletrue
    Radio standard WLAN 802.11false
    IO link masterfalse
    Supporting protocol for Modbusfalse
    Voltage type (supply voltage)DC
    Supporting protocol for INTERBUS-Safetyfalse
    Fieldbus connection over separate bus coupler possibletrue
    Type of output voltageDC
    Supporting protocol for PROFIBUSfalse
    With optical interfacefalse
    Permitted voltage at output28.8 V
    Supporting protocol for ASIfalse
    Rack-assembly possiblefalse
    Appendant operation agent (Ex ia)false
    Number of HW-interfaces USB0
    Supporting protocol for Data-Highwayfalse
    Radio standard UMTSfalse
    Height159 mm
    Supporting protocol for LONfalse
    Supporting protocol for PROFIsafefalse
    Number of HW-interfaces industrial Ethernet0
    Number of HW-interfaces RS-2320
    Supporting protocol for SafetyBUS pfalse
    Supporting protocol for PROFINET CBAfalse
    Radio standard Bluetoothfalse
    Supporting protocol for SUCONETfalse
    Permitted voltage at output0 V
    Supporting protocol for CANfalse
    Supporting protocol for Foundation Fieldbusfalse
    Rail mounting possibletrue
    System accessorytrue
    Supporting protocol for DeviceNetfalse
    Supporting protocol for PROFINET IOfalse
    Supporting protocol for EtherNet/IPfalse
    Supporting protocol for other bus systemsfalse
    Supporting protocol for INTERBUSfalse
    Supply voltage DC18 V
    Supporting protocol for KNXfalse
    Number of HW-interfaces other0
    Number of HW-interfaces wireless0
    Depth45 mm
