Material ID: 6ES7142-6BF00-0AB0SIMATIC DP, ET 200ECO PN, 8 DO 24 V DC/1.3 A; 4xM12

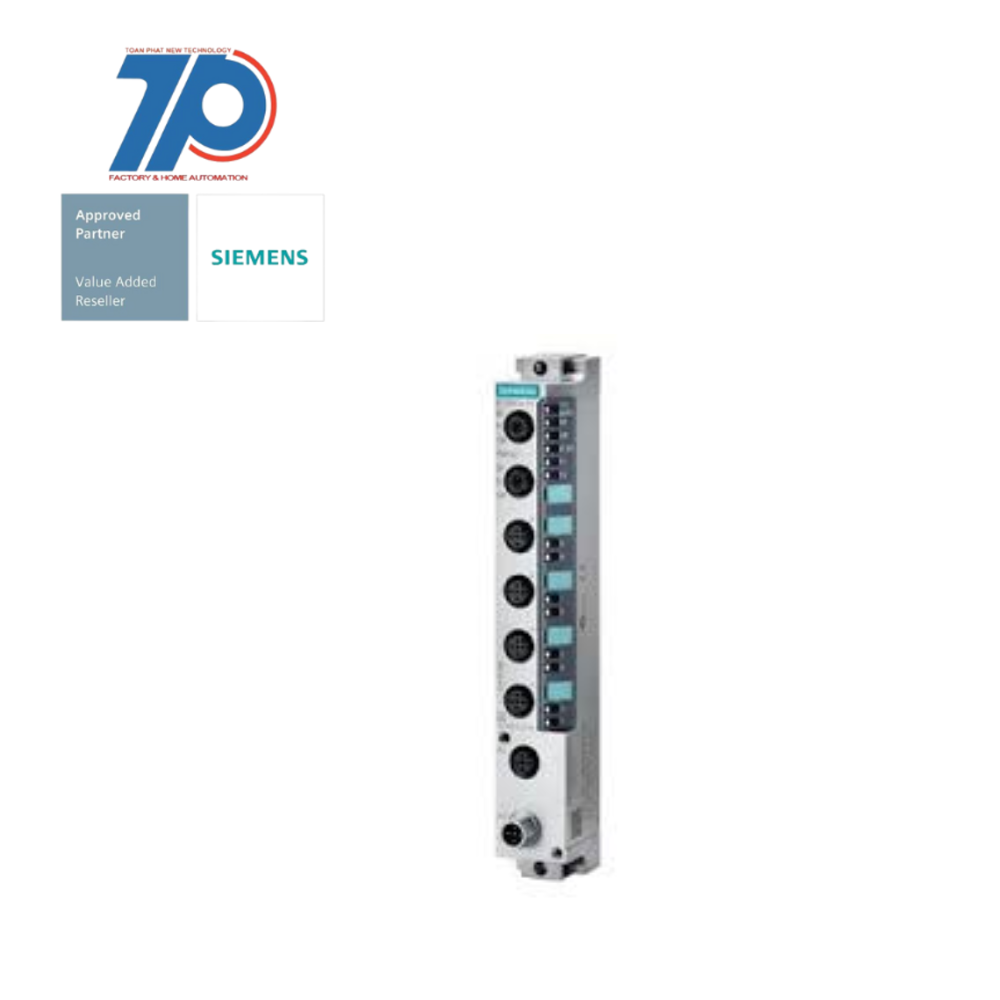

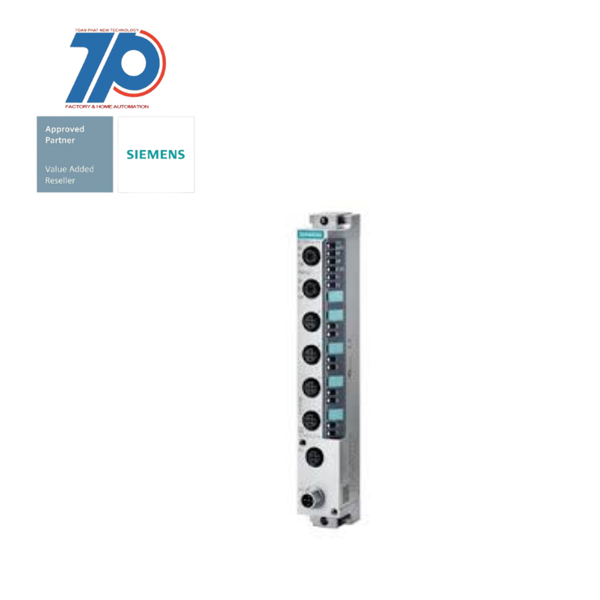

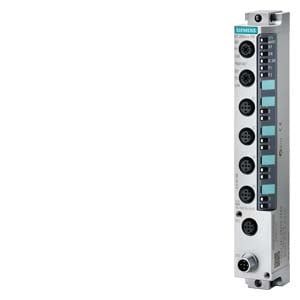

SIMATIC DP, ET 200ECO PN, 8 DO 24 V DC/1.3 A; 4xM12

Technical Features:

Commercial Benefits:

Siemens guarantees future-oriented and innovative solutions that help you to move into new business segments with key technologies that have been projected into the future with ET 200 products.

In addition to digital and analog input and output modules with various characteristics (incl. current, voltage, temperature and resistance measurements), the range of products also encompasses the IO-Link master and a fail-safe module for connecting sensors and actuators up to SIL 3/PLe. If need be, the outputs of the standard modules can also be practically disconnected in a fail-safe manner up to SIL 2.

    • Compact block I/O system
    • PROFINET connection
    • Degree of protection IP65/67
    • Space-saving and future-oriented solution
    • Easy installation and commissioning
    • Rugged die-cast zinc housing
    • Temperature range: -40 °C to +60 °C
    • Maximum resistance to vibration, dust, oil, and humidity
    • Integrated 2-port switches
    • M12-L coded power connectors for simplified power supply
    • Flexible configuration
    • Integrated into line topologies
    • Supports various input and output modules
    • IO-Link master and fail-safe module available
    • Outputs can be disconnected in a fail-safe manner up to SIL 2
    • Sets new market standards
    • Requires minimal installation effort
    • Ideal protection in challenging ambient conditions
    • Enables longer cable lengths in the field
    • Future-oriented and innovative solutions
    • Can be used in new business segments
    • Supports key technologies
    • Compatible with ET 200 products
Additional Information

Support

Technical Data

Manuals / Links





Thông số kỹ thuật
FEATUREVALUE
Wall mounting/direct mountingtrue
Type of output voltageDC
Supporting protocol for SERCOSfalse
Output current1.3 A
Number of HW-interfaces serial TTY0
Supporting protocol for Data-Highwayfalse
Radio standard UMTSfalse
Voltage type (supply voltage)DC
Supporting protocol for INTERBUS-Safetyfalse
Short-circuit protection, outputs availabletrue
Supporting protocol for EtherNet/IPfalse
Supporting protocol for PROFINET CBAfalse
Number of HW-interfaces RS-4220
Supporting protocol for PROFINET IOtrue
Supporting protocol for DeviceNetfalse
Supporting protocol for TCP/IPfalse
Appendant operation agent (Ex ia)false
Number of HW-interfaces USB0
Number of HW-interfaces industrial Ethernet0
Supporting protocol for PROFIsafefalse
Height200 mm
Rail mounting possibletrue
Radio standard GSMfalse
Width30 mm
Digital outputs configurabletrue
Supporting protocol for other bus systemsfalse
Permitted voltage at output0 V
Number of HW-interfaces other0
Supporting protocol for SafetyBUS pfalse
Appendant operation agent (Ex ib)false
Suitable for safety functionsfalse
Radio standard WLAN 802.11false
Supporting protocol for INTERBUSfalse
Number of HW-interfaces RS-4850
Radio standard Bluetoothfalse
Number of HW-interfaces wireless0
Supporting protocol for Modbusfalse
Supporting protocol for KNXfalse
Supply voltage DC20.4 V
Fieldbus connection over separate bus coupler possiblefalse
Supporting protocol for AS-Interface Safety at Workfalse
Number of HW-interfaces parallel0
Depth49 mm
Number of interfaces PROFINET1
Supporting protocol for Foundation Fieldbusfalse
Supporting protocol for DeviceNet Safetyfalse
Supporting protocol for CANfalse
Front built-in possibletrue
Number of digital outputs8
System accessorytrue
IO link masterfalse
Supporting protocol for PROFIBUSfalse
With optical interfacefalse
Supporting protocol for LONfalse
Permitted voltage at output28.8 V
Radio standard GPRSfalse
Number of HW-interfaces RS-2320
Supporting protocol for SUCONETfalse
Supply voltage DC28.8 V
Rack-assembly possiblefalse
Supporting protocol for ASIfalse
Number of digital inputs0
