Material ID: 6ES7142-6BG00-0BB0

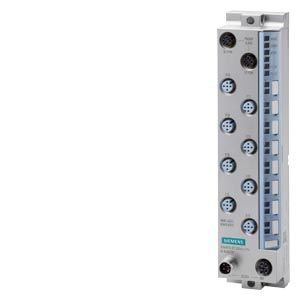

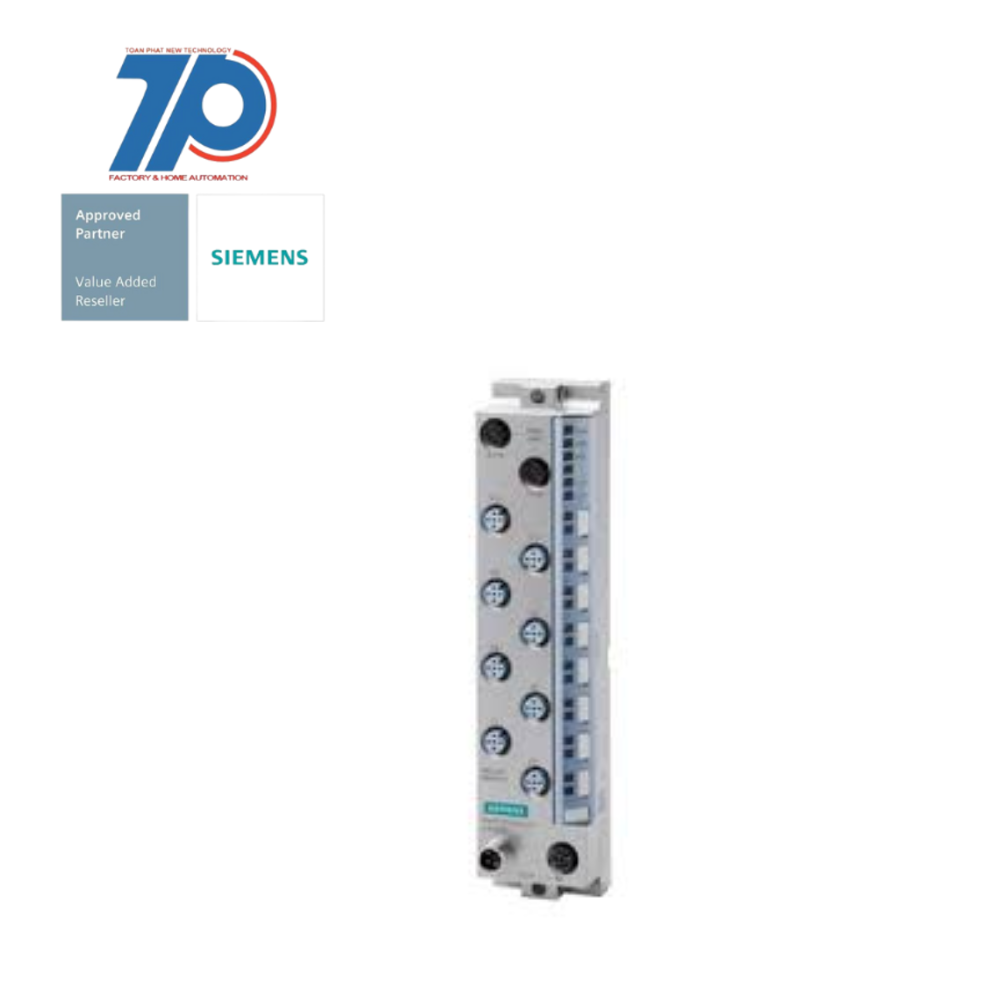

SIMATIC ET 200eco PN
Technical Features:
Commercial Benefits:
The SIMATIC ET 200eco PN is a compact block I/O system with a PROFINET connection and a degree of protection IP65/67. It is a space-saving and future-oriented solution that sets new market standards and requires very little installation effort. The block I/Os can be quickly and flexibly installed and commissioned in any position. The rugged die-cast zinc housing provides ideal protection in challenging ambient conditions and allows the I/O system to be used in temperatures ranging from -40 °C to +60 °C. The system is highly resistant to vibration, dust, oil, and humidity.
The SIMATIC ET 200eco PN offers a future-oriented and innovative complete solution that can be flexibly configured thanks to the integrated 2-port switches. It can be easily integrated into line topologies in a plant. The M12-L coded power connectors simplify the power supply concept and enable longer cable lengths in the field without additional power supply cables.
Siemens guarantees future-oriented and innovative solutions that help you move into new business segments with key technologies projected into the future with ET 200 products.
In addition to digital and analog input and output modules with various characteristics (including current, voltage, temperature, and resistance measurements), the range of products also includes the IO-Link master and a fail-safe module for connecting sensors and actuators up to SIL 3/PLe. The outputs of the standard modules can also be practically disconnected in a fail-safe manner up to SIL 2.
- DQ 8x 24 V DC/0.5 A
- M12-L, 8x M12

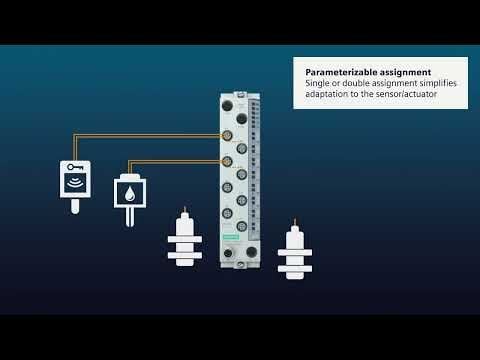

- Single and double assignment
- Source output (PNP, switching to P potential)
- Substitute value output
- Channel diagnostics for wire break and short-circuit at the output
- Shared device with 2 controllers
- 0.25 ms isochronous mode
- Prioritized startup
- MSO, MRP, S2 redundancy
- I&M0...3
- Multi-fieldbus
- PN IO, Ethernet IP, Modbus TCP
- Degree of protection IP67 / IP69K
Additional Information
Support | Technical Data | Manuals / Links |
Thông số kỹ thuật
| FEATURE | VALUE |
| Radio standard UMTS | false |
| Wall mounting/direct mounting | true |
| Supporting protocol for PROFINET CBA | false |
| Supporting protocol for LON | false |
| Supporting protocol for PROFIsafe | false |
| Permitted voltage at output | 0 V |
| Width | 45 mm |
| Supporting protocol for INTERBUS | false |
| Supporting protocol for PROFIBUS | false |
| Supply voltage DC | 20.4 V |
| Number of HW-interfaces industrial Ethernet | 0 |
| Number of HW-interfaces RS-232 | 0 |
| Output current | 0.5 A |
| Supporting protocol for DeviceNet | false |
| Radio standard Bluetooth | false |
| Supporting protocol for DeviceNet Safety | false |
| IO link master | false |
| Appendant operation agent (Ex ia) | false |
| Number of interfaces PROFINET | 1 |
| Depth | 48 mm |
| Time delay at signal change | 0.05 ms |
| Number of digital outputs | 8 |
| Supply voltage DC | 28.8 V |
| Supporting protocol for SUCONET | false |
| Appendant operation agent (Ex ib) | false |
| Number of HW-interfaces other | 0 |
| Supporting protocol for other bus systems | false |
| Number of digital inputs | 0 |
| Supporting protocol for KNX | false |
| Suitable for safety functions | false |
| System accessory | true |
| Number of HW-interfaces wireless | 0 |
| Type of output voltage | DC |
| Digital outputs configurable | true |
| Number of HW-interfaces RS-485 | 0 |
| Front built-in possible | true |
| Radio standard WLAN 802.11 | false |
| Supporting protocol for SERCOS | false |
| Time delay at signal change | 0.1 ms |
| With optical interface | false |
| Radio standard GPRS | false |
| Supporting protocol for TCP/IP | true |
| Supporting protocol for PROFINET IO | true |
| Supporting protocol for CAN | false |
| Number of HW-interfaces RS-422 | 0 |
| Supporting protocol for Foundation Fieldbus | false |
| Supporting protocol for EtherNet/IP | true |
| Number of HW-interfaces parallel | 0 |
| Supporting protocol for ASI | false |
| Supporting protocol for Modbus | true |
| Fieldbus connection over separate bus coupler possible | false |
| Supporting protocol for AS-Interface Safety at Work | false |
| Rack-assembly possible | false |
| Number of HW-interfaces USB | 0 |
| Radio standard GSM | false |
| Rail mounting possible | true |
| Permitted voltage at output | 28.8 V |
| Supporting protocol for Data-Highway | false |
| Supporting protocol for SafetyBUS p | false |
| Short-circuit protection, outputs available | true |
| Voltage type (supply voltage) | DC |
| Supporting protocol for INTERBUS-Safety | false |
| Height | 200 mm |
| Number of HW-interfaces serial TTY | 0 |
