Material ID: 6ES7142-6BR00-0AB0Product Description

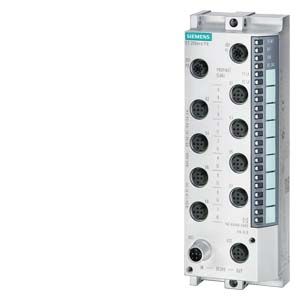

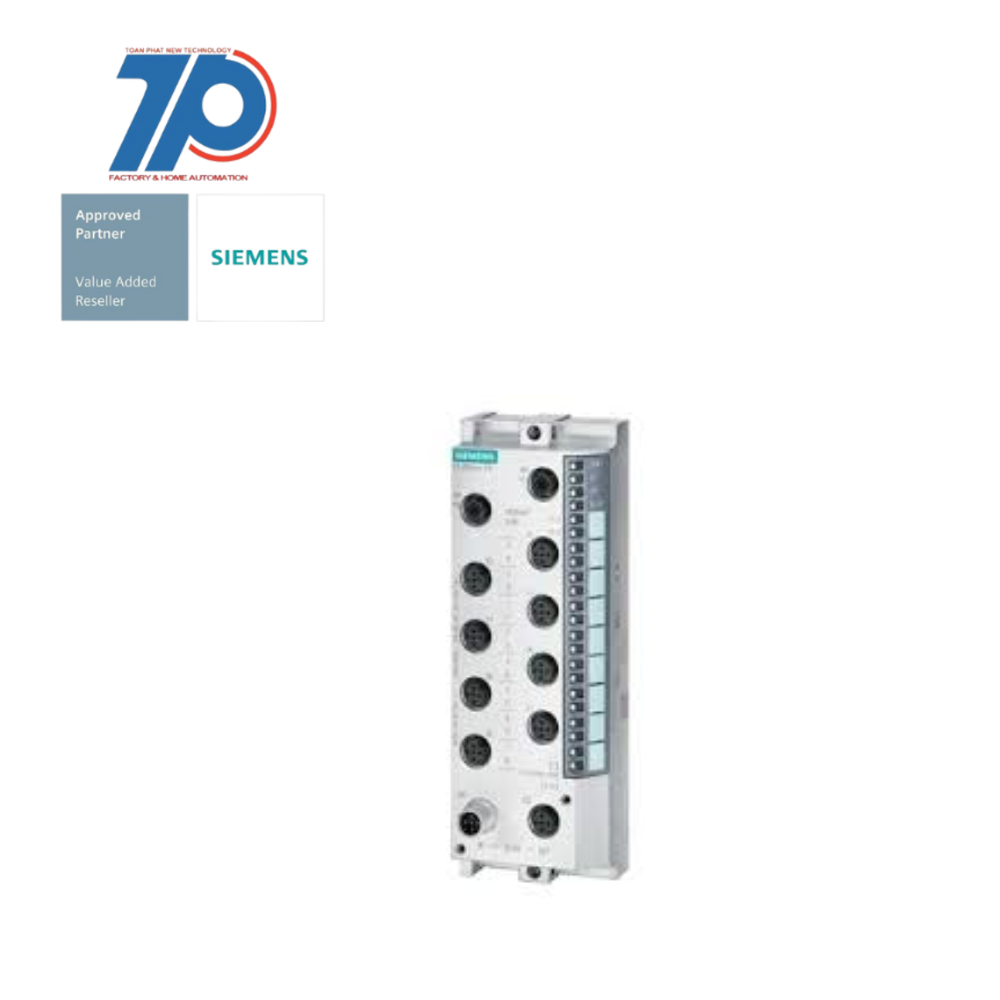

SIMATIC DP, ET 200ECO PN, 8 DO 24 V DC/2 A; 8xM12, Degree of protection IP67
Technical Features:
Commercial Benefits:
Siemens guarantees future-oriented and innovative solutions that help you to move into new business segments with key technologies that have been projected into the future with ET 200 products.
- Compact block I/O system
- PROFINET connection
- Degree of protection IP65/67
- Space-saving and future-oriented solution
- Easy installation and commissioning
- Rugged die-cast zinc housing
- Temperature range: -40 °C to +60 °C
- Maximum resistance to vibration, dust, oil, and humidity
- Integrated 2-port switches
- M12-L coded power connectors
- Flexible configuration
- Integrated into line topologies
- IO-Link master
- Fail-safe module for connecting sensors and actuators up to SIL 3/PLe
- Quick and flexible installation
- Low installation effort
- Ideal protection in challenging ambient conditions
- Longer cable lengths in the field without additional power supply cables
- Future-oriented and innovative solution
- Enables entry into new business segments
- Practical fail-safe disconnection of outputs up to SIL 2
Additional Information
Support | Technical Data | Manuals / Links |
Thông số kỹ thuật
| FEATURE | VALUE |
| With optical interface | false |
| Supporting protocol for SUCONET | false |
| Supporting protocol for TCP/IP | false |
| Number of interfaces PROFINET | 1 |
| Type of output voltage | DC |
| Supply voltage DC | 28.8 V |
| Number of digital inputs | 0 |
| Supporting protocol for Foundation Fieldbus | false |
| Supporting protocol for Modbus | false |
| Width | 60 mm |
| Number of HW-interfaces wireless | 0 |
| Number of HW-interfaces RS-485 | 0 |
| Radio standard GSM | false |
| Radio standard WLAN 802.11 | false |
| Supporting protocol for SERCOS | false |
| IO link master | false |
| System accessory | true |
| Number of digital outputs | 8 |
| Front built-in possible | true |
| Supporting protocol for other bus systems | false |
| Number of HW-interfaces RS-232 | 0 |
| Digital outputs configurable | true |
| Supporting protocol for EtherNet/IP | false |
| Supporting protocol for LON | false |
| Radio standard GPRS | false |
| Supporting protocol for DeviceNet | false |
| Supporting protocol for KNX | false |
| Appendant operation agent (Ex ia) | false |
| Supply voltage DC | 20.4 V |
| Number of HW-interfaces serial TTY | 0 |
| Supporting protocol for CAN | false |
| Number of HW-interfaces industrial Ethernet | 0 |
| Number of HW-interfaces USB | 0 |
| Supporting protocol for INTERBUS | false |
| Radio standard Bluetooth | false |
| Supporting protocol for SafetyBUS p | false |
| Radio standard UMTS | false |
| Height | 175 mm |
| Permitted voltage at output | 28.8 V |
| Supporting protocol for PROFIBUS | false |
| Number of HW-interfaces RS-422 | 0 |
| Rack-assembly possible | false |
| Supporting protocol for PROFINET CBA | false |
| Depth | 49 mm |
| Number of HW-interfaces parallel | 0 |
| Supporting protocol for AS-Interface Safety at Work | false |
| Fieldbus connection over separate bus coupler possible | false |
| Supporting protocol for Data-Highway | false |
| Wall mounting/direct mounting | true |
| Supporting protocol for PROFIsafe | false |
| Appendant operation agent (Ex ib) | false |
| Output current | 2 A |
| Number of HW-interfaces other | 0 |
| Supporting protocol for DeviceNet Safety | false |
| Permitted voltage at output | 0 V |
| Voltage type (supply voltage) | DC |
| Supporting protocol for INTERBUS-Safety | false |
| Supporting protocol for PROFINET IO | true |
| Supporting protocol for ASI | false |
| Suitable for safety functions | false |
| Rail mounting possible | true |
| Short-circuit protection, outputs available | true |
