Material ID: 6ES7142-6BR00-0BB0

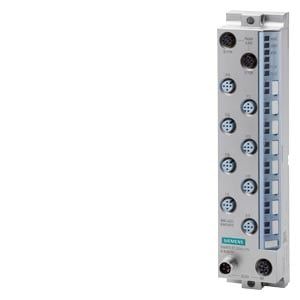

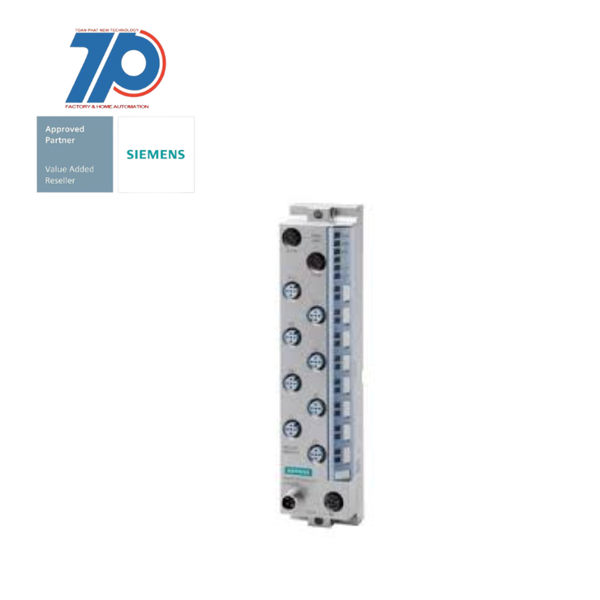

SIMATIC ET 200eco PN

The SIMATIC ET 200eco PN is a compact block I/O system with a PROFINET connection. It offers a high degree of protection with IP65/67 rating, making it a space-saving and future-oriented solution. The system sets new market standards and requires minimal installation effort.

Technical Features:

Commercial Benefits:

The SIMATIC ET 200eco PN offers several commercial benefits:

With the SIMATIC ET 200eco PN, you have a future-oriented and innovative complete solution that offers both advanced technical features and commercial benefits.

    • DQ 8x 24 V DC/2A: 8 digital outputs with 24 V DC and 2A current
    • M12-L: M12-L coded power connectors for simplified power supply concept

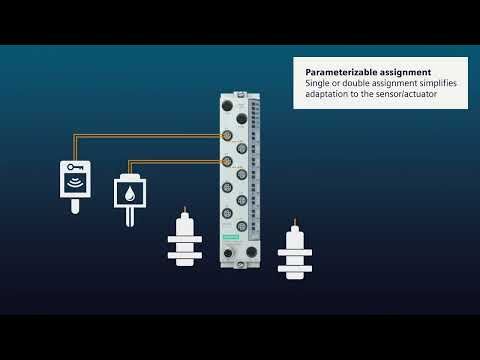

    • 8x M12: 8 M12 connectors for single and double assignment
    • Source Output: PNP switching to P potential
    • Substitute Value Output: Provides substitute value output
    • Channel Diagnostics: Detects wire break and short-circuit at the output
    • Shared Device: Can be shared with 2 controllers
    • 0.25 ms Isochronous Mode: Supports 0.25 ms isochronous mode
    • Prioritized Startup: Supports prioritized startup
    • MSO, MRP, S2 Redundancy: Supports MSO, MRP, and S2 redundancy
    • I&M0...3: Supports I&M0...3
    • Multi-Fieldbus: Supports multi-fieldbus
    • PN IO, Ethernet IP, Modbus TCP: Supports PN IO, Ethernet IP, and Modbus TCP
    • Degree of Protection: IP67 / IP69K
    • Flexible Configuration: The system can be flexibly configured thanks to the integrated 2-port switches.
    • Easy Installation: The block I/Os can be quickly and flexibly installed in any position, directly on-site.
    • Rugged Design: The die-cast zinc housing provides ideal protection in challenging ambient conditions and allows for operation in temperatures ranging from -40 °C to +60 °C.
    • Resistance to Environmental Factors: The system is highly resistant to vibration, dust, oil, and humidity.
    • Extended Cable Lengths: The M12-L coded power connectors enable higher current-carrying capacity, allowing for substantially longer cable lengths in the field without additional power supply cables.
    • Future-Oriented Solution: Siemens guarantees future-oriented and innovative solutions that help businesses move into new segments with key technologies.
    • Expanded Product Range: In addition to digital and analog input and output modules, the range of products includes IO-Link master and a fail-safe module for connecting sensors and actuators up to SIL 3/PLe.
    • Fail-Safe Operation: The outputs of the standard modules can be practically disconnected in a fail-safe manner up to SIL 2.
Additional Information

Support

Technical Data

Manuals / Links







Thông số kỹ thuật
FEATUREVALUE
Supporting protocol for Foundation Fieldbusfalse
Number of HW-interfaces RS-4850
Supporting protocol for PROFIBUSfalse
Supporting protocol for LONfalse
Supporting protocol for INTERBUSfalse
Supporting protocol for KNXfalse
Width45 mm
Fieldbus connection over separate bus coupler possiblefalse
Supporting protocol for AS-Interface Safety at Workfalse
Number of digital outputs8
Supporting protocol for other bus systemsfalse
Supporting protocol for CANfalse
Supporting protocol for TCP/IPtrue
Front built-in possibletrue
Permitted voltage at output28.8 V
Supporting protocol for SERCOSfalse
Radio standard GPRSfalse
Number of HW-interfaces RS-2320
Output current2 A
Number of digital inputs0
Number of HW-interfaces serial TTY0
Supporting protocol for INTERBUS-Safetyfalse
Voltage type (supply voltage)DC
Number of HW-interfaces wireless0
Number of HW-interfaces parallel0
Time delay at signal change0.05 ms
Supporting protocol for SUCONETfalse
Supporting protocol for DeviceNet Safetyfalse
Supply voltage DC28.8 V
Supporting protocol for PROFINET CBAfalse
Rail mounting possibletrue
Digital outputs configurabletrue
Type of output voltageDC
System accessorytrue
Permitted voltage at output0 V
Rack-assembly possiblefalse
Supporting protocol for ASIfalse
Supporting protocol for Modbustrue
Appendant operation agent (Ex ib)false
Radio standard UMTSfalse
Number of HW-interfaces RS-4220
Supporting protocol for PROFINET IOtrue
Radio standard Bluetoothfalse
Number of HW-interfaces other0
Supporting protocol for Data-Highwayfalse
Time delay at signal change0.1 ms
Supporting protocol for DeviceNetfalse
Number of HW-interfaces industrial Ethernet0
Supply voltage DC20.4 V
Supporting protocol for PROFIsafefalse
Wall mounting/direct mountingtrue
Depth48 mm
Supporting protocol for SafetyBUS pfalse
Suitable for safety functionsfalse
Short-circuit protection, outputs availabletrue
Number of interfaces PROFINET1
Appendant operation agent (Ex ia)false
Supporting protocol for EtherNet/IPtrue
Radio standard GSMfalse
Number of HW-interfaces USB0
Height200 mm
IO link masterfalse
With optical interfacefalse
Radio standard WLAN 802.11false
