Material ID: 6ES7143-4BF00-0AA0

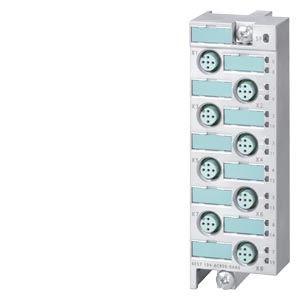

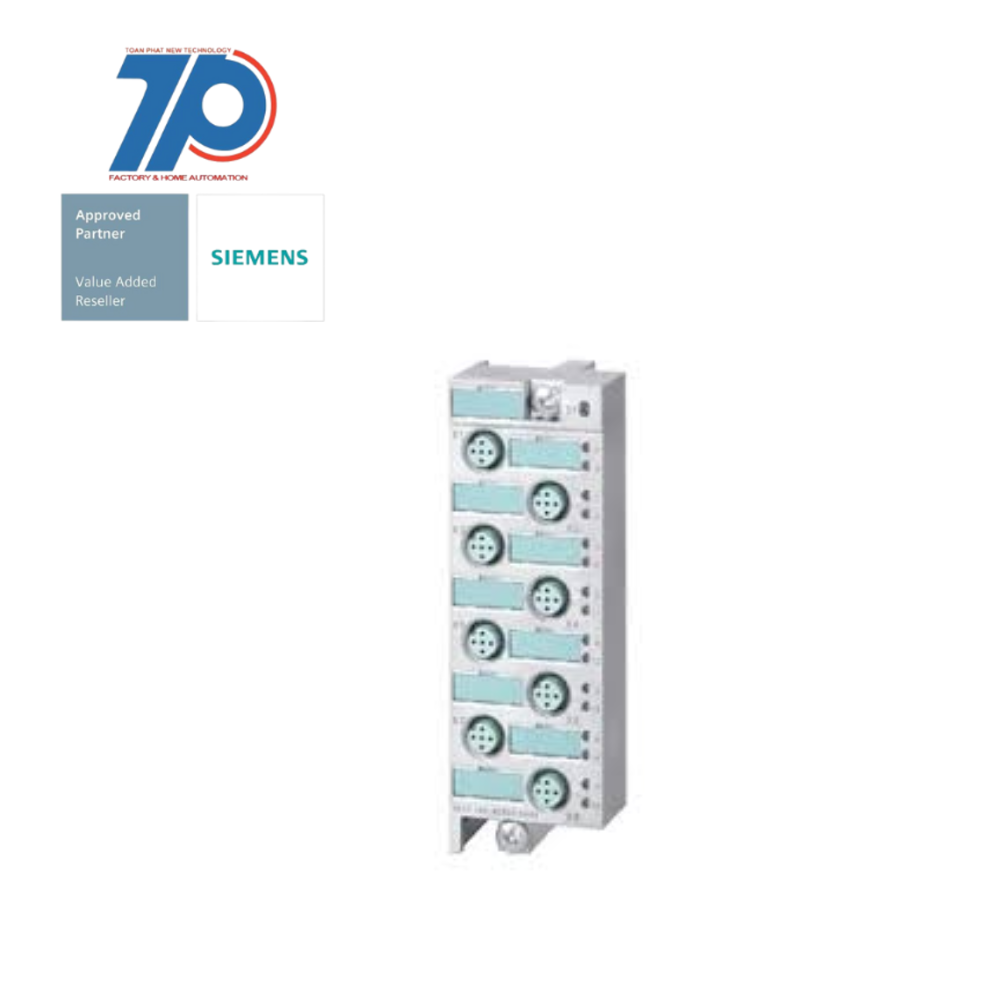

SIMATIC DP, Electronic modules for ET 200 PRO 4 DIO/4 DO 24 V DC, 0.5A Module diagnostics

SIMATIC DP is a modular, rugged, and versatile I/O system with degree of protection IP65/67. It offers a comprehensive range of modules for varied automation requirements.

Technical Features:

Commercial Benefits:

Siemens offers a high-quality and flexible complete solution that meets the demands of high mechanical loads. The ET 200pro system sets new market standards and ensures reliable performance. The portfolio includes a wide range of modules for various applications.

    • Modular design
    • Direct installation on the machine
    • No control cabinet required
    • Extensive and innovative range of modules
    • Space-saving and simple to install
    • Extensive and precise diagnostics functions in High Feature modules
    • Hot swapping for module replacement without plant shutdown
    • Rugged construction for high mechanical loads
    • Continuous quality management
    • Wide range of modules including digital and analog input/output modules, fail-safe modules, motor starters, frequency converters, IO-Link master, and RFID component devices
    • Space-saving and versatile solution
    • Flexibility and quick response to automation requirements
    • Minimal plant downtimes
    • High-quality and reliable complete solution
    • Integrated motor control solutions
Additional Information

Support

Technical Data

Manuals / Links





Thông số kỹ thuật
FEATUREVALUE
Supporting protocol for PROFIsafefalse
Input current at signal 17 mA
Supporting protocol for Foundation Fieldbusfalse
Supporting protocol for DeviceNetfalse
Time delay at signal change1.2 ms
Number of HW-interfaces RS-4220
Width45 mm
Supporting protocol for CANfalse
Supporting protocol for EtherNet/IPfalse
Supporting protocol for INTERBUS-Safetyfalse
Voltage type (supply voltage)DC
Type of output voltageDC
Supply voltage DC28.8 V
Number of HW-interfaces industrial Ethernet0
Supporting protocol for PROFIBUSfalse
Fieldbus connection over separate bus coupler possibletrue
System accessorytrue
Supporting protocol for SERCOSfalse
Number of HW-interfaces wireless0
Number of HW-interfaces RS-4850
Supporting protocol for Modbusfalse
Rack-assembly possiblefalse
Radio standard GSMfalse
Supporting protocol for AS-Interface Safety at Workfalse
Number of digital outputs8
Supporting protocol for PROFINET IOfalse
Short-circuit protection, outputs availabletrue
Supporting protocol for TCP/IPfalse
IO link masterfalse
Front built-in possibletrue
Number of HW-interfaces serial TTY0
Permitted voltage at input-3 V
Number of HW-interfaces parallel0
Radio standard UMTSfalse
Time delay at signal change4.8 ms
Supporting protocol for KNXfalse
Number of digital inputs4
Supporting protocol for other bus systemsfalse
Height130 mm
Supporting protocol for INTERBUSfalse
Radio standard Bluetoothfalse
Number of HW-interfaces USB0
Supporting protocol for PROFINET CBAfalse
Radio standard WLAN 802.11false
Permitted voltage at input30 V
Appendant operation agent (Ex ib)false
Supporting protocol for Data-Highwayfalse
Depth35 mm
Digital inputs configurabletrue
Number of HW-interfaces RS-2320
Appendant operation agent (Ex ia)false
Supply voltage DC20.4 V
Supporting protocol for LONfalse
With optical interfacefalse
Wall mounting/direct mountingtrue
Number of HW-interfaces other0
Digital outputs configurabletrue
Supporting protocol for SUCONETfalse
Permitted voltage at output0 V
Radio standard GPRSfalse
Permitted voltage at output28.8 V
Supporting protocol for DeviceNet Safetyfalse
Rail mounting possibletrue
Number of interfaces PROFINET0
Supporting protocol for ASIfalse
Type of voltage (input voltage)DC
Output current0.5 A
Suitable for safety functionsfalse
Supporting protocol for SafetyBUS pfalse
