Material ID: 6ES7143-5AF00-0BA0

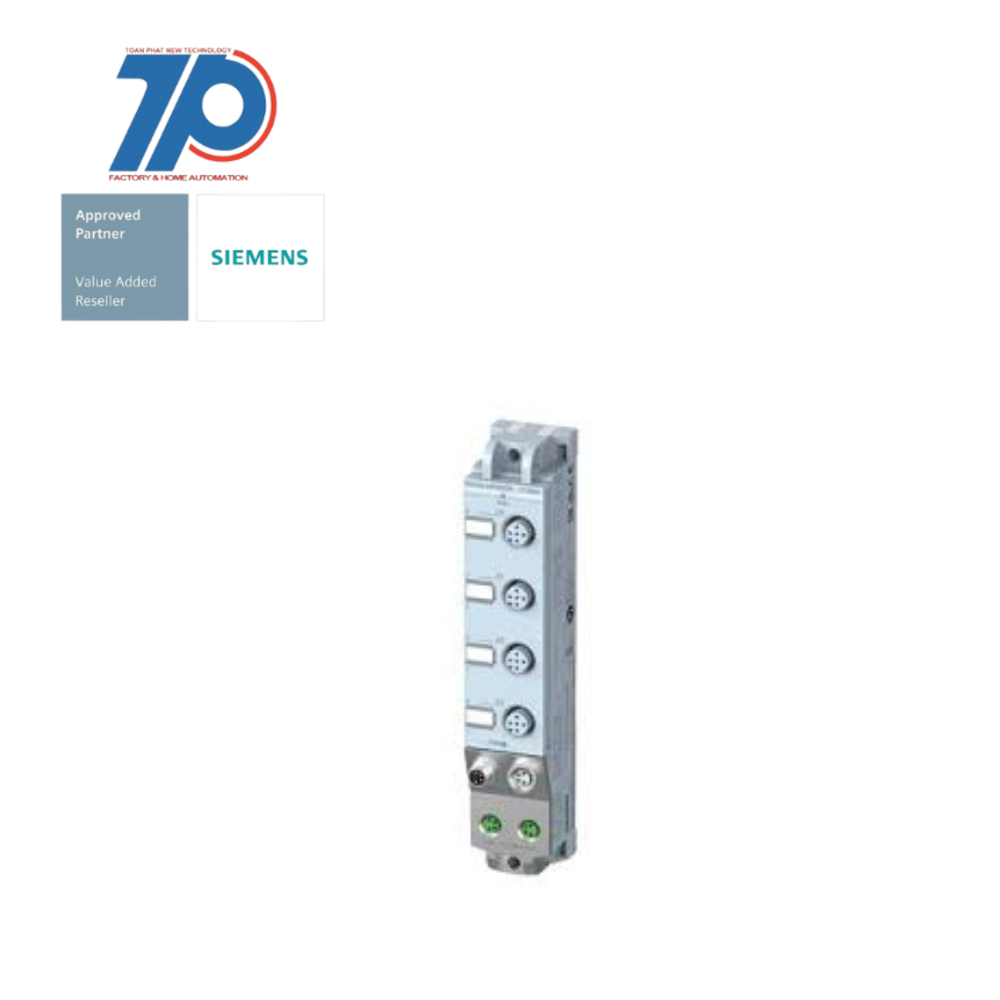

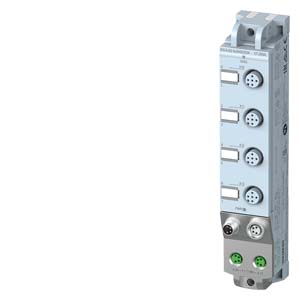

SIMATIC ET 200AL, DIQ 4+DQ 4x 24 V DC/0.5 A, 4x M12, Degree of protection IP67

SIMATIC ET 200AL is a modular, distributed I/O system with compact I/O modules in IP65/67. It offers a space-saving solution for your needs. With a width of only 30 mm and a weight of 145 g, it can be easily mounted on the machine or assembly line in any position.

The rugged housing of SIMATIC ET 200AL is splashproof, oil-tight, and dust-tight, allowing it to be used in temperatures ranging from -25 °C to +55 °C.

Configuring the SIMATIC ET 200AL is hassle-free and fast. The CAx-compatible labeling of all interfaces via the TIA Portal makes the process uncomplicated. The unique color-coded identification system ensures easy cable assignment and simple wiring.

Siemens guarantees a future-proof investment with innovative and long-life automation products. By using tomorrow's technologies today, Siemens is redefining market standards.

The SIMATIC ET 200AL is available as digital and analog input and output modules, as well as mixed modules (digital). The sensors can be connected using the M8 or M12 connection system. The modules can be optionally connected to PROFINET or PROFIBUS or integrated into SIMATIC ET 200SP.

    Additional Information

    Support

    Technical Data

    Manuals / Links





    Thông số kỹ thuật
    FEATUREVALUE
    Number of HW-interfaces industrial Ethernet0
    Number of HW-interfaces RS-4220
    Radio standard GPRSfalse
    Number of HW-interfaces parallel0
    Supporting protocol for Foundation Fieldbusfalse
    Short-circuit protection, outputs availabletrue
    Radio standard WLAN 802.11false
    Permitted voltage at input30 V
    Number of HW-interfaces USB0
    Fieldbus connection over separate bus coupler possibletrue
    Number of HW-interfaces serial TTY0
    Type of output voltageDC
    Appendant operation agent (Ex ia)false
    System accessorytrue
    Supporting protocol for DeviceNetfalse
    Supporting protocol for TCP/IPfalse
    Radio standard Bluetoothfalse
    Output current0.5 A
    Height159 mm
    Radio standard GSMfalse
    Suitable for safety functionsfalse
    Supporting protocol for Data-Highwayfalse
    Digital inputs configurabletrue
    Supporting protocol for CANfalse
    Appendant operation agent (Ex ib)false
    Supporting protocol for ASIfalse
    Number of interfaces PROFINET0
    Supporting protocol for other bus systemsfalse
    Number of digital inputs4
    Type of voltage (input voltage)DC
    Depth40 mm
    Rack-assembly possiblefalse
    With optical interfacefalse
    Supply voltage DC20.4 V
    Wall mounting/direct mountingtrue
    Permitted voltage at output20.4 V
    Supporting protocol for DeviceNet Safetyfalse
    Number of HW-interfaces RS-2320
    Rail mounting possibletrue
    Supporting protocol for LONfalse
    Supporting protocol for PROFINET CBAfalse
    Input current at signal 13.2 mA
    Supporting protocol for SafetyBUS pfalse
    Supporting protocol for AS-Interface Safety at Workfalse
    Supporting protocol for PROFIsafefalse
    Number of digital outputs8
    Radio standard UMTSfalse
    Supporting protocol for PROFINET IOfalse
    Supporting protocol for SUCONETfalse
    Width30 mm
    Supporting protocol for Modbusfalse
    Digital outputs configurabletrue
    Supporting protocol for SERCOSfalse
    Time delay at signal change1.2 ms
    Number of HW-interfaces RS-4850
    Supporting protocol for INTERBUS-Safetyfalse
    Voltage type (supply voltage)DC
    IO link masterfalse
    Front built-in possibletrue
    Permitted voltage at output28.8 V
    Permitted voltage at input-3 V
    Supply voltage DC28.8 V
    Number of HW-interfaces wireless0
    Supporting protocol for EtherNet/IPfalse
    Time delay at signal change4.8 ms
    Supporting protocol for KNXfalse
    Supporting protocol for INTERBUSfalse
    Supporting protocol for PROFIBUSfalse
    Number of HW-interfaces other0
