Material ID: 6ES7143-5AH00-0BA0

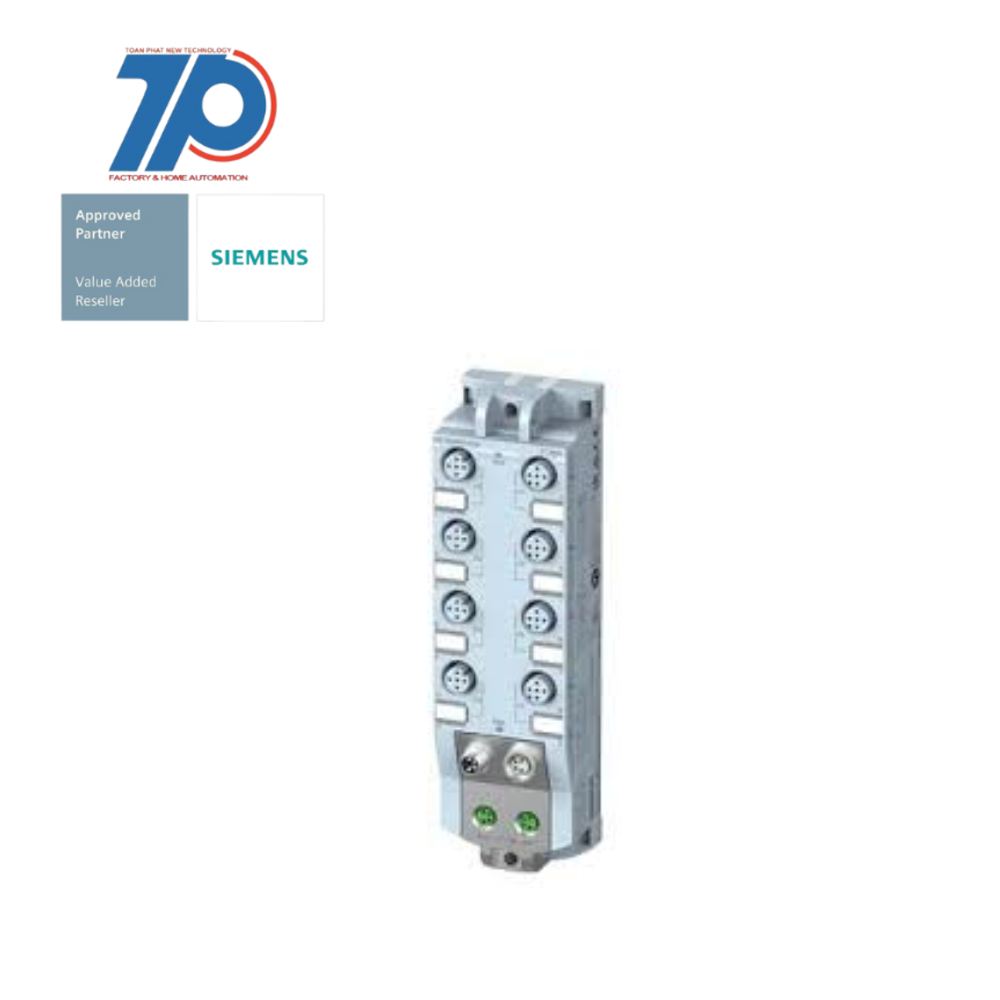

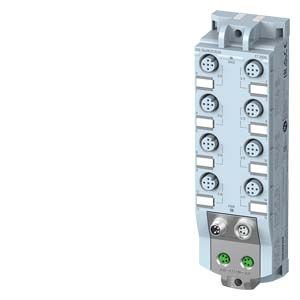

SIMATIC ET 200AL, DIQ 16x24 V DC/0.5 A, 8xM12, Degree of protection IP67

SIMATIC ET 200AL is a modular, distributed I/O system with compact I/O modules in IP65/67. It offers a space-saving solution for your needs. With a width of only 30 mm and a weight of 145 g, SIMATIC ET 200AL can be easily mounted on any machine or assembly line in any position.

The rugged housing of SIMATIC ET 200AL is splashproof, oil-tight, and dust-tight, allowing it to be used in temperatures ranging from -25 °C to +55 °C. Its hassle-free and fast configuration enables immediate operation. The CAx-compatible labeling of all interfaces via the TIA Portal simplifies the configuration process.

The unique color-coded identification system ensures easy cable assignment and simple wiring. Siemens guarantees a future-proof investment by including innovative and long-life automation products. By utilizing tomorrow's technologies today, Siemens is setting new market standards.

The SIMATIC ET 200AL modules are available as digital and analog input and output modules, as well as mixed modules (digital). The sensors are connected using the M8 or M12 connection system. The modules can be optionally connected to PROFINET or PROFIBUS or integrated into SIMATIC ET 200SP.

    Additional Information

    Support

    Technical Data

    Manuals / Links





    Thông số kỹ thuật
    FEATUREVALUE
    Short-circuit protection, outputs availabletrue
    Type of output voltageDC
    Supporting protocol for Modbusfalse
    Radio standard GSMfalse
    Supporting protocol for AS-Interface Safety at Workfalse
    Supporting protocol for other bus systemsfalse
    Digital inputs configurabletrue
    Supply voltage DC20.4 V
    Appendant operation agent (Ex ib)false
    Permitted voltage at output28.8 V
    Number of HW-interfaces parallel0
    Radio standard UMTSfalse
    Supply voltage DC28.8 V
    Supporting protocol for INTERBUSfalse
    Number of digital inputs16
    Number of digital outputs16
    Number of HW-interfaces RS-4220
    Width45 mm
    Voltage type (supply voltage)DC
    Supporting protocol for INTERBUS-Safetyfalse
    Fieldbus connection over separate bus coupler possibletrue
    Permitted voltage at output20.4 V
    Supporting protocol for DeviceNet Safetyfalse
    Number of interfaces PROFINET0
    Supporting protocol for ASIfalse
    Input current at signal 13 mA
    Supporting protocol for SUCONETfalse
    Supporting protocol for PROFIBUSfalse
    With optical interfacefalse
    Wall mounting/direct mountingtrue
    Supporting protocol for Foundation Fieldbusfalse
    System accessorytrue
    Supporting protocol for DeviceNetfalse
    Supporting protocol for CANfalse
    Permitted voltage at input-3 V
    Rack-assembly possiblefalse
    Time delay at signal change20 ms
    Digital outputs configurabletrue
    Supporting protocol for SERCOSfalse
    Number of HW-interfaces wireless0
    Supporting protocol for PROFINET IOfalse
    Supporting protocol for KNXfalse
    Number of HW-interfaces RS-2320
    Appendant operation agent (Ex ia)false
    Supporting protocol for LONfalse
    Number of HW-interfaces USB0
    Supporting protocol for PROFINET CBAfalse
    Radio standard WLAN 802.11false
    Permitted voltage at input30 V
    Time delay at signal change0.05 ms
    Supporting protocol for Data-Highwayfalse
    Radio standard Bluetoothfalse
    Output current0.5 A
    Height159 mm
    Suitable for safety functionsfalse
    Supporting protocol for SafetyBUS pfalse
    Supporting protocol for TCP/IPfalse
    Supporting protocol for PROFIsafefalse
    IO link masterfalse
    Front built-in possibletrue
    Number of HW-interfaces serial TTY0
    Number of HW-interfaces other0
    Type of voltage (input voltage)DC
    Number of HW-interfaces industrial Ethernet0
    Depth40 mm
    Rail mounting possibletrue
    Radio standard GPRSfalse
    Supporting protocol for EtherNet/IPfalse
    Number of HW-interfaces RS-4850
