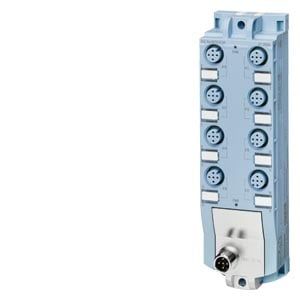

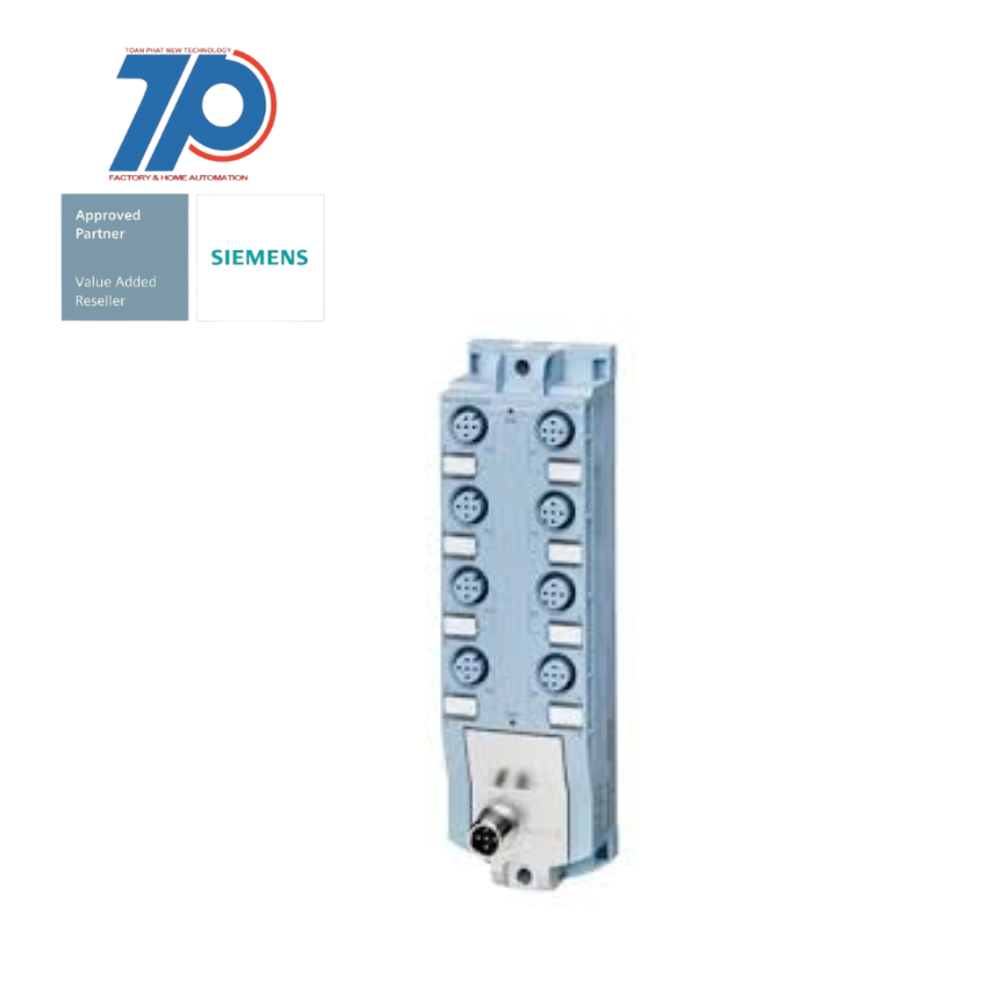

Material ID: 6ES7143-5AH00-0BL0

SIMATIC ET 200AL

SIMATIC ET 200AL is a modular, distributed I/O system with compact I/O modules in IP65/67. It offers a space-saving solution for your automation needs.

Technical Features:

Commercial Benefits:

The SIMATIC ET 200AL is designed to minimize space requirements with its small width of 30 mm and low weight of 145 g. It can be easily mounted on machines or assembly lines in any position. The hassle-free and fast configuration allows for immediate operation. The CAx-compatible labeling of all interfaces via the TIA Portal simplifies the setup process. The unique color-coded identification system ensures easy cable assignment and simple wiring.

Siemens guarantees a future-proof investment by including innovative and long-life automation products. By using tomorrow's technologies today, Siemens is redefining market standards.

The IO-Link Hubs in ET 200AL design combine the ruggedness and simplicity of installation with the advantages of the IO-Link standard. This includes the possibility of assembly in star form and the optimum degree of diagnostics.

    • DIQ 16x24 V DC/0.5 A
    • 8x M12 connectors
    • Degree of protection IP67
    • Operating temperature: -25°C to +55°C
    • Rugged housing: splashproof, oil-tight, and dust-tight
Additional Information

Support

Technical Data

Manuals / Links







Thông số kỹ thuật
FEATUREVALUE
System accessorytrue
Height159 mm
Supporting protocol for PROFINET CBAfalse
Radio standard UMTSfalse
Type of voltage (input voltage)DC
IO link masterfalse
With optical interfacefalse
Supporting protocol for SafetyBUS pfalse
Supporting protocol for AS-Interface Safety at Workfalse
Number of HW-interfaces RS-2320
Number of digital inputs16
Permitted voltage at output28.8 V
Supporting protocol for SERCOSfalse
Time delay at signal change1.2 ms
Supporting protocol for PROFINET IOfalse
Front built-in possibletrue
Supporting protocol for KNXfalse
Width45 mm
Short-circuit protection, outputs availabletrue
Radio standard WLAN 802.11false
Rail mounting possibletrue
Supporting protocol for LONfalse
Supporting protocol for INTERBUSfalse
Supporting protocol for SUCONETfalse
Appendant operation agent (Ex ib)false
Supporting protocol for Modbusfalse
Digital outputs configurabletrue
Permitted voltage at input-3 V
Number of HW-interfaces RS-4850
Supporting protocol for PROFIBUSfalse
Number of HW-interfaces industrial Ethernet0
Supply voltage DC18 V
Wall mounting/direct mountingtrue
Number of HW-interfaces serial TTY0
Supply voltage DC30 V
Type of output voltageDC
Appendant operation agent (Ex ia)false
Supporting protocol for EtherNet/IPfalse
Supporting protocol for Foundation Fieldbusfalse
Supporting protocol for DeviceNetfalse
Supporting protocol for TCP/IPfalse
Supporting protocol for CANfalse
Depth40 mm
Rack-assembly possiblefalse
Number of HW-interfaces RS-4220
Supporting protocol for DeviceNet Safetyfalse
Permitted voltage at output20.4 V
Radio standard GPRSfalse
Number of HW-interfaces other0
Output current0.5 A
Radio standard GSMfalse
Suitable for safety functionsfalse
Supporting protocol for PROFIsafefalse
Permitted voltage at input30 V
Supporting protocol for Data-Highwayfalse
Digital inputs configurabletrue
Number of HW-interfaces USB0
Fieldbus connection over separate bus coupler possibletrue
Time delay at signal change4.8 ms
Number of HW-interfaces wireless0
Number of interfaces PROFINET0
Number of HW-interfaces parallel0
Input current at signal 13 mA
Supporting protocol for ASIfalse
Voltage type (supply voltage)DC
Supporting protocol for INTERBUS-Safetyfalse
Number of digital outputs16
Radio standard Bluetoothfalse
Supporting protocol for other bus systemsfalse
