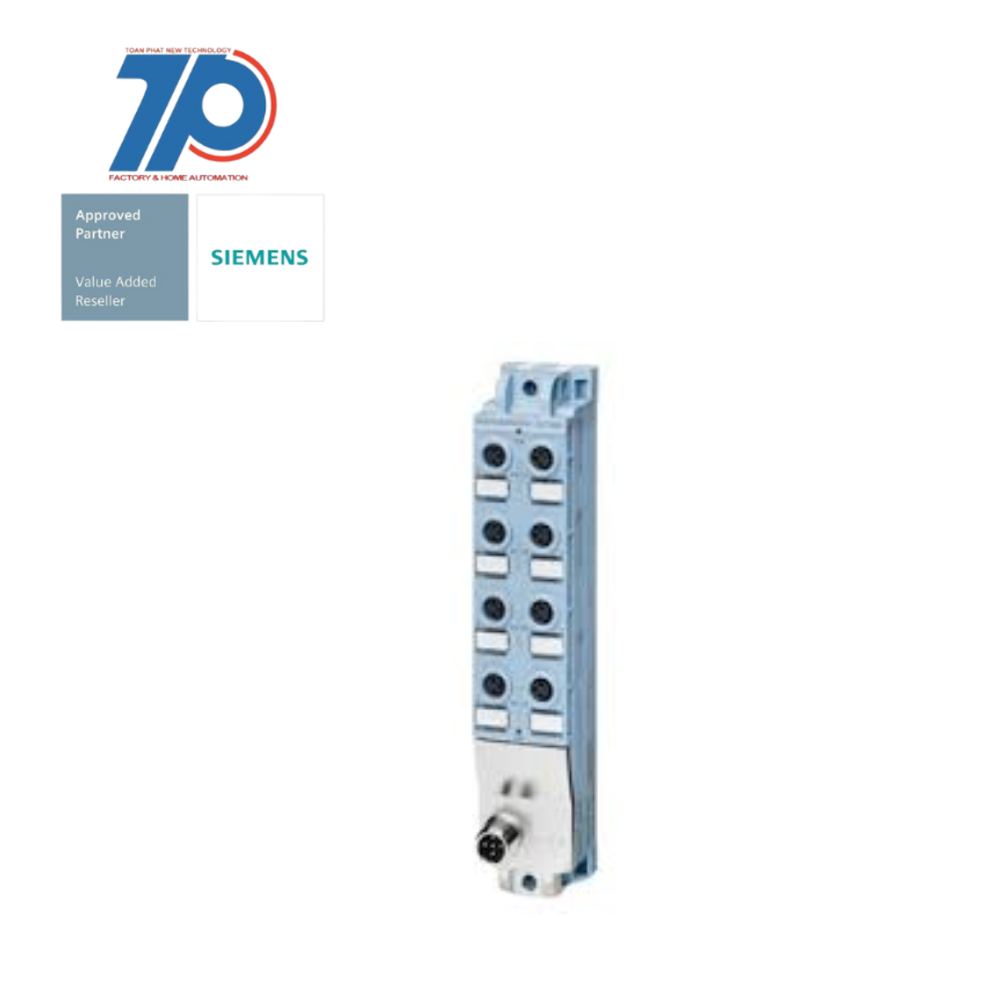

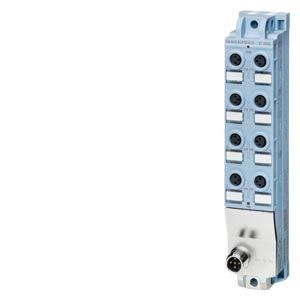

Material ID: 6ES7143-5BF00-0BL0

SIMATIC ET 200AL

Technical Features:

Commercial Benefits:

The SIMATIC ET 200AL is a modular, distributed I/O system with compact I/O modules in IP65/67. It offers a space-saving solution, minimizing space requirements with its small width of 30 mm and low weight of 145 g. The rugged housing is splashproof, oil-tight, and dust-tight, allowing it to be used in temperatures ranging from -25 °C to +55 °C.

The hassle-free and fast configuration of the SIMATIC ET 200AL enables immediate operation. The CAx-compatible labeling of all interfaces via the TIA Portal simplifies the configuration process. The unique color-coded identification system ensures easy cable assignment and simple wiring.

Siemens guarantees a future-proof investment by including innovative and long-life automation products. By utilizing advanced technologies today, Siemens is setting new market standards.

The IO-Link Hubs in ET 200AL design combine the ruggedness and simplicity of installation of the ET 200AL with the advantages of the IO-Link standard. This includes the possibility of assembly in star form and the optimum degree of diagnostics.

    • IO-Link
    • DIQ 4+DQ 4x 24 V DC/0.5 A
    • 8x M8
    • Degree of protection IP67
Additional Information

Support

Technical Data

Manuals / Links







Thông số kỹ thuật
FEATUREVALUE
Number of HW-interfaces industrial Ethernet0
Front built-in possibletrue
Radio standard UMTSfalse
Permitted voltage at output28.8 V
Supporting protocol for PROFIBUSfalse
Number of HW-interfaces USB0
Supporting protocol for AS-Interface Safety at Workfalse
Supporting protocol for PROFINET IOfalse
Number of digital inputs4
Width30 mm
Radio standard GSMfalse
Permitted voltage at input30 V
Supporting protocol for INTERBUSfalse
Radio standard Bluetoothfalse
Output current0.5 A
Digital inputs configurabletrue
Supporting protocol for PROFIsafefalse
Height159 mm
Depth40 mm
Short-circuit protection, outputs availabletrue
Supporting protocol for TCP/IPfalse
Supporting protocol for DeviceNet Safetyfalse
Permitted voltage at output20.4 V
Supporting protocol for ASIfalse
Supporting protocol for SafetyBUS pfalse
Supporting protocol for INTERBUS-Safetyfalse
Voltage type (supply voltage)DC
Number of interfaces PROFINET0
Number of HW-interfaces parallel0
Supporting protocol for other bus systemsfalse
Digital outputs configurabletrue
Supporting protocol for Data-Highwayfalse
Suitable for safety functionsfalse
Radio standard GPRSfalse
Supporting protocol for SUCONETfalse
Appendant operation agent (Ex ib)false
Number of HW-interfaces other0
System accessorytrue
Supporting protocol for PROFINET CBAfalse
Supporting protocol for Foundation Fieldbusfalse
Number of HW-interfaces RS-4220
Rack-assembly possiblefalse
Supply voltage DC30 V
Number of HW-interfaces serial TTY0
Supporting protocol for CANfalse
Rail mounting possibletrue
Type of output voltageDC
Supporting protocol for DeviceNetfalse
Number of HW-interfaces RS-2320
Supporting protocol for KNXfalse
Supporting protocol for EtherNet/IPfalse
Appendant operation agent (Ex ia)false
Supporting protocol for LONfalse
With optical interfacefalse
Wall mounting/direct mountingtrue
Type of voltage (input voltage)DC
Input current at signal 13 mA
Time delay at signal change4.8 ms
Number of HW-interfaces wireless0
Number of HW-interfaces RS-4850
Supporting protocol for SERCOSfalse
Permitted voltage at input-3 V
Time delay at signal change1.2 ms
Fieldbus connection over separate bus coupler possibletrue
Supporting protocol for Modbusfalse
Number of digital outputs8
Radio standard WLAN 802.11false
IO link masterfalse
Supply voltage DC18 V
